Chapter 4 OneGear Standard Plenum
4. Locate the rear inner connecting bracket for connecting to the switch-gear
(81020-999-56) and temporarily fasten in place using M8 hardware
(
Figure 34 ).

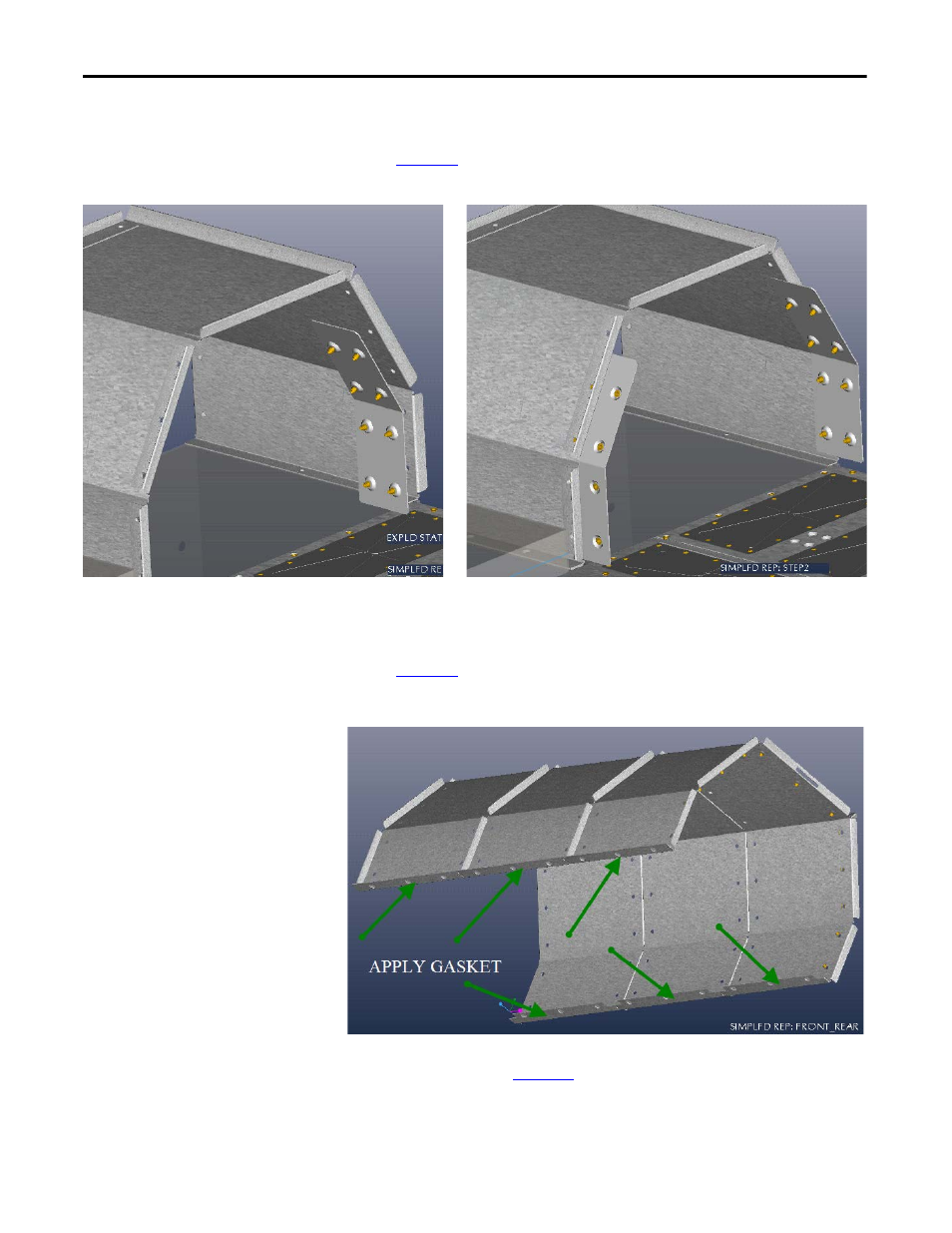

Figure 34 - Attaching from and rear, inner bracket
5. Fasten the front inner connecting bracket for connection to the switchgear
(81020-999-54) temporarily using M8 hardware.
6. Apply gasket to the bottom flange of all front and rear assemblies
( Figure 35 ).
Figure 35 - Gasket location
7. Locate the mounting holes on top of the OneGear unit to mount the front
and rear assembly ( Figure 36 ).
