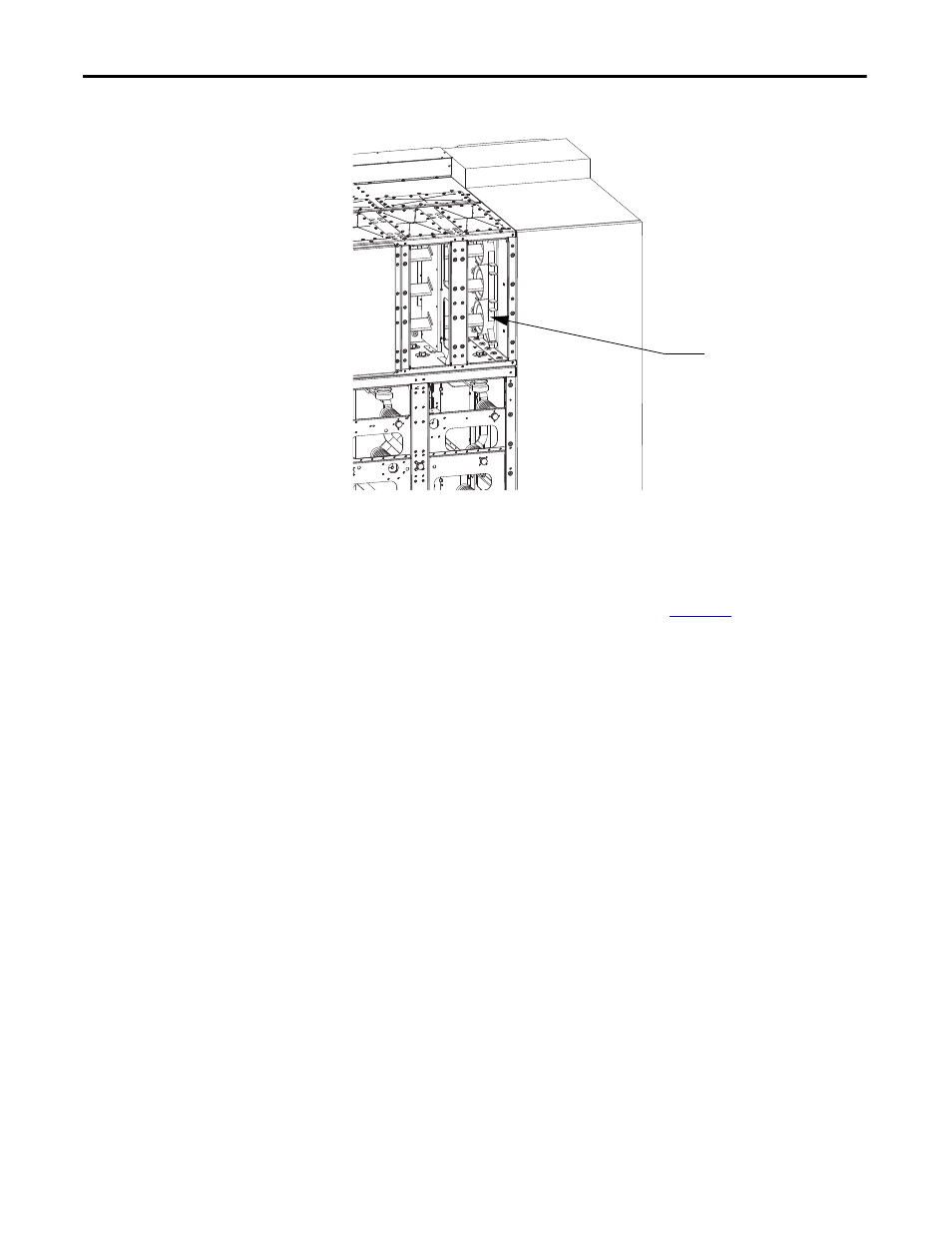

Figure 19 - Installation of Power Bus Bushing
Install Power Bus Bushing Inserts
Partially slide bus through bushing and into the switchgear cabinet. Slide the
supplied bus bushing inserts onto bus as shown in
Figure 20 . If bus boots were
supplied for the connections between the horizontal bus and the switchgear
risers, slide the bus boots caps next to the bushing inserts (refer to manufacturer
documentation for details).
Slide horizontal bus into the switchgear cabinet past the switchgear risers and
close to the side wall opposite the converter section.
Following the steps outlined above, insert the Power Bus bushing inserts and bus
boot caps (if applicable) onto the horizontal bus inside the switch-gear cabinet on
the opposite side of the converter cabinet.
Power Bus Bushing
