Equipment Installation Chapter 3
Installation of Barriers One (1) clear barrier is provided for installation over the top of the bus
connections, as shown in
Figure 26 . Install the barrier onto the rear side of the
bus links within the switchgear cabinet, using the metric nylon screws supplied.
Note the orientation of the barriers as shown below. Installation is typical for
both sides depending on controller configuration.

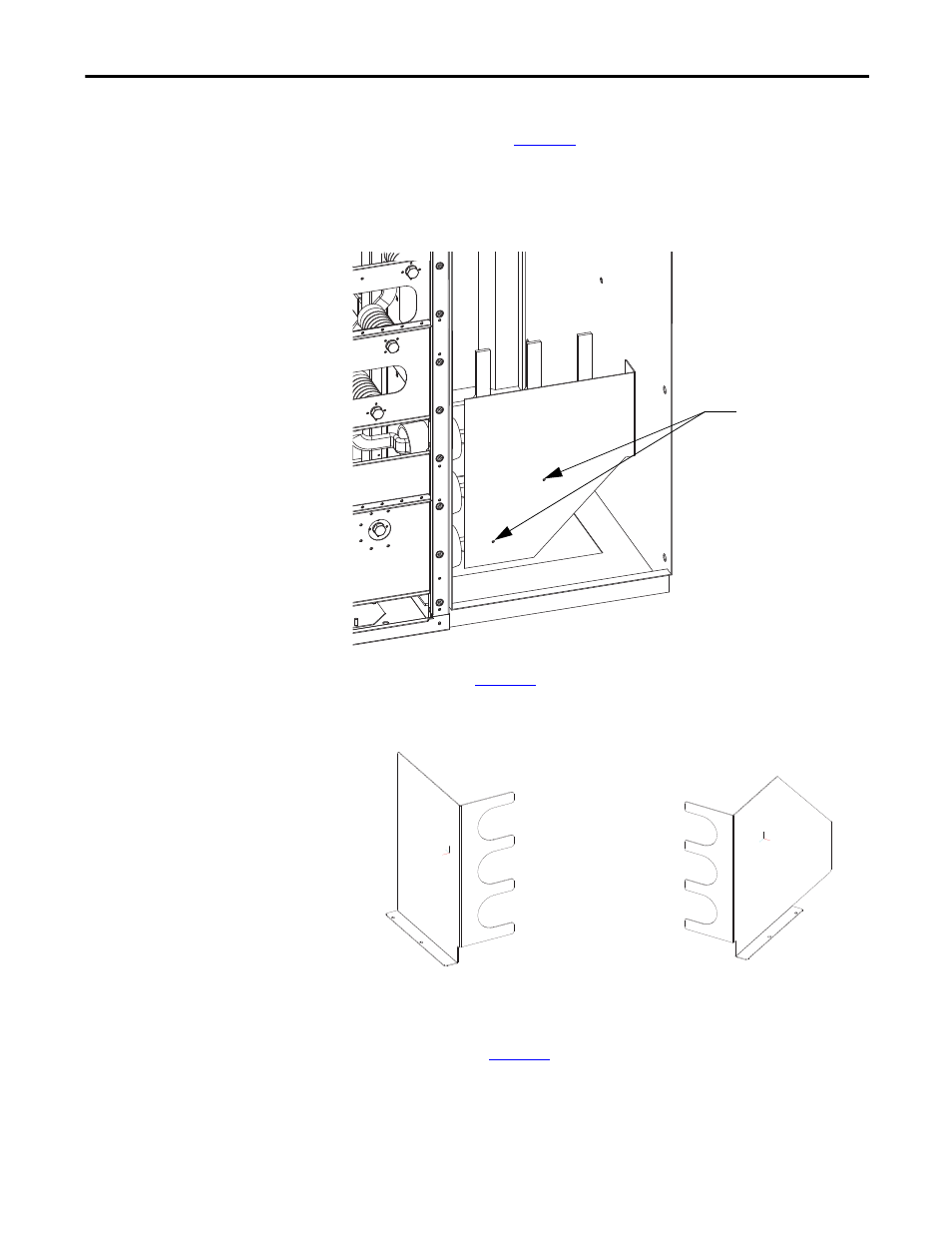

Figure 26 - Installation of switchgear barrier (rear view)
Two clear barriers ( Figure 27 ) are provided for installation inside the converter
cabinet.
Figure 27 - Clear barriers for installation inside SMC cabinet
Install barriers in the lower rear section of converter cabinet, noting the
orientation shown in
Figure 28 . Use the existing hardware from bottom cover
plates.
Nylon Screw
mounting location
Barrier 1 Barrier 2
