Chapter 3 Equipment Installation

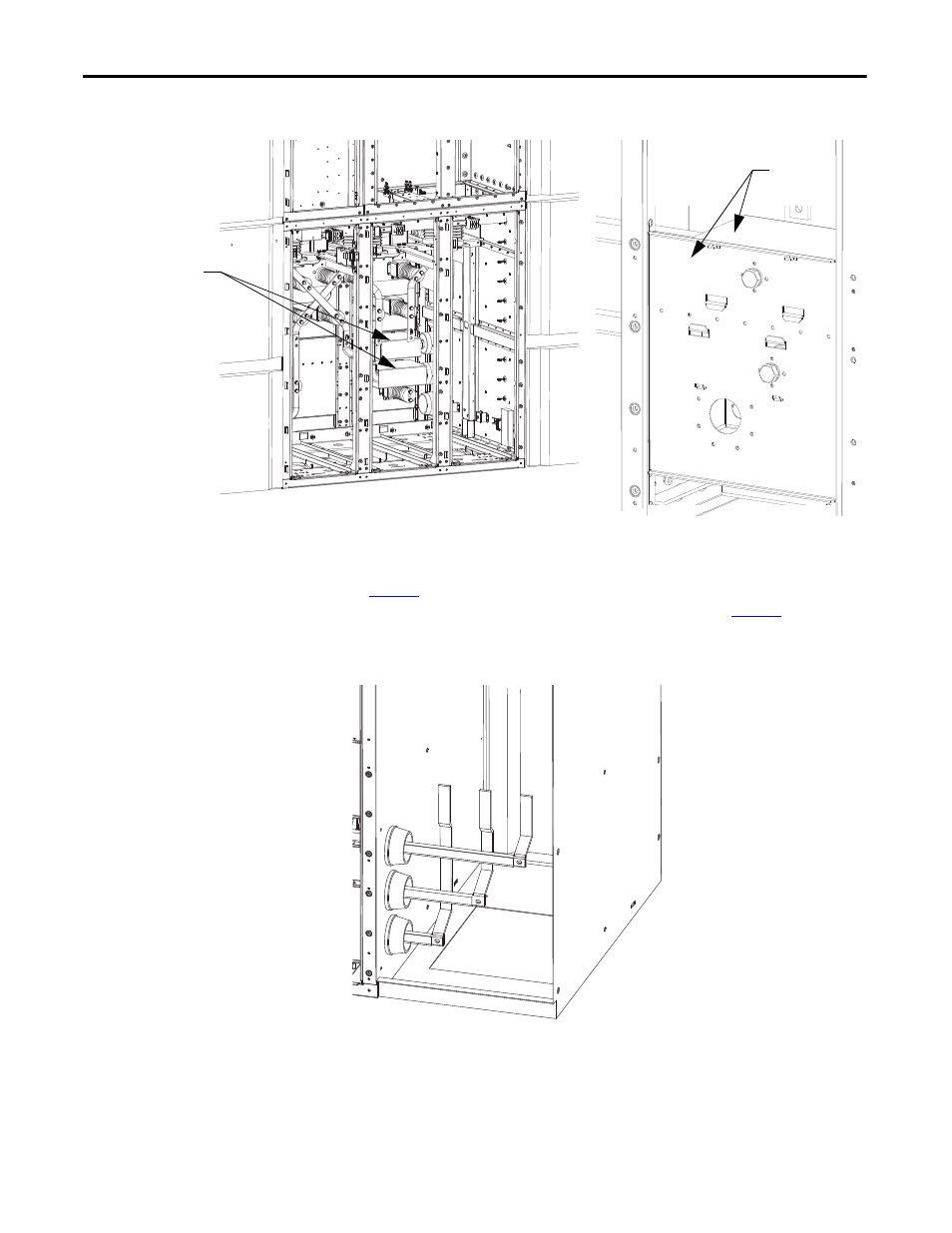

Figure 24 - Installation of Lower Bus Link Barriers
Within the switchgear cabinet, the lower bus links are to be fastened to the bus
stabs using the hardware supplied on these connections, using the torque values
on
page 37 . These special cap screws have an internal thread within the head of
the cap screws to fasten barriers in this area, as described on page 27 . Install the
supplied white barriers using the nylon screws provided.
Figure 25 - Installation of Lower Bus Links within Switchgear Cabinet (rear view)
Rear view of
barrier tabs
Barriers
