Page 129: Appendix
Appendix
E
Publication 2755-6.5
AdaptaScan Pass Through
Application
This appendix describes how to configure and operate the scanner when
connected to an AdaptaScan Bar Code Reader.
Hardware Connections
The scanner connects to the Adaptascan wiring base with a custom cable
connected to the AdaptaScan Pass Through cable (Catalog No.
2755-HDC-GA2–08). The cables and connections are shown in Chapter
2 of the scanner user manual (Publication 2755-6.2).

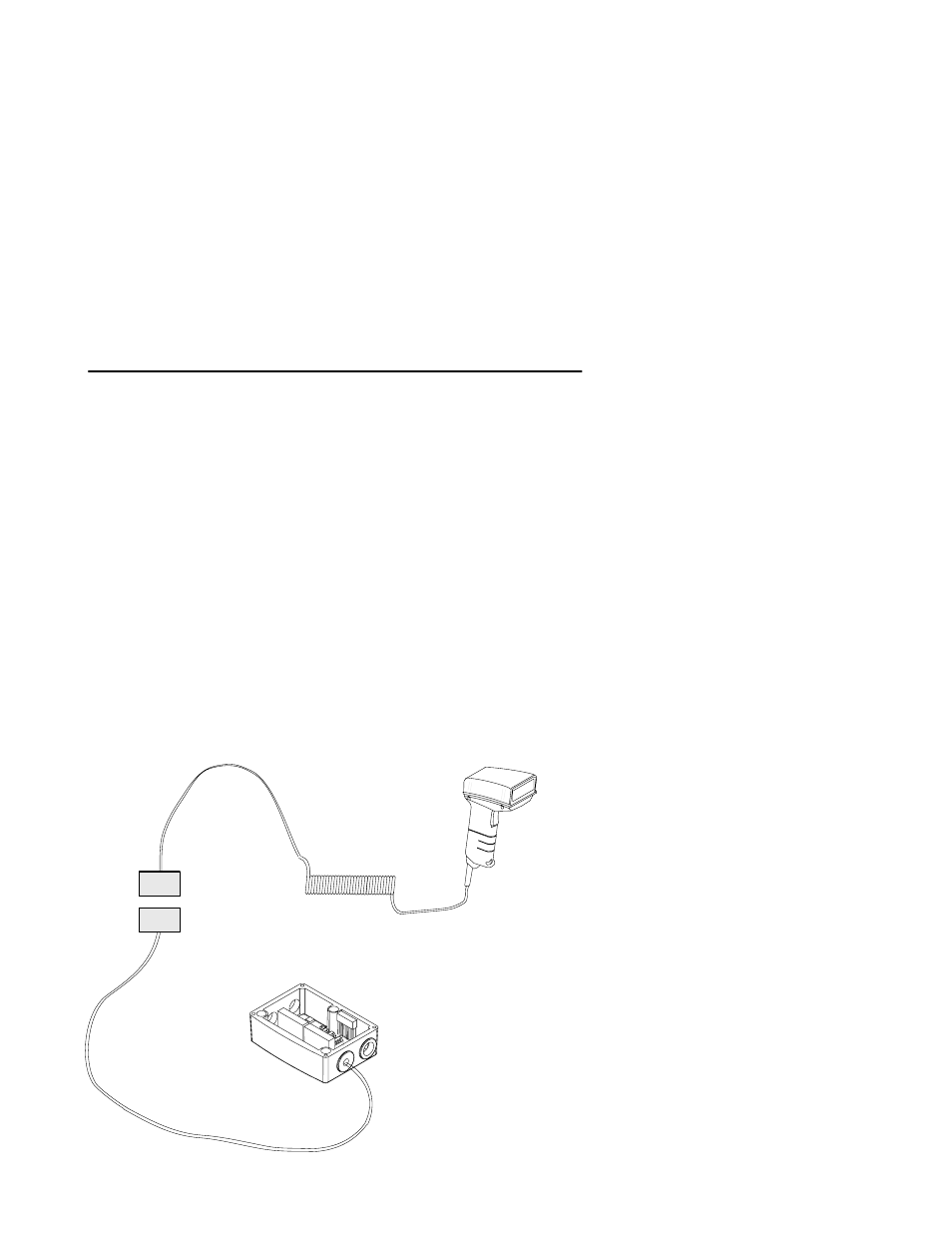

AdaptaScan Pass Through Cable
Scanner
Custom Cable (see next page)
AdaptaScan Wiring Base
Important: Power for the scanner
(from package detect terminals) is
not provided until the Reader is
installed on the wiring base.
