Enhanced Decoder Application

A–3

Publication 2755-6.5

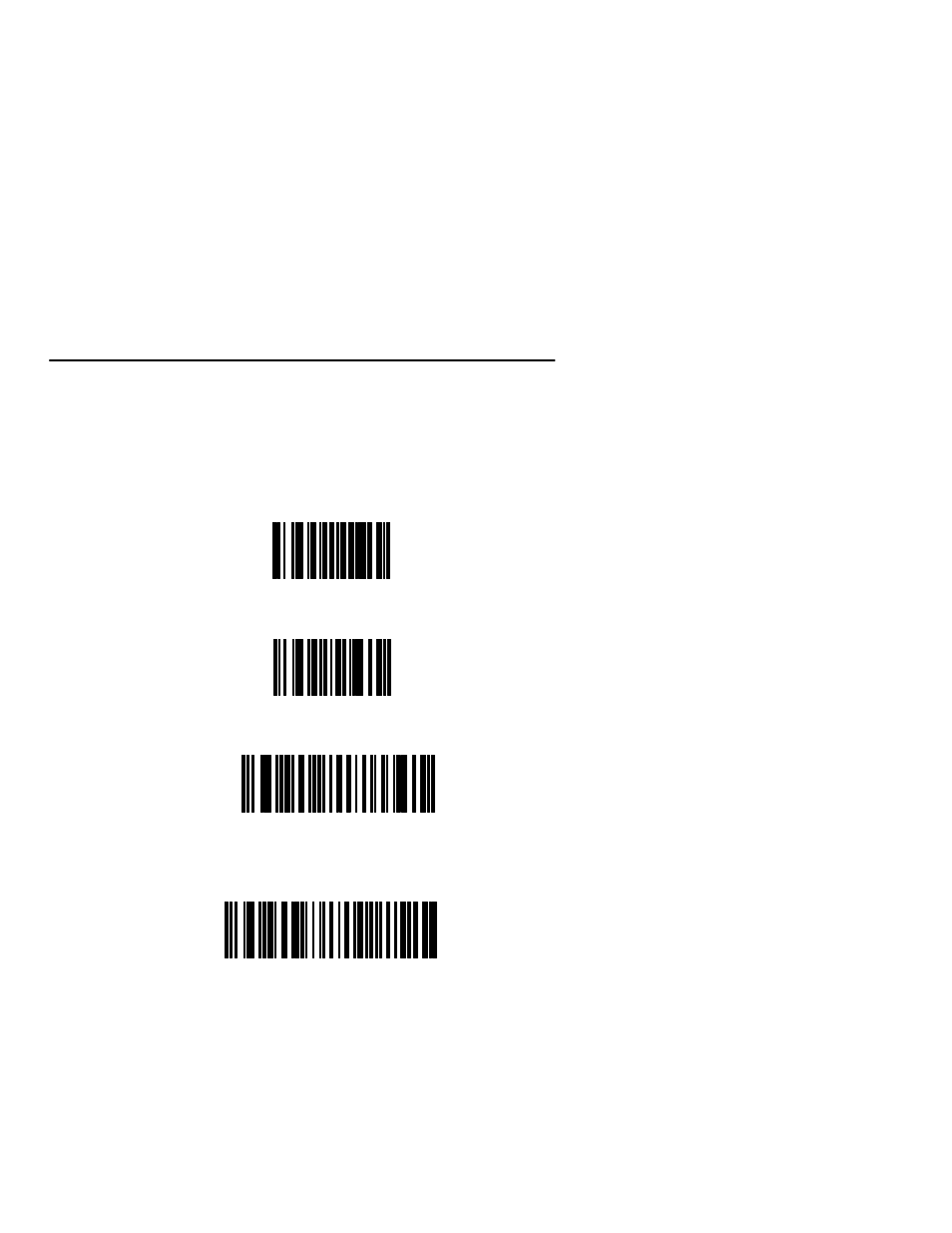

Configuration Codes for Scanner Emulation Output

1. After making the necessary connections, scan the following following

bar code symbols to setup the scanner for use with the scanner
emulation cable.

Scan this Symbol First

then

Set Scanner for Synapse Cable Operation

then

Enable Synapse Cable Communication

2. Set the scanner emulation cable to defaults by scanning the following:

Set Scanner Cable Defaults

3. The cable defaults will work with the enhanced decoder. Your

application may have specific requirements. Chapter 7 lists the
settings that can be modified.
