Page 116
C–2
SLC 5/03, 5/04 Controller Application
Publication 2755-6.5

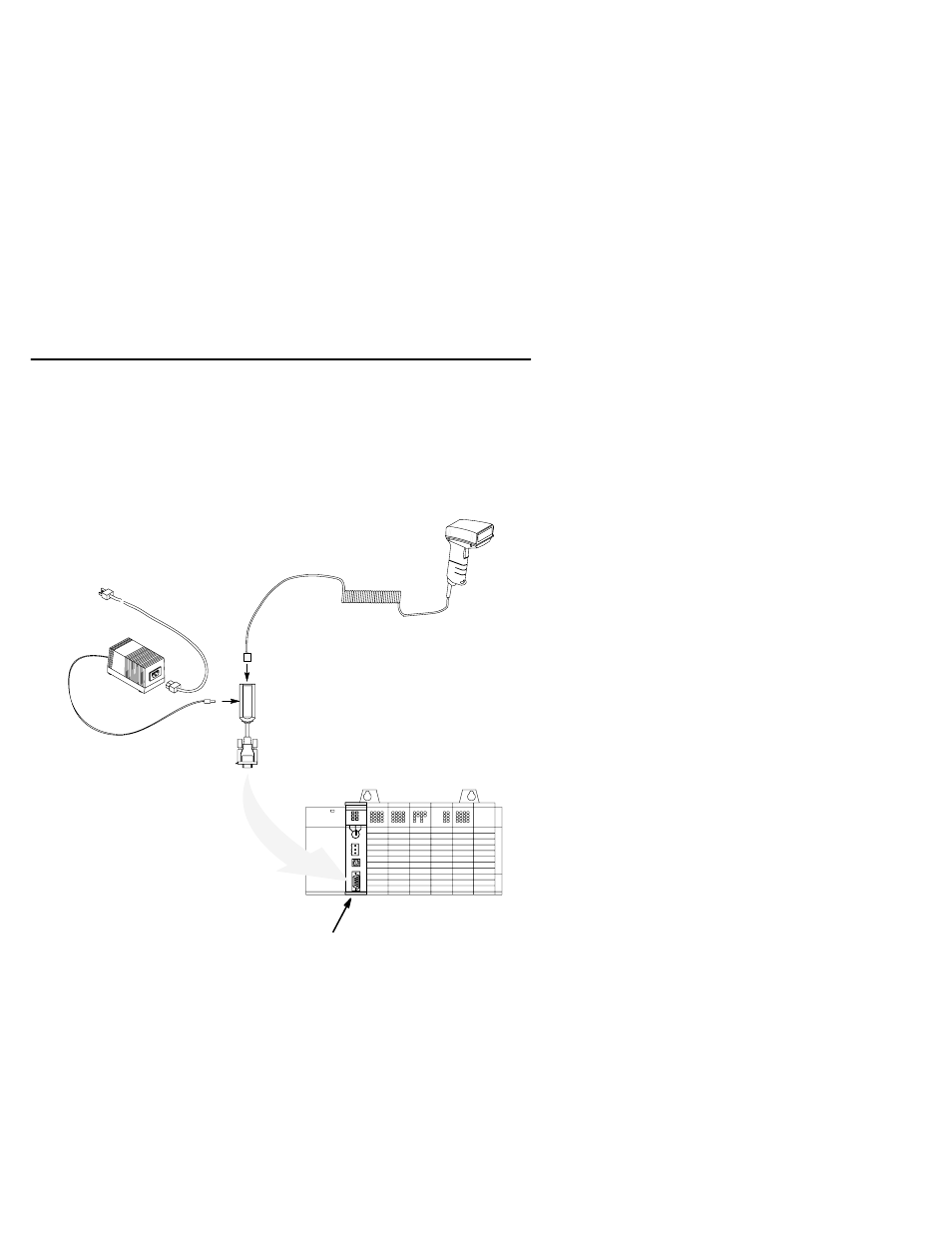

Hardware Connections
The scanner connects to the Channel 0 port of the SLC with an RS-232
Synapse cable (Catalog No. 2755-HFC-SR2-01).
SLC 5/04
Channel 0
To Channel 0 Port
Power Supply
Scanner Cable
RS-232 Synapse Cable
(2755-HFC-SR3-01)
Scanner
Note: The power supply
should be connected last.
Scanner Configuration
Configure the scanner using the bar codes described in Chapter 1.
The SLC controller does not require any specific scanner configuration.
However, you will need to configure the cable communication
parameters as described on the next page.
