Rockwell Automation 1794-OB16D FLEX I/O Diagnostic Modules User Manual User Manual
Page 97
Publication 1794-UM061A-EN-P - July 2006
Configure your Digital Module on an EtherNet/IP Network
95
To use the BOOTP/DHCP utility:
1. Start the BOOTP/DHCP software.

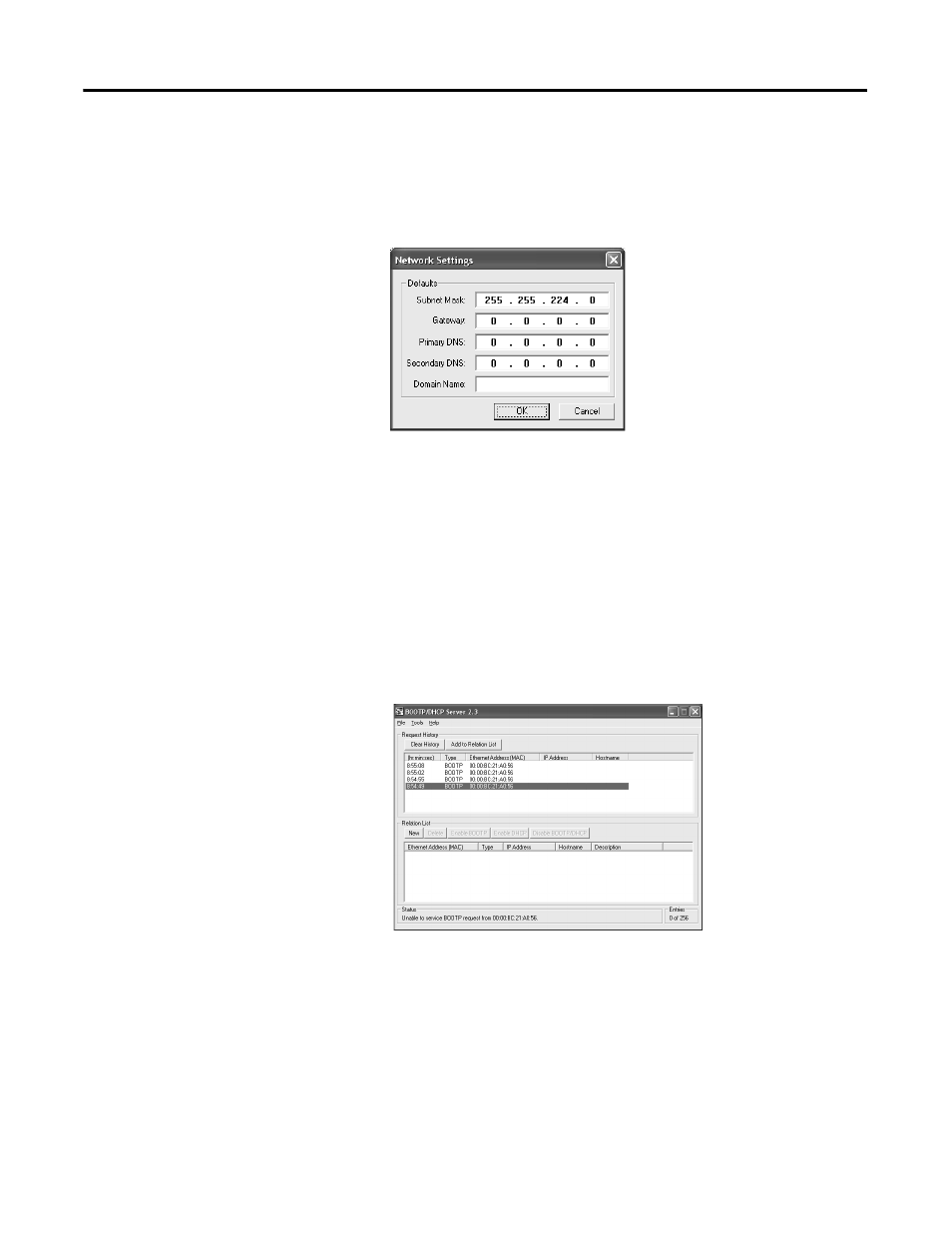

2. Select Tool
→
Network Settings.
If appropriate for your network, enter the subnet mask, gateway address,
primary/secondary server addresses, and roman name. Click OK.
In the Request History panel you see the hardware addresses of modules
issuing BOOTP requests.
3. Double-click on the hardware (MAC) address of the module you want
to configure.
The hardware address is on a sticker located on the side of the
EtherNet/IP module. The hardware address will be in a format similar
to: 00-0b-db-14-55-35.
