Rockwell Automation 1794-OB16D FLEX I/O Diagnostic Modules User Manual User Manual
Page 80
Publication 1794-UM061A-EN-P - July 2006
78 Configure Your Adapter and Digital Modules on a ControlNet Network

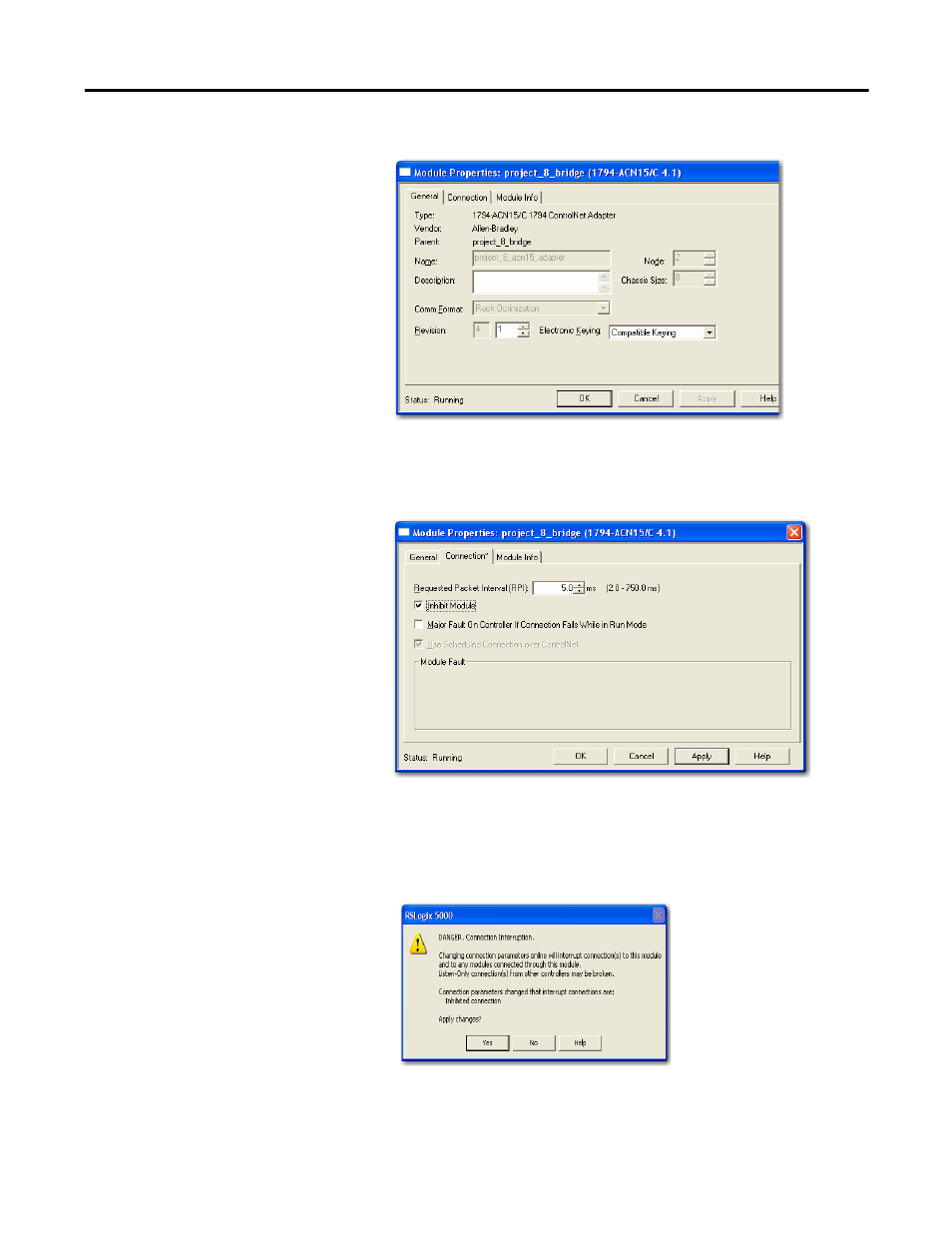

4. Select Properties.
5. Click on the Connection tab.
6. Check the Inhibit Module checkbox.
When you inhibit an adapter, all modules are inhibited. When you
inhibit a module, only the module is inhibited, not the whole rack.
7. Click Apply.
