Publication 1794-UM061A-EN-P - July 2006
Configuring Modules for Communication on a Remote I/O Network 37
Add a 1794 Remote Adapter
Module
The following steps show you how to add a 1794-ASB module to your project
and set the configuration parameters.

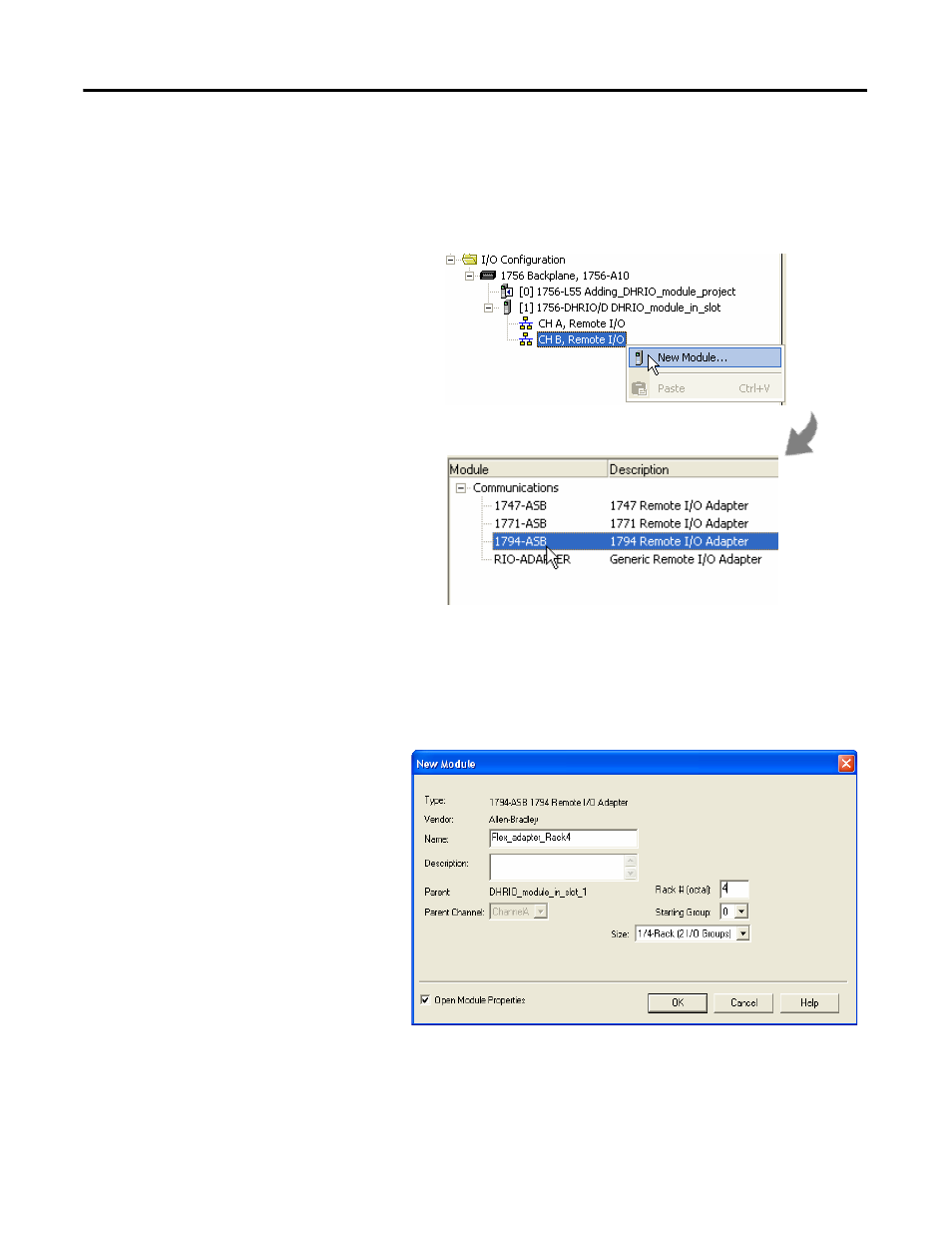

1. Add the 1794-ASB adapter module to the controller organizer.:
2. Define configuration parameters for the 1794-ASB module.
A. From controller organizer, select the
channel you are using for your
configuration then, right-click to display
the pull-down menu.
In this example, only channel B is connected to
remote I/O. You can connect both channels to
remote I/O simultaneously if necessary. If only
one channel is connected to remote I/O, we
recommend that you use channel B. If you
connect channel A to remote I/O, you cannot
use the programming terminal din connector
on the front of the 1756-DHRIO module.
B. Choose New Module.
C. Click on the Communications group to
expand the tree and then, choose the
1794-ASB Adapter module from the list.
D. Click OK.
A. Define the following parameters:
• Name
• Rack #
• Starting Group
• Size
• Open Module Properties
Refer to the 1794-ASB Adapter Module
Properties Dialog Box table for
additional information.
B. Click OK.
