Rockwell Automation 1794-OB16D FLEX I/O Diagnostic Modules User Manual User Manual
Page 55

Publication 1794-UM061A-EN-P - July 2006
Configure FLEX I/O Digital Modules on a DeviceNet Network
53

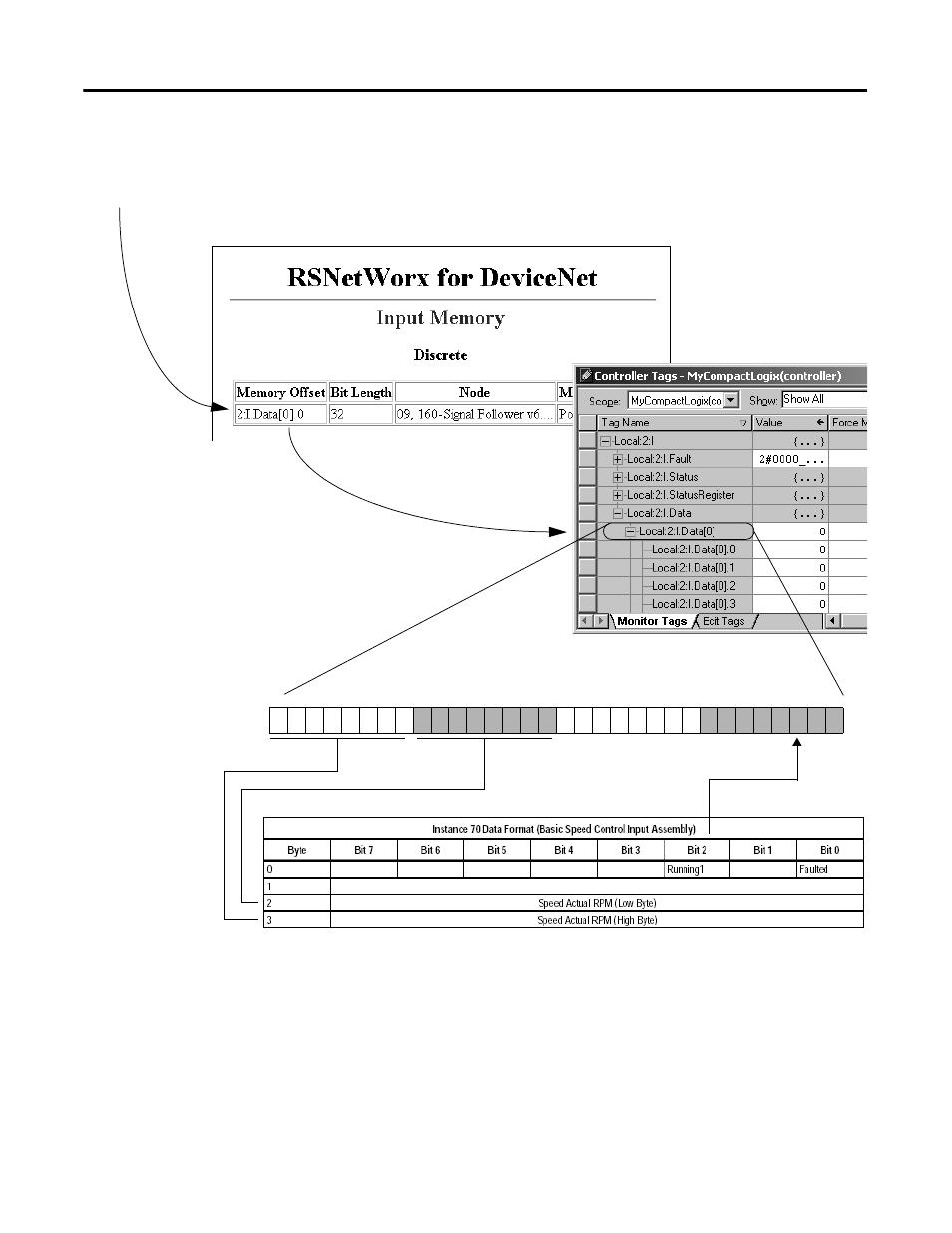

To determine the tag name (address) for DeviceNet data:
2. Find the corresponding tag in the
controller-scoped tags of the controller
using RSLogix 5000.
3. Find the required data within the
controller tag. Use the data map for the
device as a reference.
Local:2:I.Data[0]
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
data map for
Bulletin 160
AC drive
1. On the report for the network, find the memory address for the input or output data of the device.
