Configure Your Adapter and Digital Modules on a ControlNet Network
79

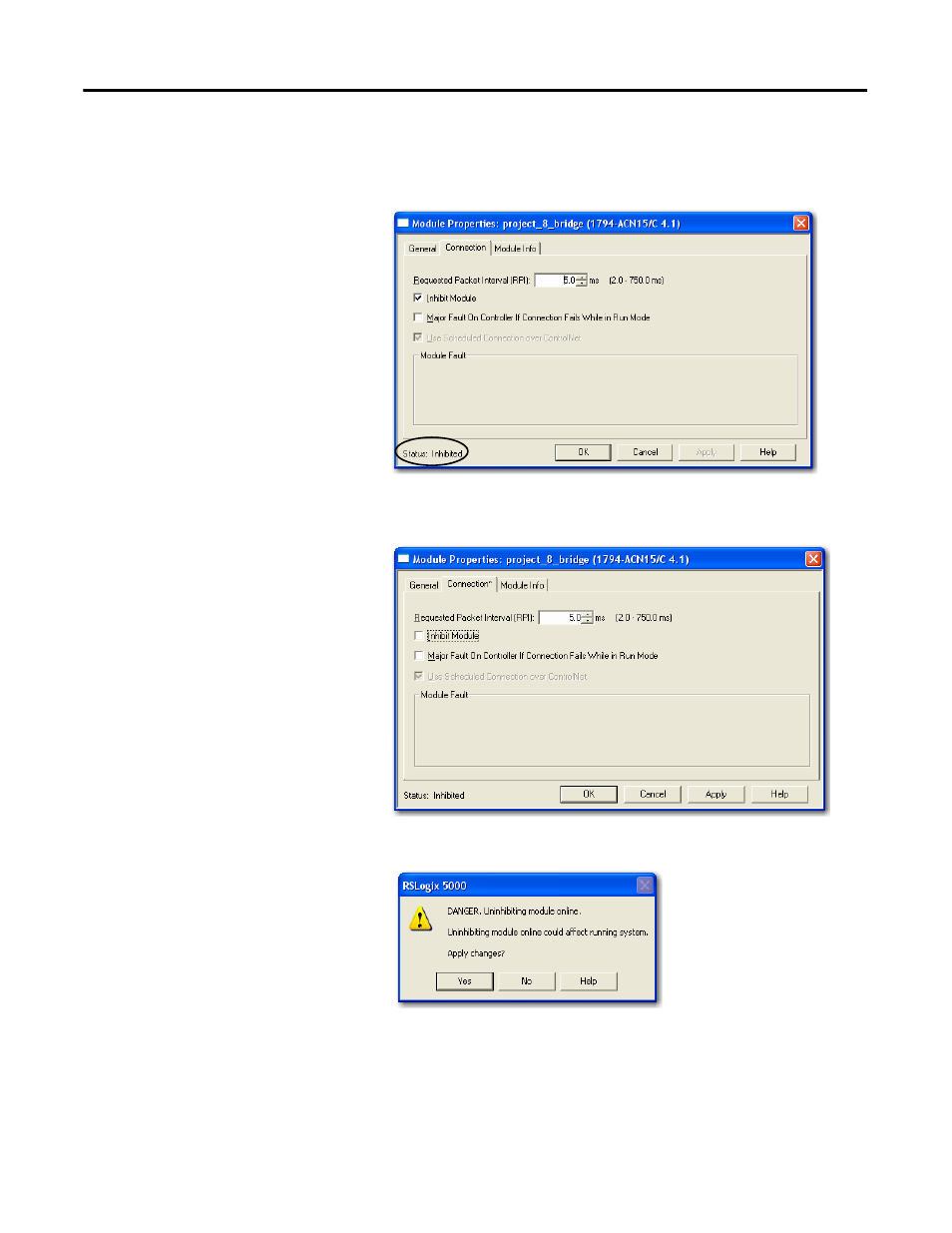

8. Click OK to confirm disabling the connection.
The connection is now inhibited.
9. Uncheck the Inhibit Module checkbox to disable the inhibit module
function.
10. Click Apply to download the configuration data.
11. Click Yes.
