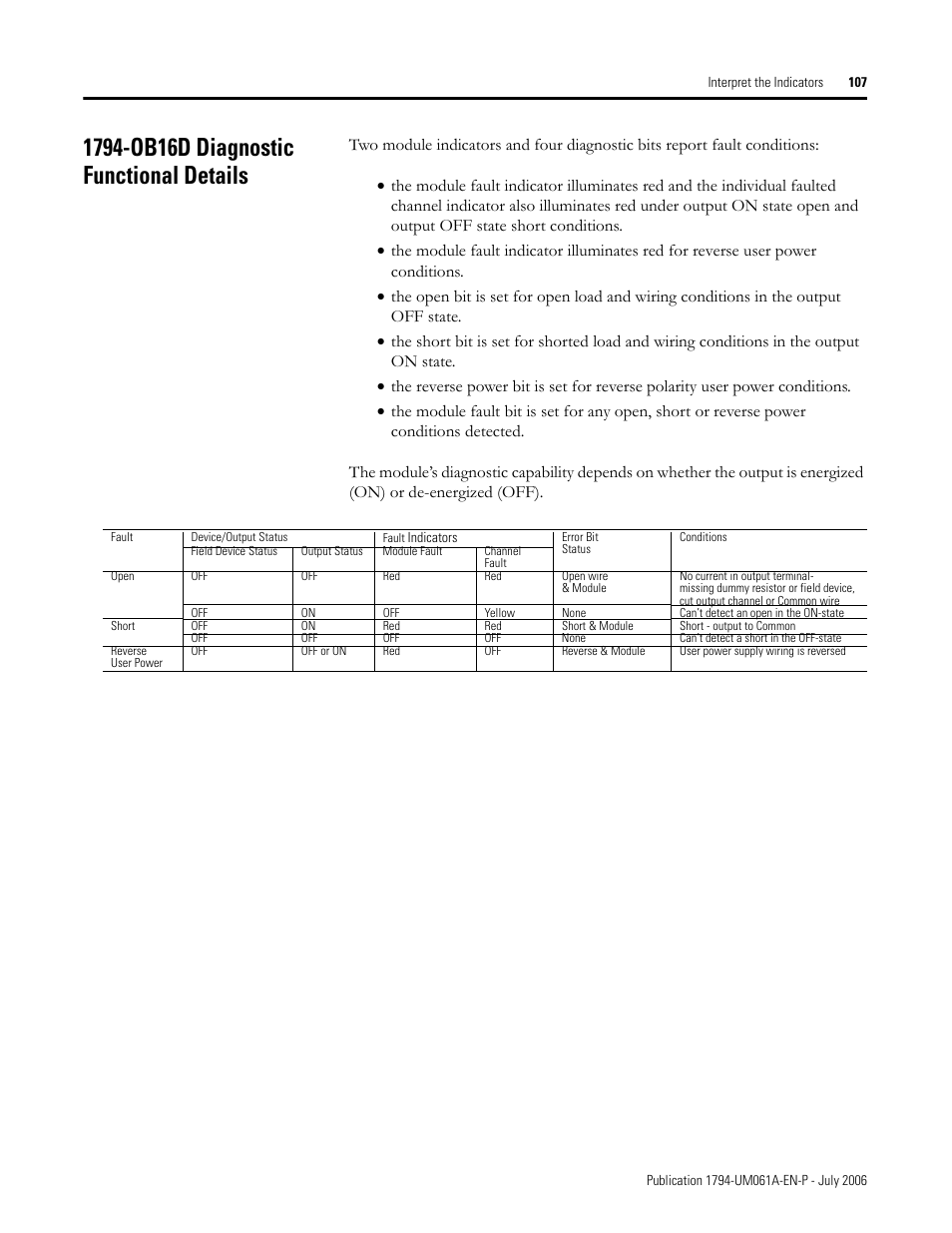

1794-ob16d diagnostic functional details – Rockwell Automation 1794-OB16D FLEX I/O Diagnostic Modules User Manual User Manual
Page 109
This manual is related to the following products:
