Page 25: Panel mount din-rail mount
Rockwell Automation Publication 1413-UM001D-EN-P - November 2010
25
Installation Chapter 2
4.
Apply 24V DC power to the terminal.
Mount the PowerMonitor
1000 Unit
The PowerMonitor 1000 unit can be mounted on a panel or a DIN rail.
Panel Mount
Follow these steps to mount the unit on a panel or any flat surface.
1.
Extend the top and bottom DIN-rail clips to the panel mount position.
2.
Insert a small screwdriver under the spring pin to move the clip, lift it, and
pull the clip forward until it extends approximately 6 mm (0.25 in.) from
the enclosure.
3.
Release the pin and lock the clip in the panel mount position.
4.
Mount the unit by using three #8 machine screws.
DIN-rail Mount
You can mount the unit on standard 35 x 7.5 mm (EN 50 022 – 35 x 7.7) DIN-
rail. To mount on a DIN-rail, leave the mounting clips retracted so the mounting
holes are hidden behind the unit.
Install on a DIN-rail
Follow these steps to mount the unit on a DIN-rail.
1.
Tilt the bottom of the unit slightly away from the rail until the notches
grab onto the top flange of the DIN-rail.
2.
Push the bottom of the enclosure forward towards the DIN-rail.
The spring-loaded clip snaps onto the bottom of the rail and holds the unit
firmly in place.

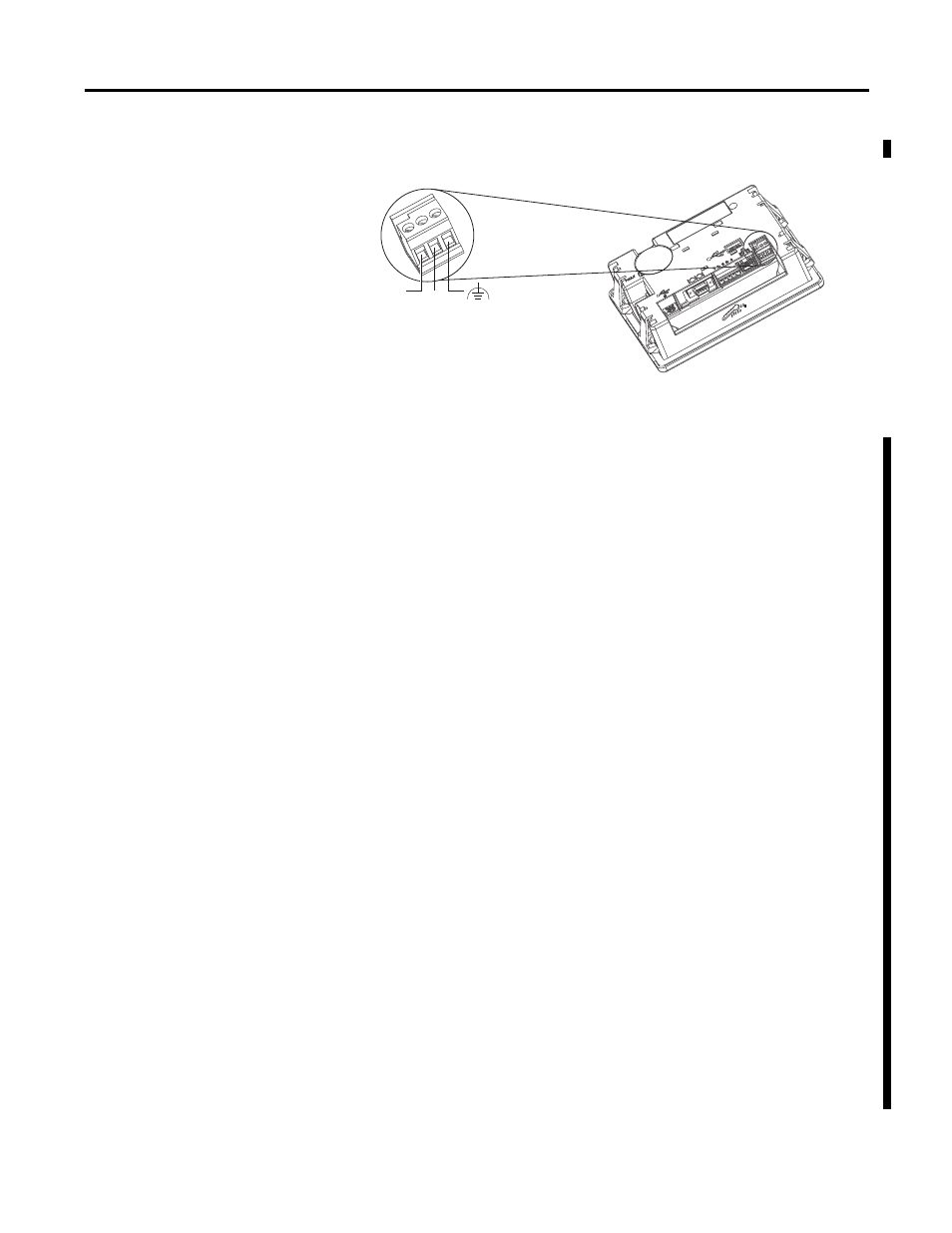

DC+
Functional
Earth Ground
to Ground Bus
DC-
