Rockwell Automation 1413-CAP-ME-PE Capacitor Bank Controller, Series C User Manual
Page 23
Rockwell Automation Publication 1413-UM001D-EN-P - November 2010
23
Installation Chapter 2
Before reinstalling the terminal in the panel opening, you must release each panel
clamp from its locked position. Do this as soon as possible after the removing the
terminal from the panel.

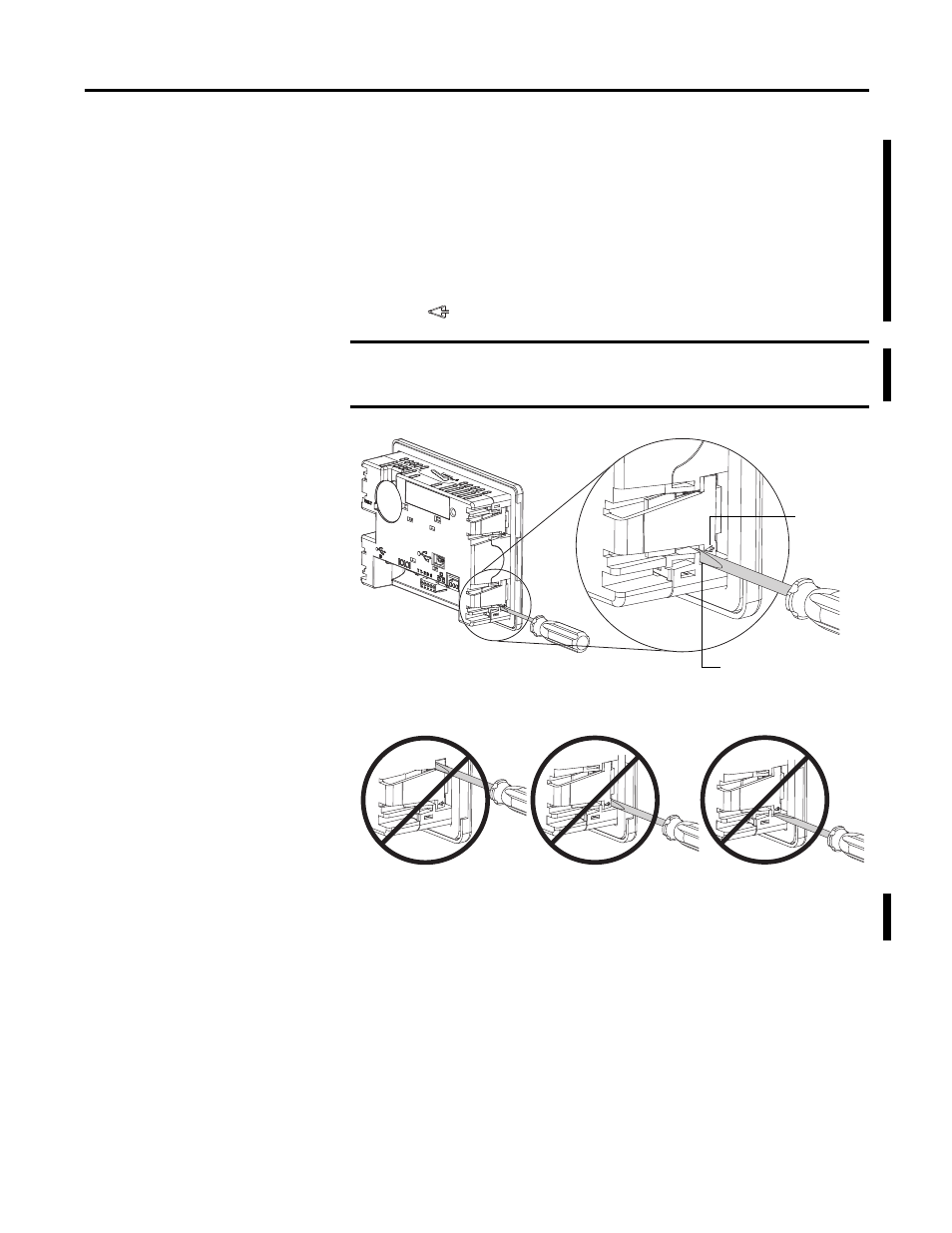

Follow these steps to unlock each panel clamp.
1.
Insert the tip of a #3 - #6, screwdriver, approximately
5 mm (0.20 in.), into the location shown on each clamp, next to the arrow
icon
, and pull the screwdriver straight out.
The panel clamp will release and return to its unlocked position.
2.
Reinstall the terminal in the panel after unlocking all the panel clamps.
IMPORTANT
Take care to insert the screwdriver in the correct orientation and on the
correct side of each clamp, as indicated by the arrow icon. Do not pry the
plastic with the screwdriver or you may damage the clamp.
Other Incorrect Locations for Inserting The
Screwdriver
Incorrect Side of
Clamp
Arrow
Icon
Insert screwdriver
here.
