Isolation switch mechanism grounding adjustment, Figure 63 – Rockwell Automation 1512B MV Controllers, 200/400A Two-High Cabinet, Standard and Arc-Resistant Enclosure User Manual
Page 70

62
Rockwell Automation Publication 1500-UM055G-EN-P - May 2013
Chapter 5
Maintenance
8. Actuate the Isolation Switch handle to verify the travel angle.
If the angle is incorrect, repeat steps 5 through 7 until desired travel angle is
reached.
Isolation Switch Mechanism
Grounding Adjustment
1. Complete the Power Lock-out Procedure (refer to
).
2. Inspect the grounding of the isolation switch blades. When the isolation
switch handle is in the OFF position, the isolation switch blades must fully
engage the grounding pins and be within 1.5 mm (0.06 in.) of the ground
bar (see
). When the isolation switch handle is in the ON
position, the blades must fully engage the incoming line stabs.

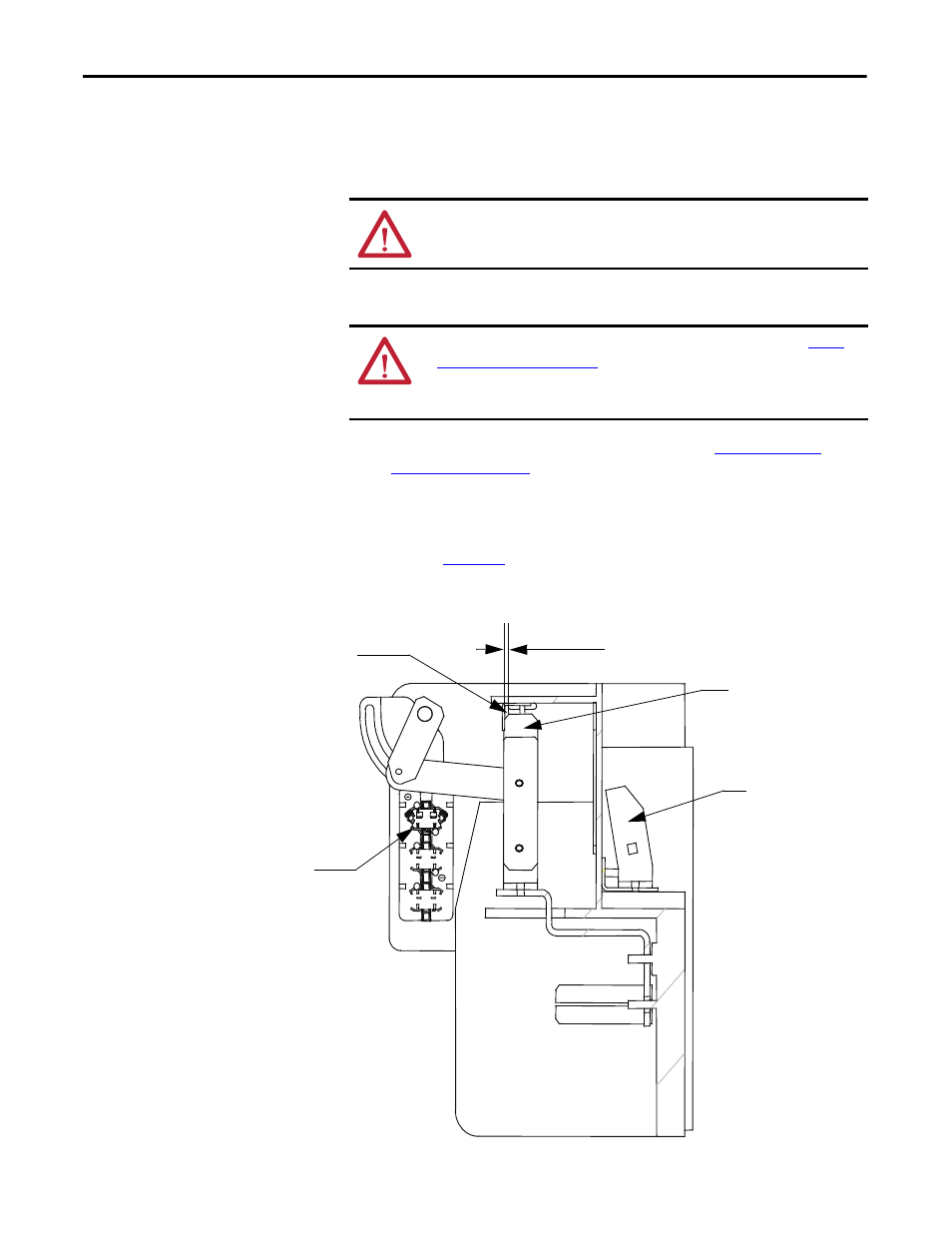

Figure 63 - Isolation Switch Grounding Adjustment
ATTENTION: All three isolation switch linkage assemblies must meet the angle
tolerance requirements.
ATTENTION: To avoid shock hazards, lock out incoming power (refer to
) before working on the equipment. Verify with a
hot stick or other appropriate voltage measuring device that all circuits are
voltage free. Failure to do so may result in severe burns, injury or death.
Ground Bar
Maximum Gap 0.06 in. (1.5 mm) between ground
Bar and Isolation Switch in open position
Isolation Switch Blade
Incoming Line Stab
Auxiliary Contact
