22

Rockwell Automation Publication 1500-UM055G-EN-P - May 2013

Chapter 3

Installation – Arc-Resistant Enclosure (ArcShield)

Opening the Medium Voltage Doors

Medium voltage doors are identified as MV in

Figure 21

.

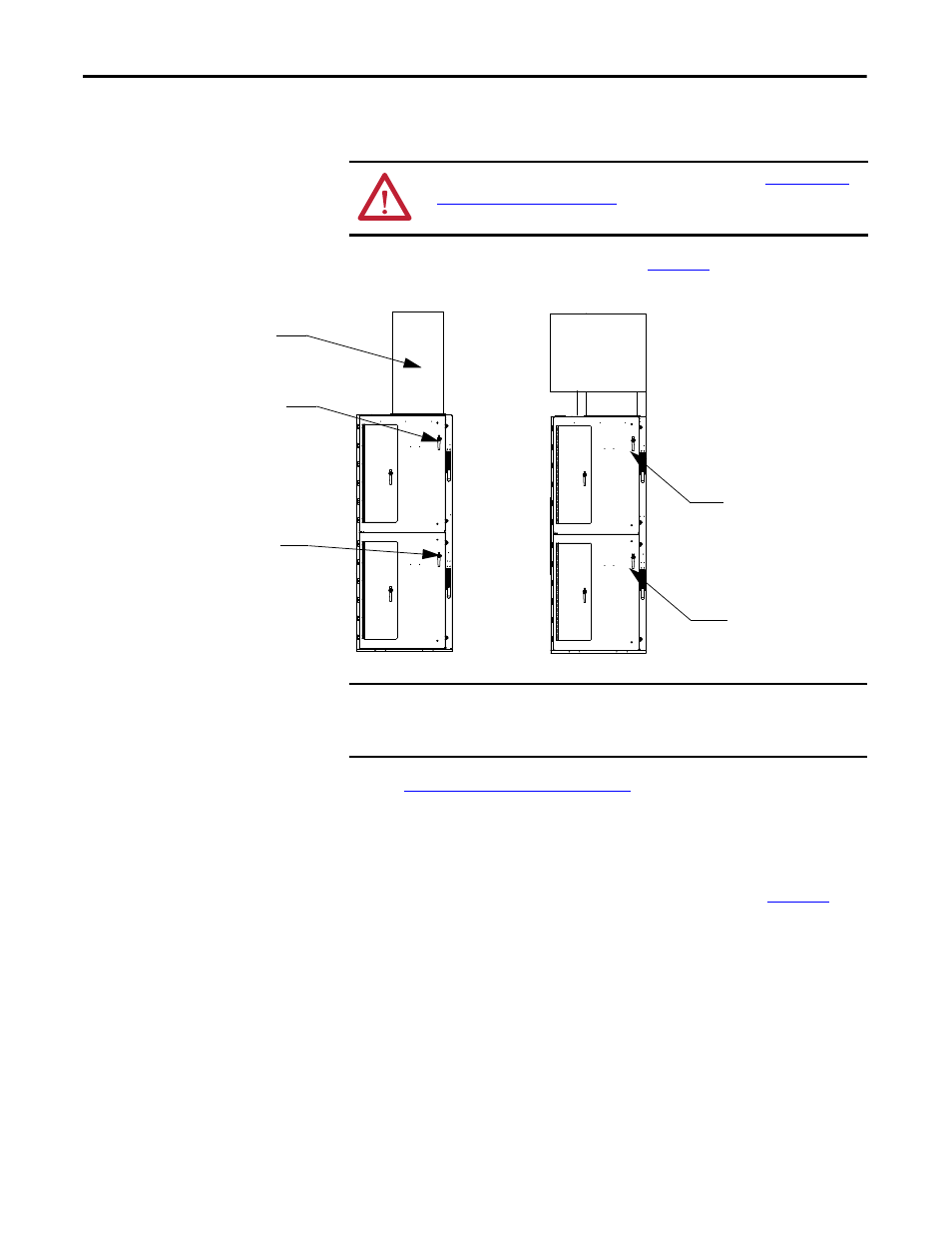

Figure 21 - Access to Medium Voltage Compartments

Refer to

Access to the Power Bus on page 26

for the procedure to open the swing-

out low voltage panel behind the low voltage door (for standard cabinet only).

1. Electrically open the contactor by pressing the STOP button on the starter

or at the remote control location.

2. Move the isolation switch handle to the OFF position (see

Figure 22

).

3. Turn the release handle counter-clockwise 90 degrees.

4. Unbolt the door locking bolts for medium voltage door.

5. The door is now released and will swing open.

ATTENTION: Complete the Power Lock-out procedure (refer to

Power Lock-out

Procedure on page 47 of Chapter 5

) before beginning any service procedures to

the unit. Failure to do so may result in severe burns, injury or death.

LV

MV

LV

MV

LV

MV

LV

MV

Chimney

Upper Low Voltage

Door handle

Lower Low Voltage

Door handle

Plenum

Upper Low Voltage
Door handle

Lower Low Voltage
Door handle

IMPORTANT

Each medium voltage door has its own isolation switch handle and
interlocking safeguards. Upper and lower power cells are separated by an
isolation barrier.
