Chapter 3
Installation – Arc-Resistant Enclosure (ArcShield)
Access to the Power Bus
Rear Access
1. Remove the hardware securing the center rear bus access cover (see
).
2. Remove the center rear bus access cover.
3. Once the rear bus cover is removed you will see the three power bus bars
and ground bus (see
).

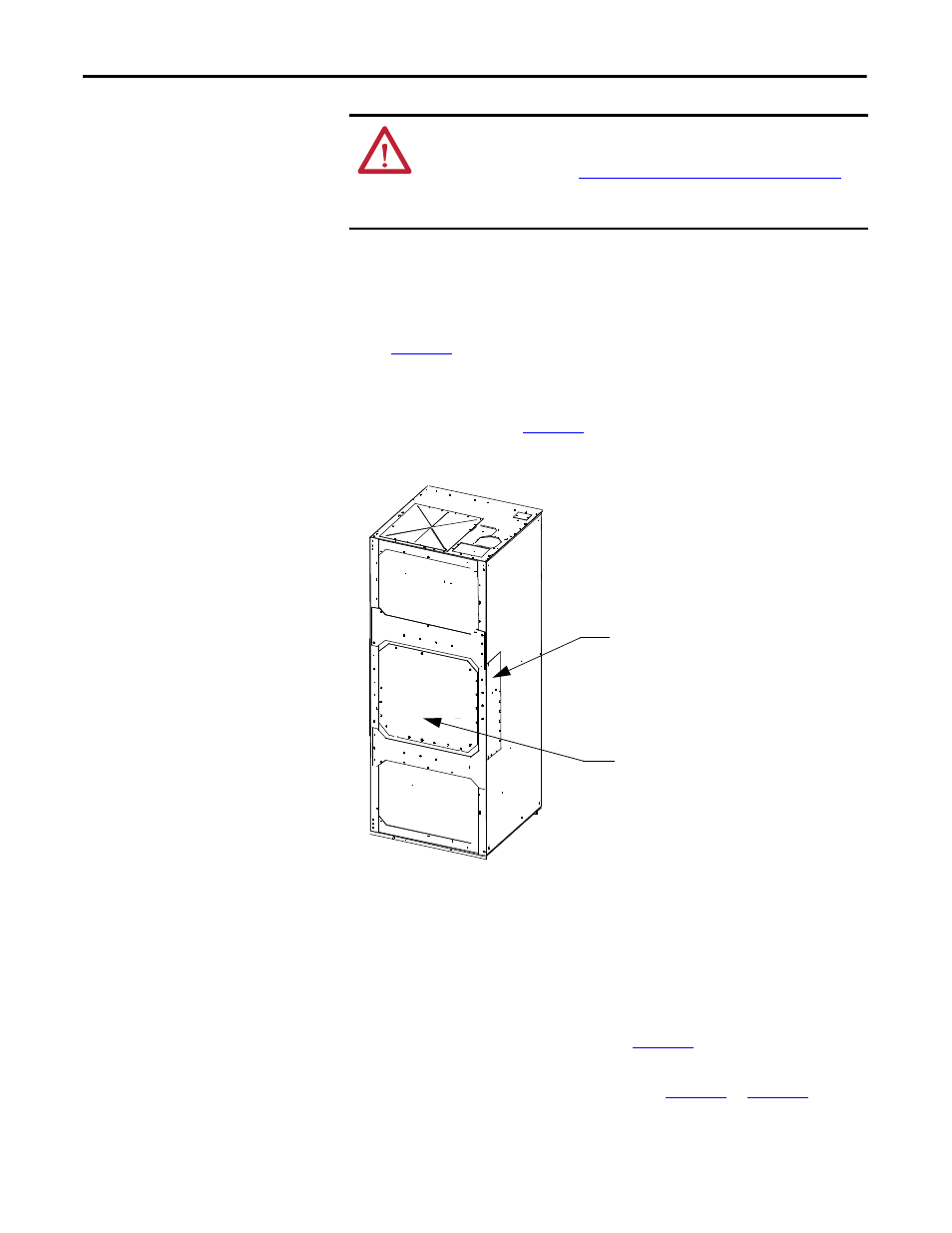

Figure 25 - Access to Power Bus from Side and Rear of Cabinet
Side Access
A side bus access cover is located on each side of the controller.
1. Remove the hardware from the appropriate side bus access cover.
2. Remove the side bus access cover (see
).
3. ArcShield units at the end of a line-up have a ground connection to the
inner plate of the side bus access cover (see
to
). This
connection must be maintained to ensure unit arc resistant performance.
ATTENTION: This procedure requires contact with medium voltage
components. To avoid shock hazards, lock out incoming power before working
on the equipment (refer to
Power Lock-out Procedure on page 47 of Chapter 5
Verify with a hot stick or appropriate voltage measuring device that all circuits
are voltage free. Failure to do so may result in severe burns, injury or death.
Side Bus Access Cover
Center Rear Bus Access Cover
