C-16 Wireless Flash Updating DPI Devices

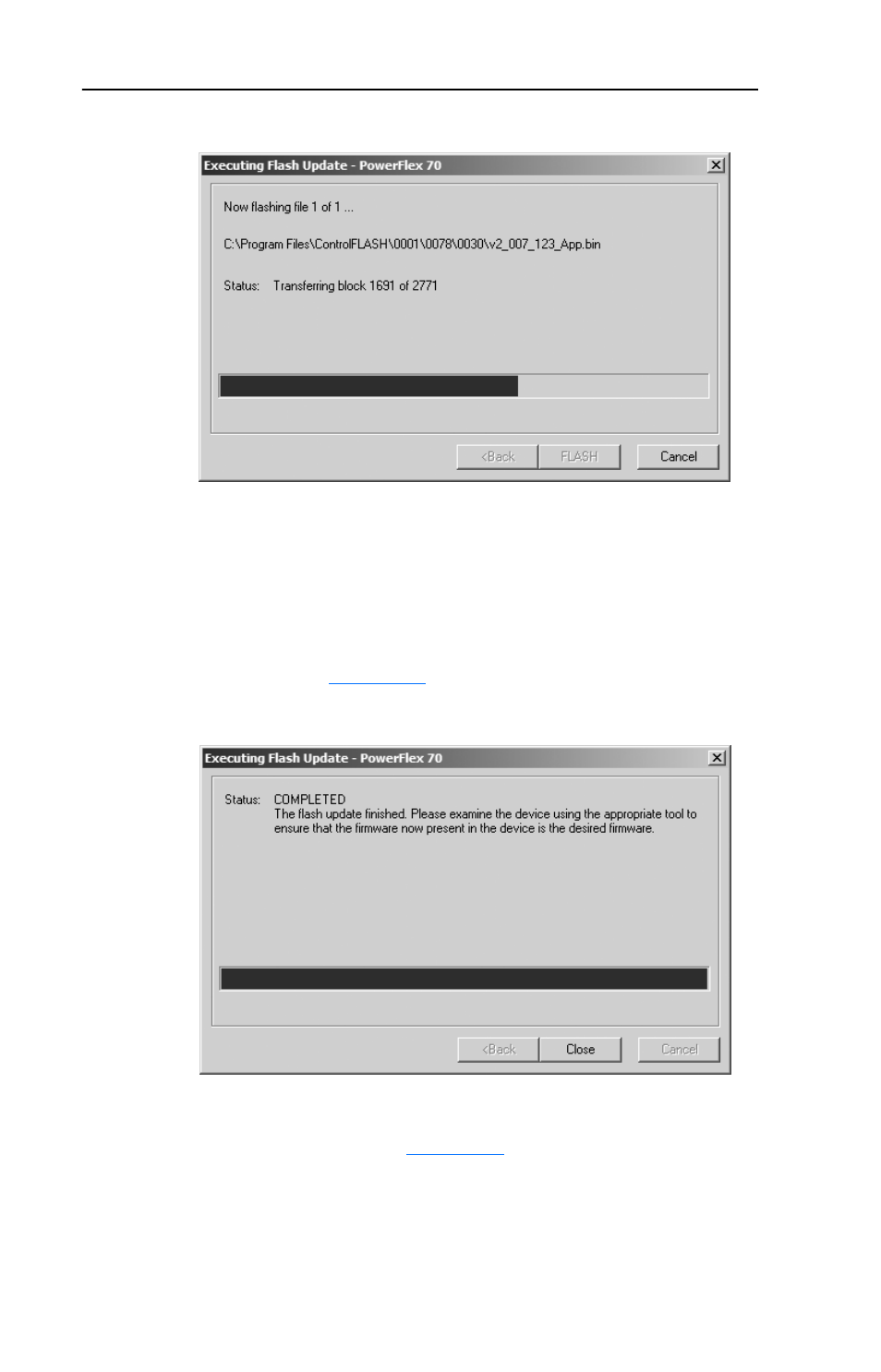

Figure C.29 Executing Flash Update Progress Screen
Note: Near the end of the flash update process, the WIM status
indicator changes from solid blue to flashing red, and then to
flashing green.
9. When the flash update is completed, the message window in the
Executing Flash Update screen changes to indicate that flash update
was completed (
Figure C.30 ).
Figure C.30 Executing Flash Update Completed Screen
Click Close to exit the Flash Update Completed screen. The Select
Device to Update screen (
Figure C.26 ) reappears along with the
Windows in-process icon (typically, the hourglass icon). When
flashing a drive or peripheral, wait for this icon to disappear
(approximately 30 seconds). When flashing the WIM, the icon
remains displayed until after the wireless connection is
re-established (Step 11).
