Wireless Flash Updating DPI Devices C-13

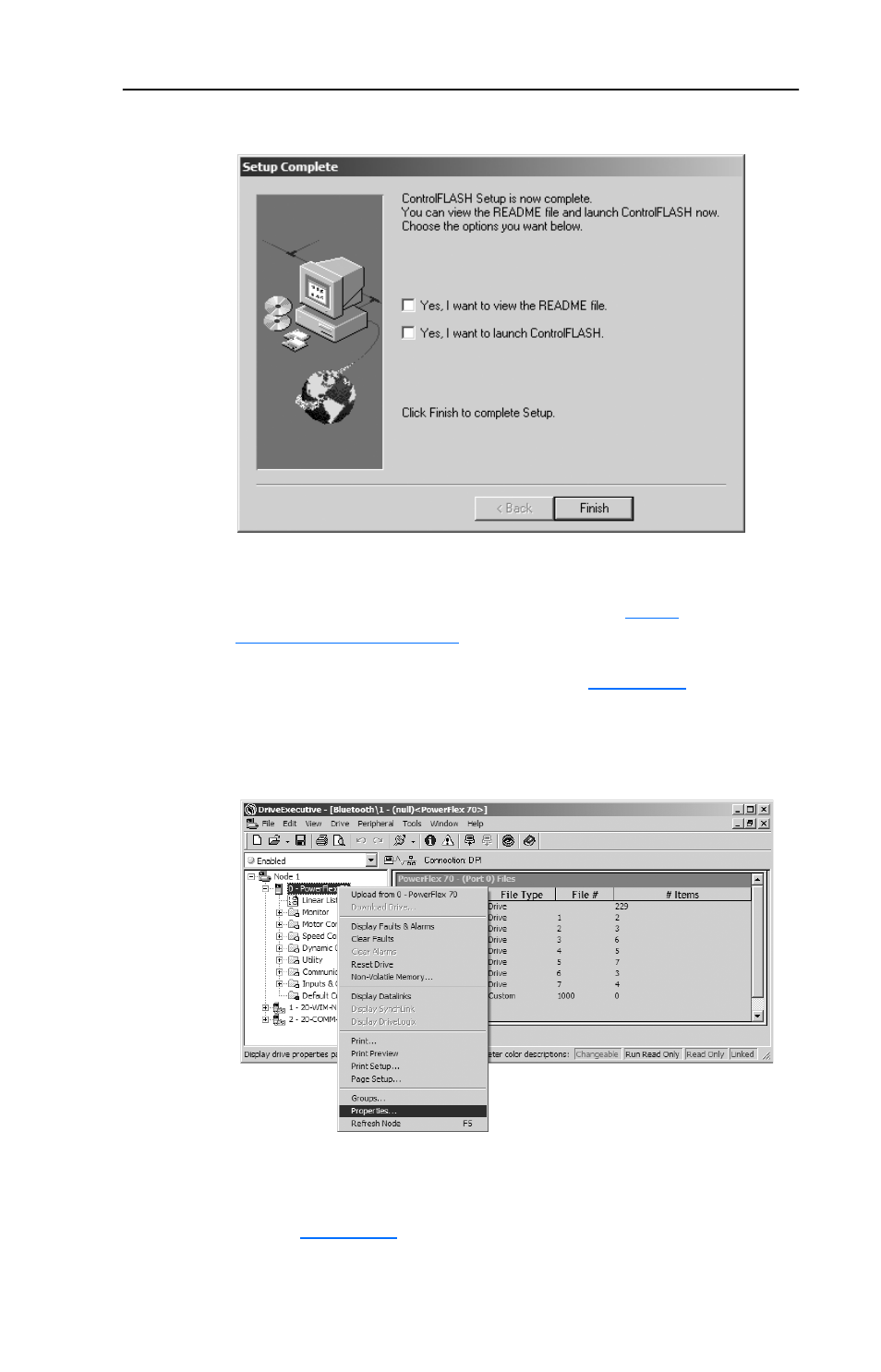

Figure C.23 ControlFLASH Setup Complete Screen
3. Establish wireless communication between the WIM and the desktop
or laptop computer. For this procedure, refer to Using
DriveExecutiven page 3-16 .
4. With the DriveExecutive linear list screen ( Figure C.24 ) displayed,
right-click on the device to be flash updated (for this example, a
PowerFlex 70 drive).
Figure C.24 DriveExecutive Linear List Screen
5. Select Properties… to display the device’s general information
screen. Then click the Component Details tab to show its related
screen (
Figure C.25 ).
