3-22 Configuring the WIM

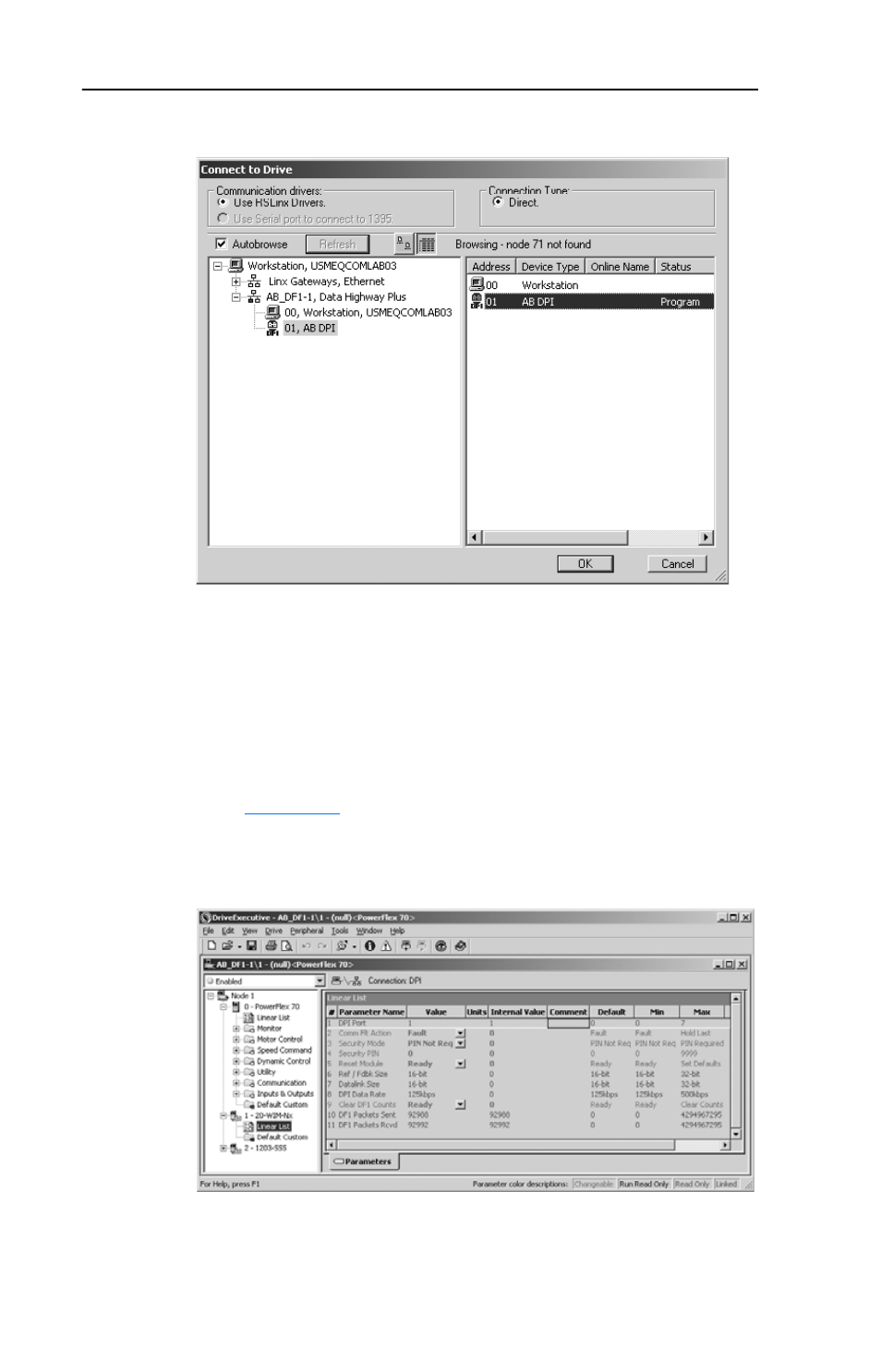

Figure 3.37 Connect to Drive Window
13. Then click OK. DriveExecutive will begin updating drive
information such as parameter names, diagnostics, etc. and store
them in a DriveExecutive directory established for this purpose.
14. In the left pane of the DriveExecutive menu tree window, click the +
signs to expand the tree. For this example, click on “20-WIM-Nx”
and click “Linear List” to display the WIM parameters in the right
pane (
Figure 3.38 ). To edit a parameter, double-click it or use the
Value column pull-down menu.
Figure 3.38 DriveExecutive Menu Tree Window
