3-6 Configuring the WIM

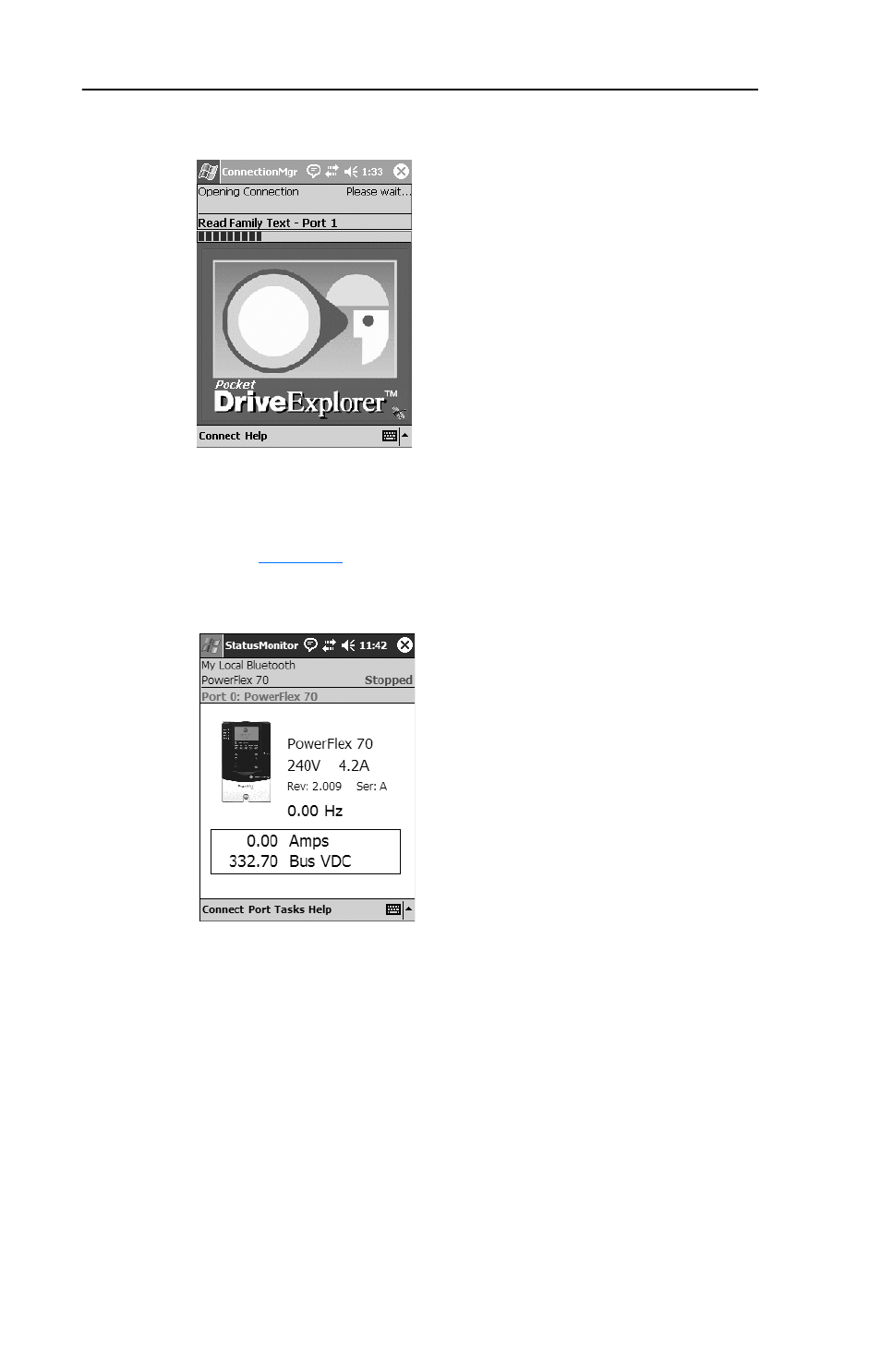

Figure 3.8 Opening Connection Screen
9. The status bar will update and then when connection is complete, the
StatusMonitor application will launch and show the “StatusMonitor”
screen (
Figure 3.9 ) for the drive.
Figure 3.9 Drive StatusMonitor Screen
You can then select other devices from the Port menu, or other
functions from the Tasks menu.
10. If you will be routing to a remote networked device, you will need to
perform sub-steps A through D in this step. This requires that you
are able to connect to the Bluetooth card/module (cannot be done
offline) because Pocket DriveExplorer for Pocket PC must
interrogate the device and determine what kinds of network adapters
are present.
