IP Camera User’s Manual
|
Appendix 6 Port mapping

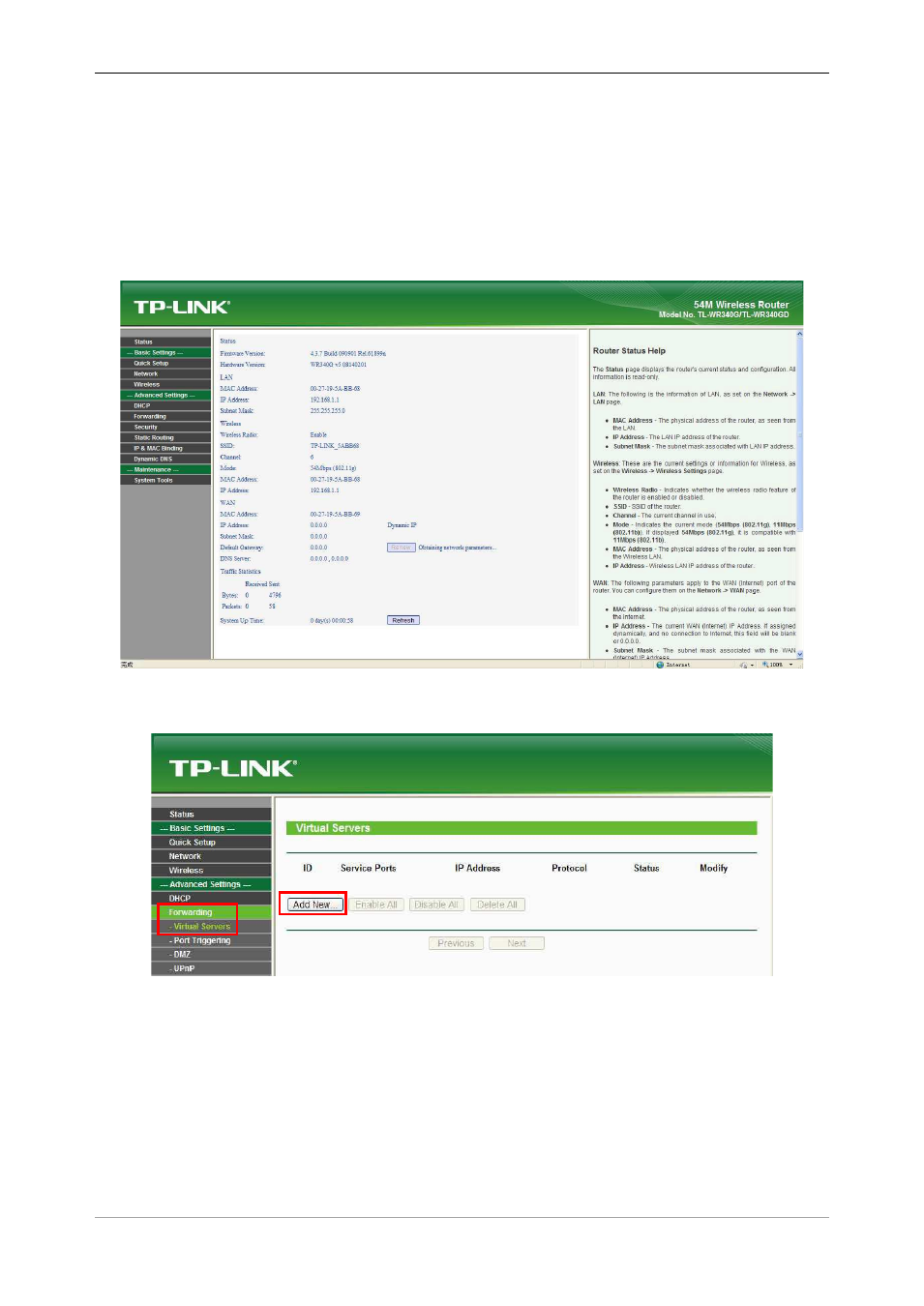

Take the TL-WR340G router of TP-LINK as an example for illustration:
Step 1: Ask network administrator for the IP address of router (i.e. LAN gateway address), enter user
name and password, and then log in the router. The main interface is as follow:
Fig 93
Step 2: Open “Forwarding”, select “Virtual Servers”, as below picture shows:
Fig 94
Step 3: Select “Add New…”, enter the IP address of IP camera (e.g.192.168.1.100 ), port (e.g. 85),
status (valid) and other information, click save, see below picture:
