Memmert INCO 246/246 med CO2 Incubators (Generation 2003) - Manual (Page 61)

61
Advanced functions
7.7.3 USB interface
If several chambers are to be connected to a computer via USB interface, an appropriate
interface on the computer and a separate cable are required for each chamber. The maximum
cable length is 5 m.
7.7.4 Ethernet interface
LAN 1: 192.168.1.233
192.168.1.216
LAN 2: 192.168.1.215 LAN 3: 192.168.1.241

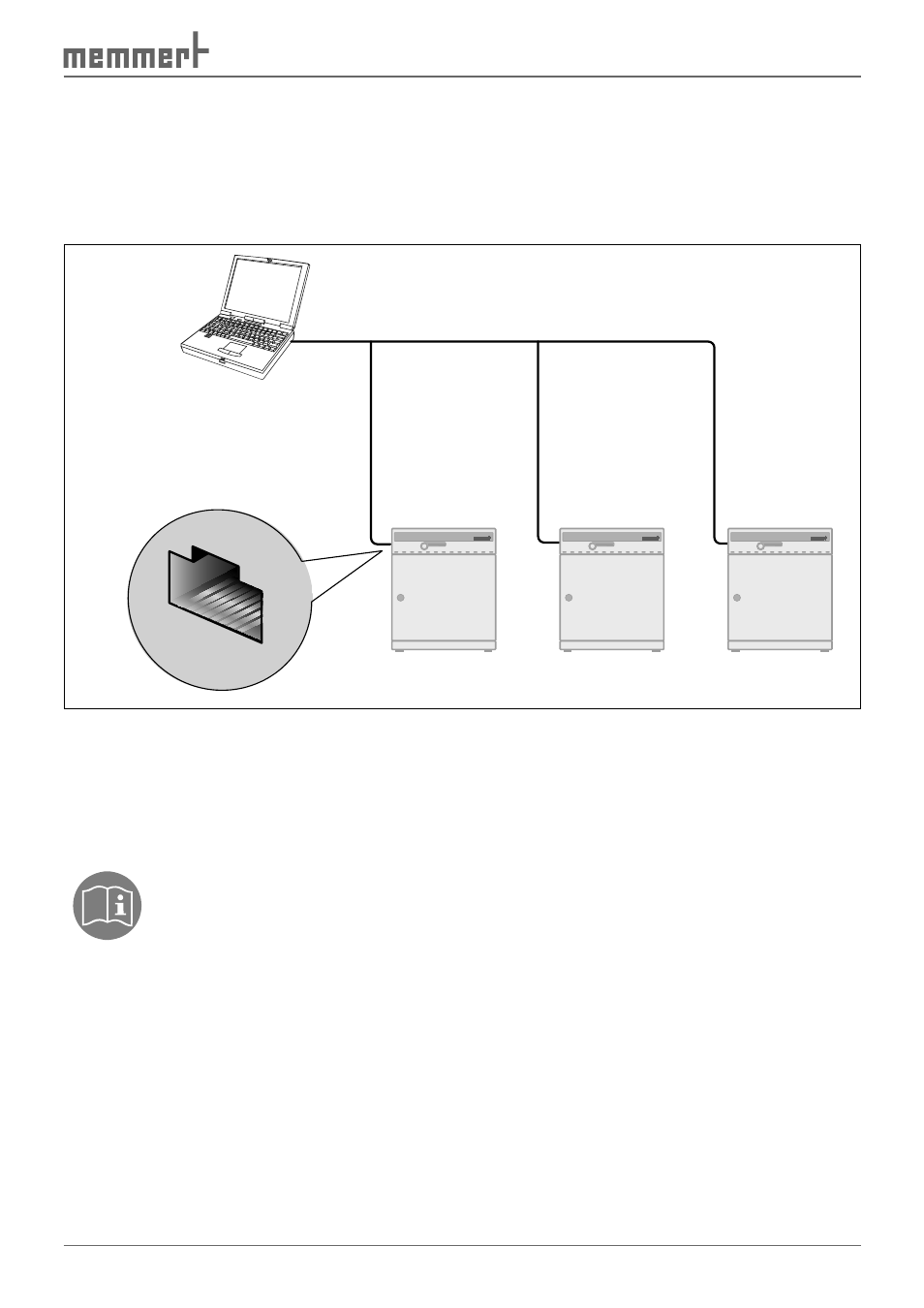

Fig. 35 Connecting one or more incubators to a network using an Ethernet interface
(schematic diagram)
For identification purposes, each appliance connected must have its own unique IP address.
Each chamber is delivered by default with the IP address 192.168.100.100. The program
“XTADMIN”, which can be found on the CD-ROM provided, can be used to change the IP ad-
dress.
Setting the IP address is described in a separate manual.
