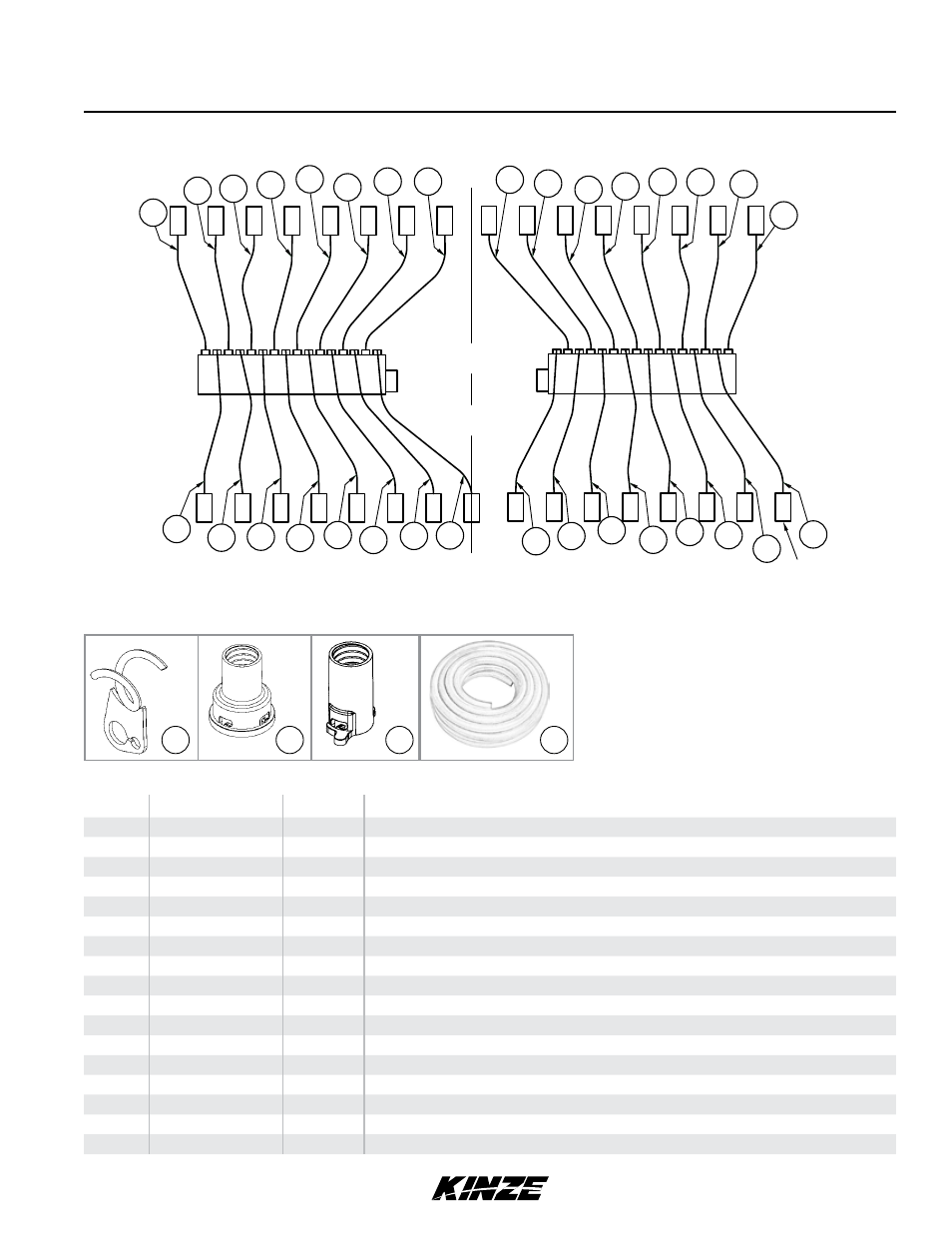

ASD Hoses, 16 Row
(IP1246)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA13800
1
Hose Assembly, 1¼" x 218"
2
GA13801
2
Hose Assembly, 1¼" x 192"
3
GA13802
4
Hose Assembly, 1¼" x 161"
4
GA13803
4
Hose Assembly, 1¼" x 133"
5
GA13804
1
Hose Assembly, 1¼" x 101"
6
GA13805
5
Hose Assembly, 1¼" x 71"
7
GA13826
1
Hose Assembly, 1¼" x 176"
8
GA13807
5
Hose Assembly, 1¼" x 82"
9
GA13808
2
Hose Assembly, 1¼" x 93"
10
GA13809
1
Hose Assembly, 1¼" x 205"
11
GA13810
2
Hose Assembly, 1¼" x 225"
12
GA13817
2
Hose Assembly, 1¼" x 246"
13
GA13824
2
Hose Assembly, 1¼" x 103"
14
GA14593
-
Hose Holder (Used on Rows 1, 2, 15, and 16)
15
GB0425
-
Dissipator Quick Coupler
16
GB0429
-
Seed Entrainer Quick Coupler
17
GR1947
-
Bulk Fill Hose, 1" I.D. x 1¼" O.D. x 100'
ITEM PART NO.
DESCRIPTION
QTY
1
A13800
SEED HOSE ASSY, 1 1/4"" X 218
1
2
A13801
SEED HOSE ASSY, 1 1/4"" X 192
1
3
A13802
SEED HOSE ASSY, 1 1/4"" X 161
4
4
A13803
SEED HOSE ASSY, 1 1/4"" X 133
4
5
A13804
SEED HOSE ASSY, 1 1/4"" X 101
1
6
A13805
SEED HOSE ASSY, 1 1/4"" X 71
5
8
A13807
SEED HOSE ASSY, 1 1/4"" X 82
5
9
A13808
SEED HOSE ASSY, 1 1/4"" X 93
2
10
A13809
SEED HOSE ASSY 1-1/4 X 205
1
11
A13810
SEED HOSE ASSY 1-1/4 X 225
2
12
A13817
SEED HOSE ASSY 1-1/4 X 246
2
13
A13824
SEED HOSE ASSY 1-1/4 X 103
2
7
A13826
SEED HOSE ASSY 1-1/4 X 176
2
Row Units
Push Units
Air in
Air in
R.H. Rear of Machine
L.H. Rear of Machine
R.H. Entrainment
L.H. Entrainment
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Even
Row
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
12
11
7
3
4
9
6
8
12
11
2
3
5
6
8
10
3
4
13
8
6
6
6
1
2
3
4
13
8
9
8
4
14
15
16
17
