Tongue lock cylinder, Transport latch cylinder – Kinze 3600 Lift and Rotate Planter Rev. 5/14 User Manual
Page 168

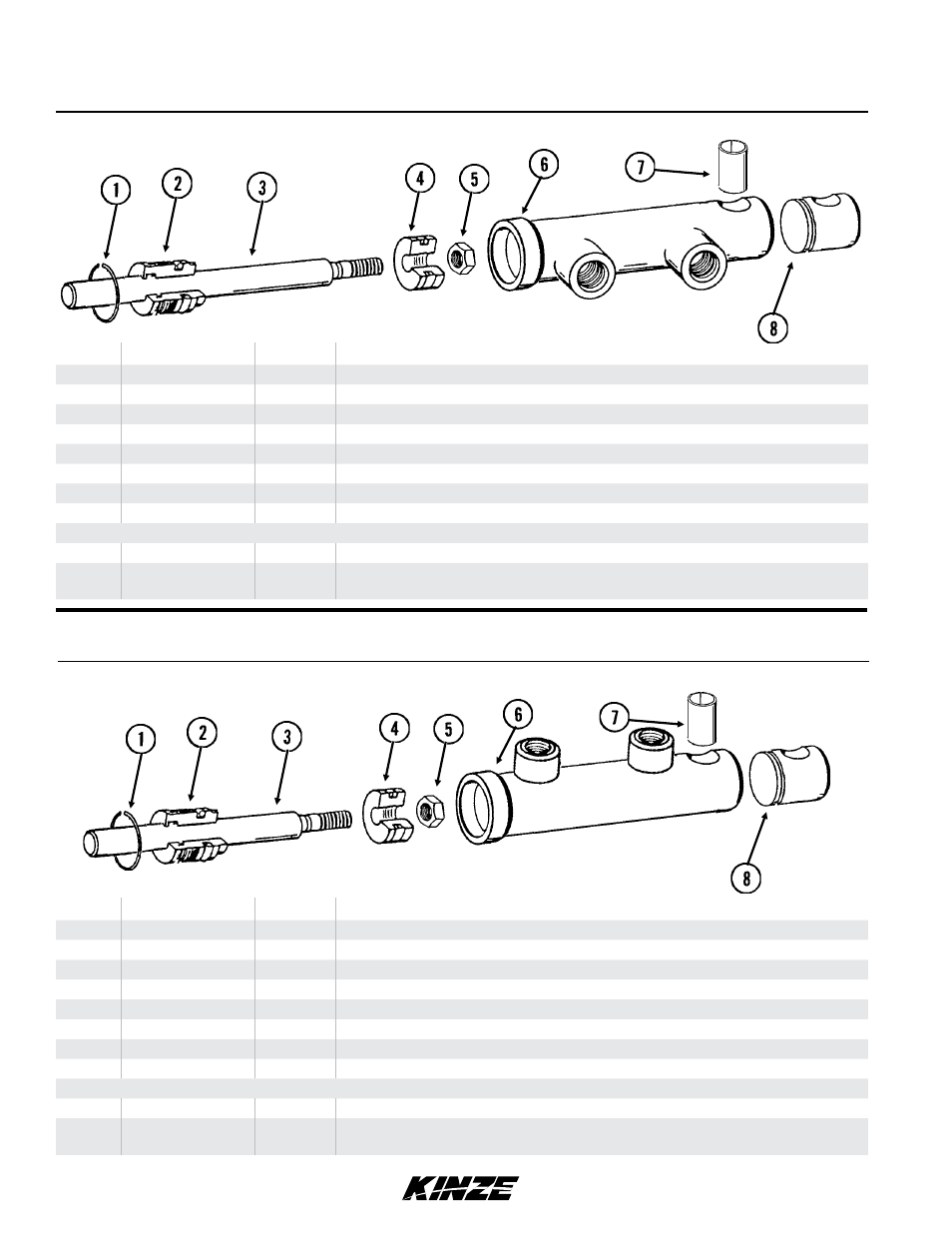

Tongue Lock Cylinder
ITEM
PART NO.
QTY.
DESCRIPTION
1
G10770
1
Internal Retaining Ring, 111∕16"
2
GD13170
1
Gland
3
GD13171
1
Rod
4
GD13172
1
Piston
5
GD27232
1
Nylon Lock Nut, ½"-20, Grade 8
6
D13169
1
Barrel
(Non-Stock Item)
7
GD13400
1
Tension Bushing, 1" x 2" Long
8
GD13173
1
End Cap
A
GA9205
-
Cylinder Complete, 1½" x 2½" (Part Number Stamped On Barrel)
B
GR1598
-
Seal Kit, Includes: (3) O-Rings, (2) BU Rings, (1) Wiper, (1) T-Seal, (1) Bronze
Bushing, (1) Seal, (1) U-Cup
ITEM
PART NO.
QTY.
DESCRIPTION
1
G10770
1
Internal Retaining Ring, 111∕16"
2
GD13170
1
Gland
3
GD13425
1
Rod
4
GD13172
1
Piston
5
GD27232
1
Nylon Lock Nut, ½"-20, Grade 8
6
D13426
1
Barrel
(Non-Stock Item)
7
GD13400
1
Tension Bushing, 1" x 2" Long
8
GD13173
1
End Cap
A
GA9559
-
Cylinder Complete, 1½" x 2½" (Part Number Stamped On Barrel)
B
GR1598
-
Seal Kit, Includes: (3) O-Rings, (2) BU Rings, (1) Wiper, (1) T-Seal, (1) Bronze
Bushing, (1) Seal, (1) U-Cup
Transport Latch Cylinder
CYL035/CYL050(CYL9c)
CYL035(CYL9d)
TM
M0236-02
Model 3600
P165
Rev. 5/14
