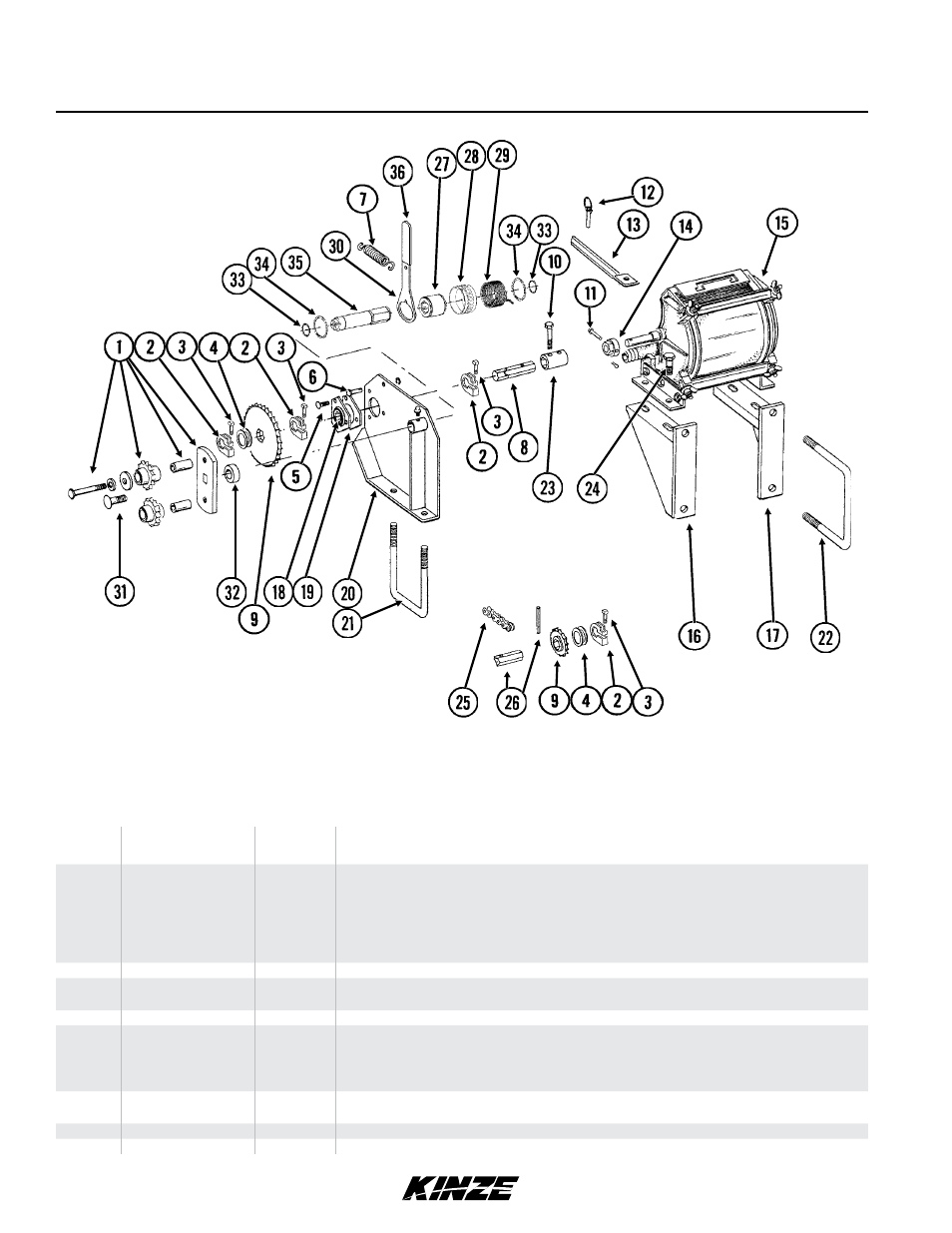

Liquid Fertilizer Squeeze Pump Drive
(TWL46ff)
ITEM
PART NO.
QTY.
(Per Side)
DESCRIPTION
1
GA7336
GD7426
GD1026
G11387
G10229
G10047
1
-
-
-
-
-
Idler W/Bolt-On Sprockets
Sprocket, 12 Tooth
Sleeve, 13∕16" Long
Flat Washer, ⅜" SAE
Lock Washer, ⅜"
Hex Head Cap Screw, ⅜"-16 x 1¾"
2
GD11045
4
Lock Clamp
3
G10130
G10923
4
4
Square Head Machine Bolt, 5∕16"-18 x 1¾"
Flange Nut, 5∕16"-18, No Serration
4
G10233
-
Machine Bushing, 1", 10 Gauge (As Required)
5
G10303
G11386
G10232
G10106
3
3
3
3
Carriage Bolt, 5∕16"-18 x 1"
Flat Washer, 5∕16" SAE
Lock Washer, 5∕16"
Hex Nut, 5∕16"-18
6
G10478
G10409
1
1
Clevis Pin, 5∕16" x 1"
Retaining Ring, 5∕16"
7
GD5857
1
Spring
8
GD2548-54
-
Hex Shaft, ⅞" x 54" (1 Hole), 12/16 Row
