Planter monitor module (pmm), Item part no. qty. description – Kinze 3600 Lift and Rotate Planter Rev. 5/14 User Manual
Page 208

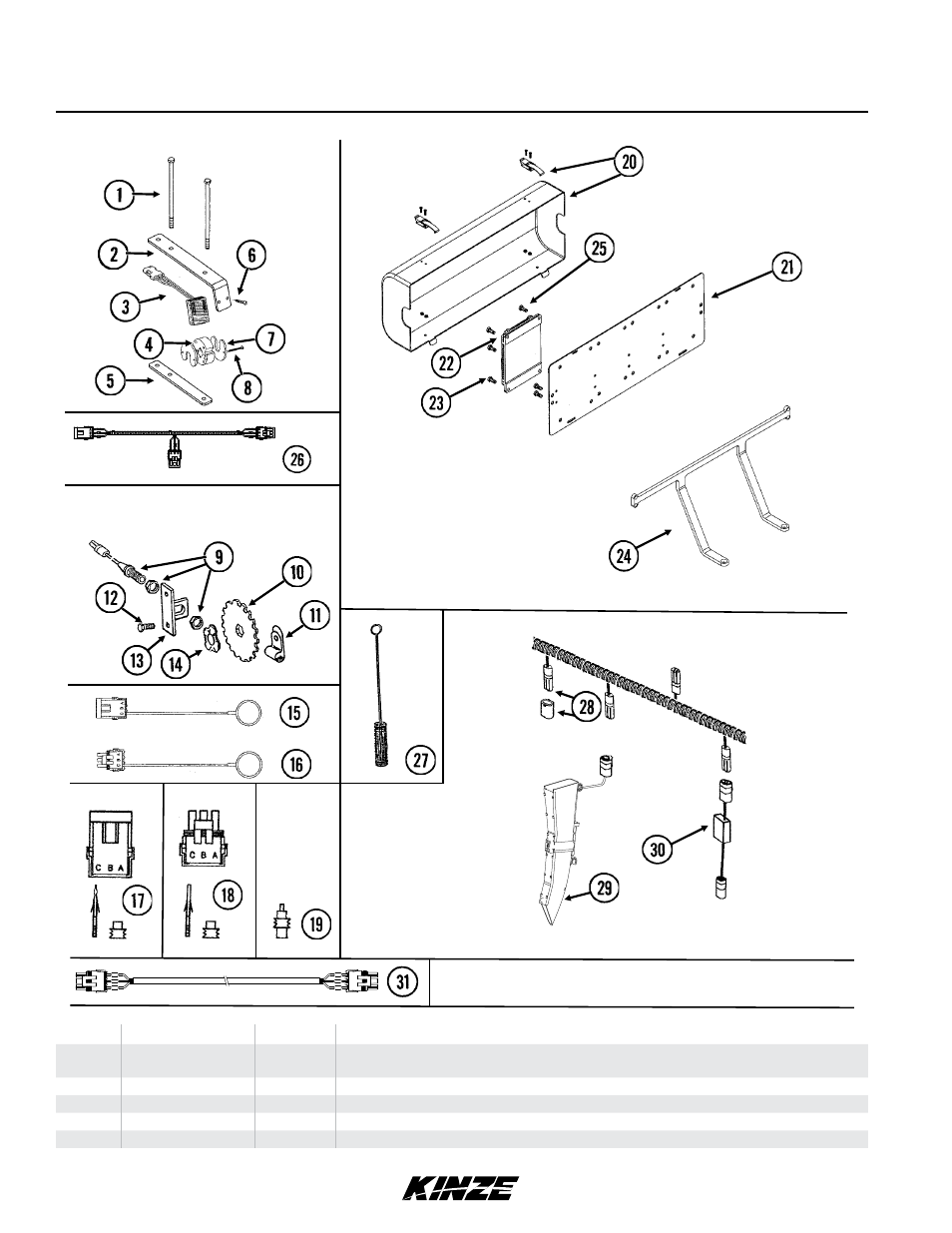

Planter Monitor Module (PMM)
Planter
Harness
Magnetic
Distance
Sensor
(MDS)
Adapter
Magnetic Distance Sensor (MDS)
Shaft Rotation Sensor
BLK
GRN
WHT
GRN
BLK
WHT
WHT
BLK
GRN
ITEM
PART NO.
QTY.
DESCRIPTION
1
G10686
G11091
4
4
Hex Head Cap Screw, ⅜"-16 x 8"
Serrated Flange Nut, ⅜"-16
2
GD18118
2
Shaft Sensor Mount
3
GR1415
1
Rotation Sensor
4
GR1414
1
Actuator
5
GD18168
2
Mount
A
C
B
GRN
BLK
WHT
BLK
C
A
B
GRN
WHT
