Kinze 3600 Lift and Rotate Planter Rev. 5/14 - Manual (Page 159)

1 ASSY MARKER STAND SUPPORT A14395 -
1 WELD MARKER STAND SUPPORT A14394 1
3 U-BOLT, 3 SQ X 1/2-13 PLTD D4743 2
6 NUT-FLG SER 1/2-13 HDN CS PLT 10071
1 ASSY MARKER STAND LH A14381 -
1 WELD MARKER STAND A14402 3
1 BAR, MARKER STAND D9981 4
2 U-BOLT, 2 SQ X 1/2-13 PLTD D2721 5
2 U-BOLT, 3 SQ X 1/2-13 PLTD D4743 6
8 NUT-FLG SER 1/2-13 HDN CS PLT 10071
1 STOP, RUBBER MOLDED A9088 7
2 HHCS 1/2-13 X 1-1/2 GR5 CS PLT 10017 8
2 WASHER-FLAT 1/2 HDN CS PLT SAE 11389
2 LOCKNUT-HEX TPL 1/2-13 GRB CS PLT 10111
1 HHCS, 5/8-11 X 3-1/2 GR5 PLTD 10013 9
1 WASHER-FLAT 5/8 HDN CS PLT SAE 11391
1 BUSHING, .880 OD X .645 X .580/.590 B0218
1 WASHER, SPECIAL FORMED - PLTD D10088
1 LOCKNUT-HEX TPL 5/8-11 GRB CS PLT 10107
1 WELD, CHAIN LOCK-UP A13340 10
QTY DESCRIPTION PART NUMBER ITEM
IP1260
JASON LUCAS
8
7
9
10
5
3
6
4
1
2
(IP1260)

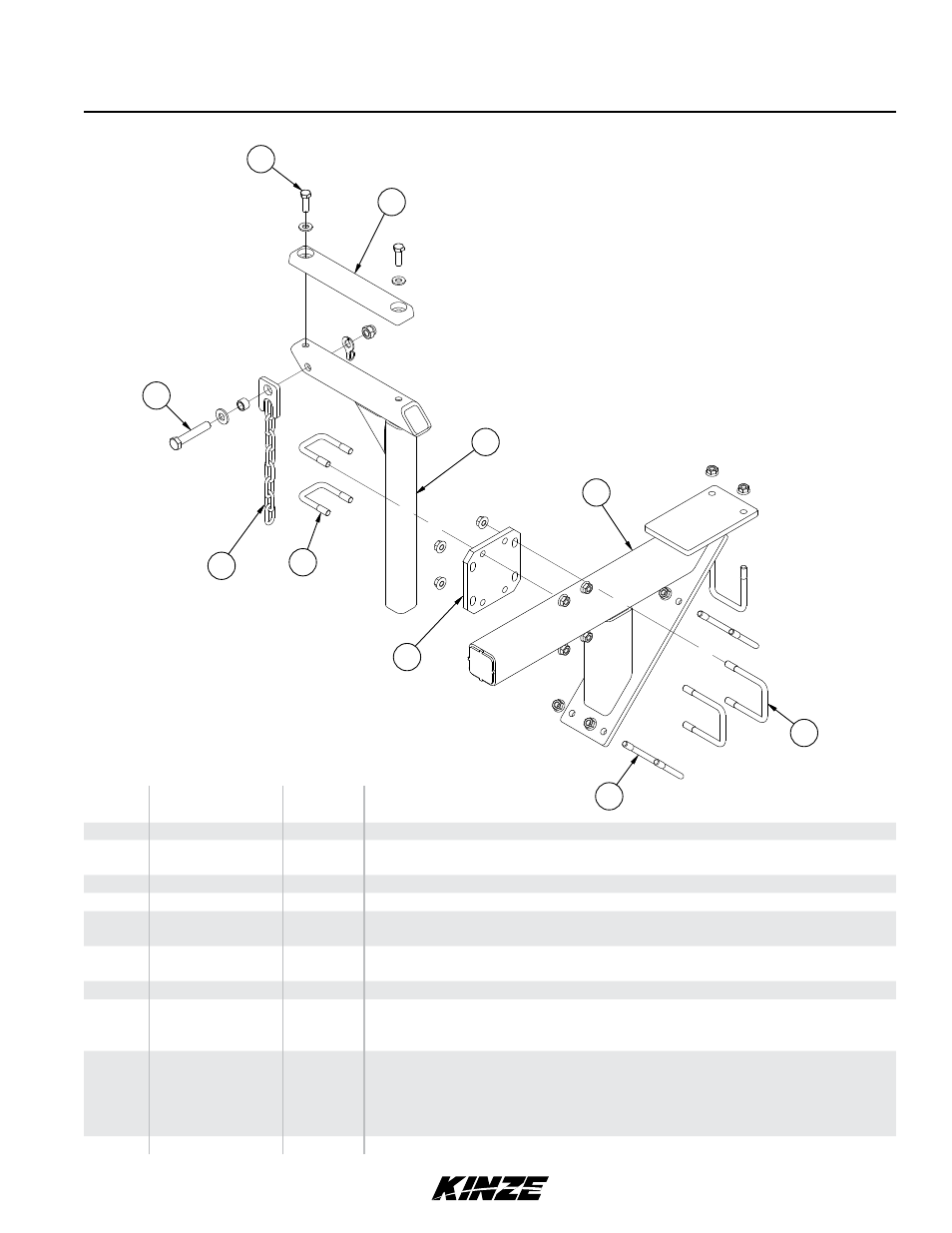

Row Marker Stand
ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GA14394 1 Marker Support Stand (Prior to 2012 Production)
2 GD4743
G10071 3
6 U-Bolt, 3" x 3" x ½"-13 (Prior to 2012 Production)
Serrated Flange Nut, ½"-13 (Prior to 2012 Production)
3 GA14402 1 Marker Stand
4 GD9981 1 Marker Stand Bar
5 GD2721
G10071 2
4 U-Bolt, 2" x 2" x ½"-13
Serrated Flange Nut, ½"-13
6 GD4743
G10071 2
4 U-Bolt, 3" x 3" x ½"-13
Serrated Flange Nut, ½"-13
7 GA9088 1 Molded Stop, 12¼" Long
8 G10017
G11389
G10111 2
2
2 Hex Head Cap Screw, ½"-13 x 1½"
Flat Washer, ½" SAE
Lock Nut, ½"-13
9 G10013
G11391
GB0218
GD10088
G10107 1
1
1
1
1 Hex Head Cap Screw, ⅝"-11 x 3½"
Flat Washer, ⅝" SAE
Bushing, 21∕32" I.D. x ⅞" O.D. x 19∕32" Long
Special Washer
Lock Nut, ⅝"-11
10 GA13340 1 Chain Lockup
L.H. Shown
Model 3600 M0236-02
Rev. 7/11 P156
