Kinze 3600 Lift and Rotate Planter Rev. 5/14 - Manual (Page 163)

1 BARREL WELD, 4" A7220 1
2 O-RING PLUG, 3/4-16 HEX HEAD 6408-08 2
1 LOCKNUT, HEX THIN, 1-1/4-12 GR C PLN 10972 3
2 PISTON RING, 4" CAST IRON W/GROOVE D12040 4
1 PISTON SEAL, PTFE 4" D12072 5
1 ENERGIZER, SEAL 4" #153 VITON D12224 6
1 PISTON, 4" D11992 7
1 O-RING # 124, 75D VITON D12223 8
1 ROD, CYL 1-1/2" D11991 9
1 O-RING #342, 75D VITON D12221 10
1 BACK-UP RING #342, 53D POLYMYTE D12222 11
1 U-CUP LIP SEAL, 1-1/2 SPRING LOADED D12252 12
1 HEAD GLAND, 4 BORE 1-1/2 ROD D11988 13
1 ROD WIPER, 1-1/2" POLYMYTE D12206 14
1 RING, LATHE CUT 1-1/2" D12103 15
1 NUT-HEX JAM 1-1/4-12 10509 16
1 WELD, BALL JOINT A7221 17
QTY DESCRIPTION PART NUMBER ITEM
IP1249
JASON LUCAS
2
1
3
4
5
6
7
4
8
9
10
11
12
13
14
15
16
17

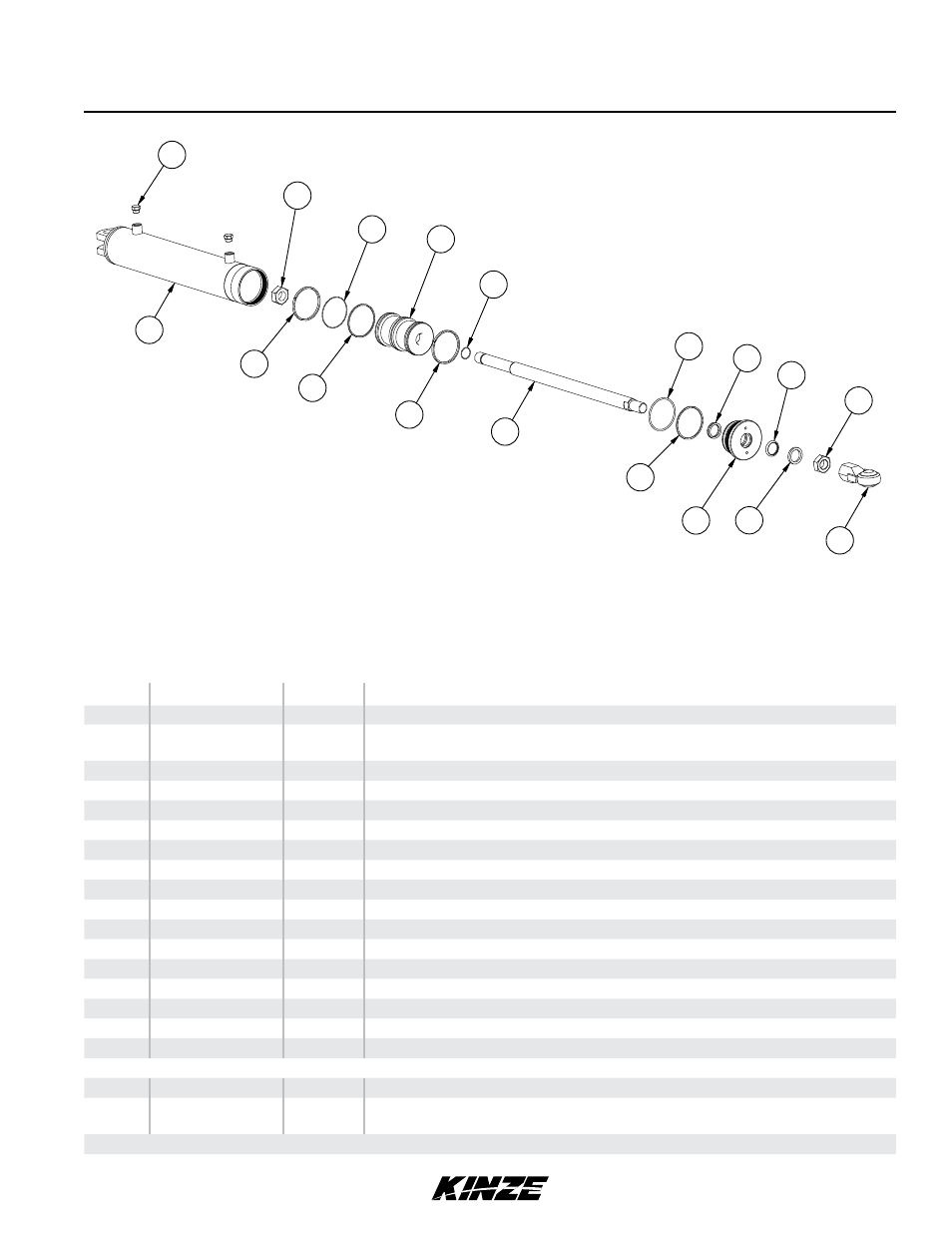

Rotation Cylinder
ITEM PART NO. QTY. DESCRIPTION
1 A7220 1 Barrel (Non-Stock Item)
2 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3 GD27237 1 Nylon Lock Nut, 1¼"-12, Grade 8
4 *D12040 2 Cast Iron Ring
5 *D12072 1 Piston Seal
6 *D12224 1 Expander
7 GD11992 1 Piston
8 *D12223 1 O-Ring
9 GD11991 1 Rod
10 *D12221 1 O-Ring
11 *D12222 1 Backup Ring
12 *D12252 1 U-Cup
13 GD11988 1 Gland
14 *D12206 1 Wiper
15 GD12103 1 Ring
16 G10509 1 Hex Jam Nut, 1¼"-12, Grade 2
17 GA7221 1 Threaded Ball Joint End
A GA8904 - Cylinder Complete, 4" x 16" (Part Number Stamped On Barrel)
B GR1524 - Seal Kit, Includes: (2) O-Rings, (1) U-Cup, (1) Wiper, (1) Seal, (2) Cast Iron Rings,
(1) Backup Ring, (1) Expander
* Item is part of seal kit, item can not be purchased individually.
(IP1249)
Model 3600 M0236-02
Rev. 5/14 P160
