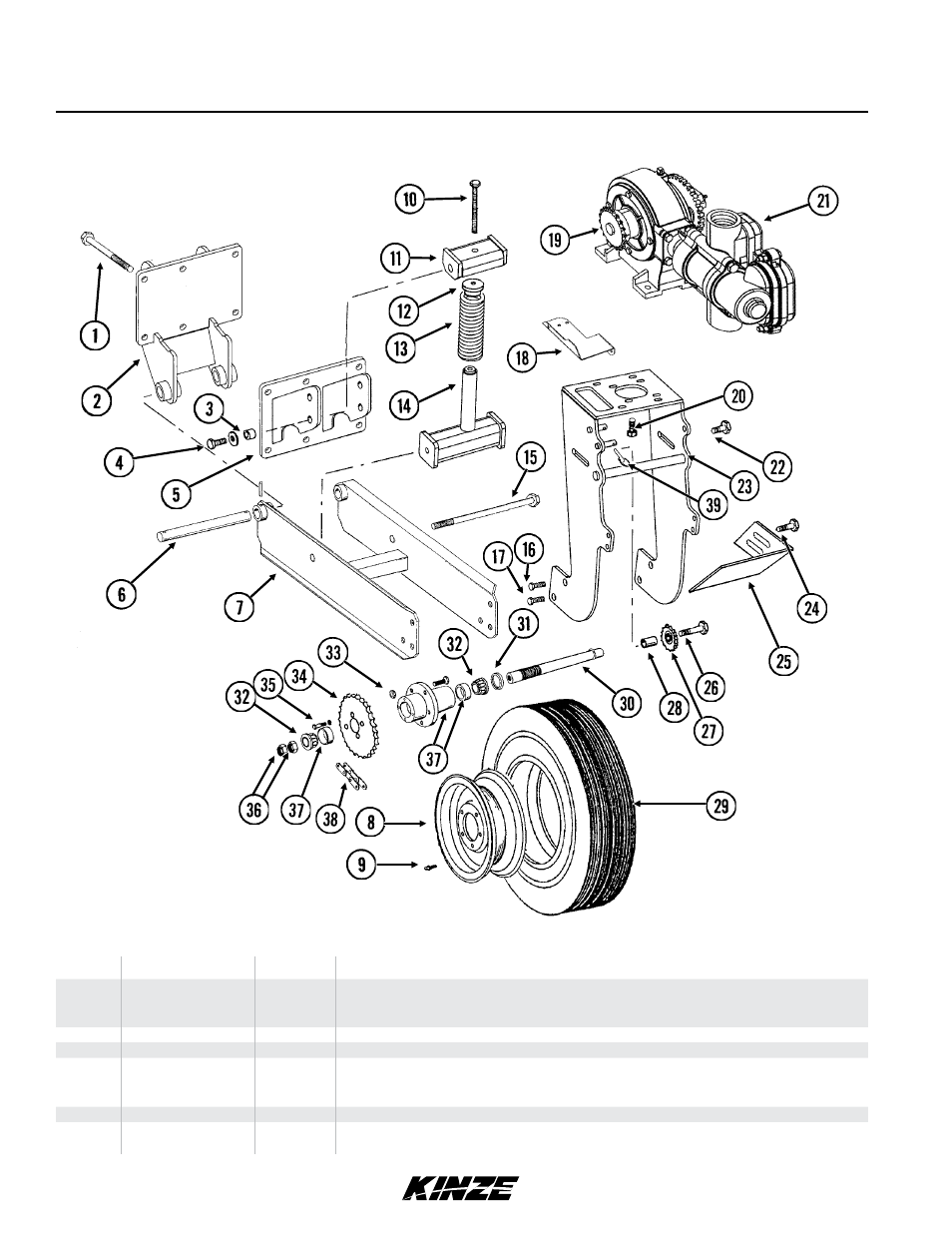

Liquid Fertilizer Piston Pump Mount and Ground Drive Wheel
(TWL219rr)
48 Tooth Drive Sprocket And 18 Tooth Driven Sprocket
18 Tooth
Sprocket
48 Tooth
Sprocket
ITEM
PART NO.
QTY.
DESCRIPTION
1
G10830
G10230
G10104
6
6
6
Hex Head Cap Screw, ⅝"-11 x 7½"
Lock Washer, ⅝"
Hex Nut, ⅝"-11
2
GA10624
1
Wheel Arm Mount
3
GB0218
2
Bushing, 21∕32" I.D. x ⅞" O.D. x 19∕32" Long
4
G10005
G11391
G10107
2
2
2
Hex Head Cap Screw, ⅝"-11 x 1¾"
Flat Washer, ⅝" SAE
Lock Nut, ⅝"-11
5
GA10622
1
Spring Mount
6
GD2681
G10460
1
2
Pin, 1¼" x 13½"
Cotter Pin, ¼" x 2"
