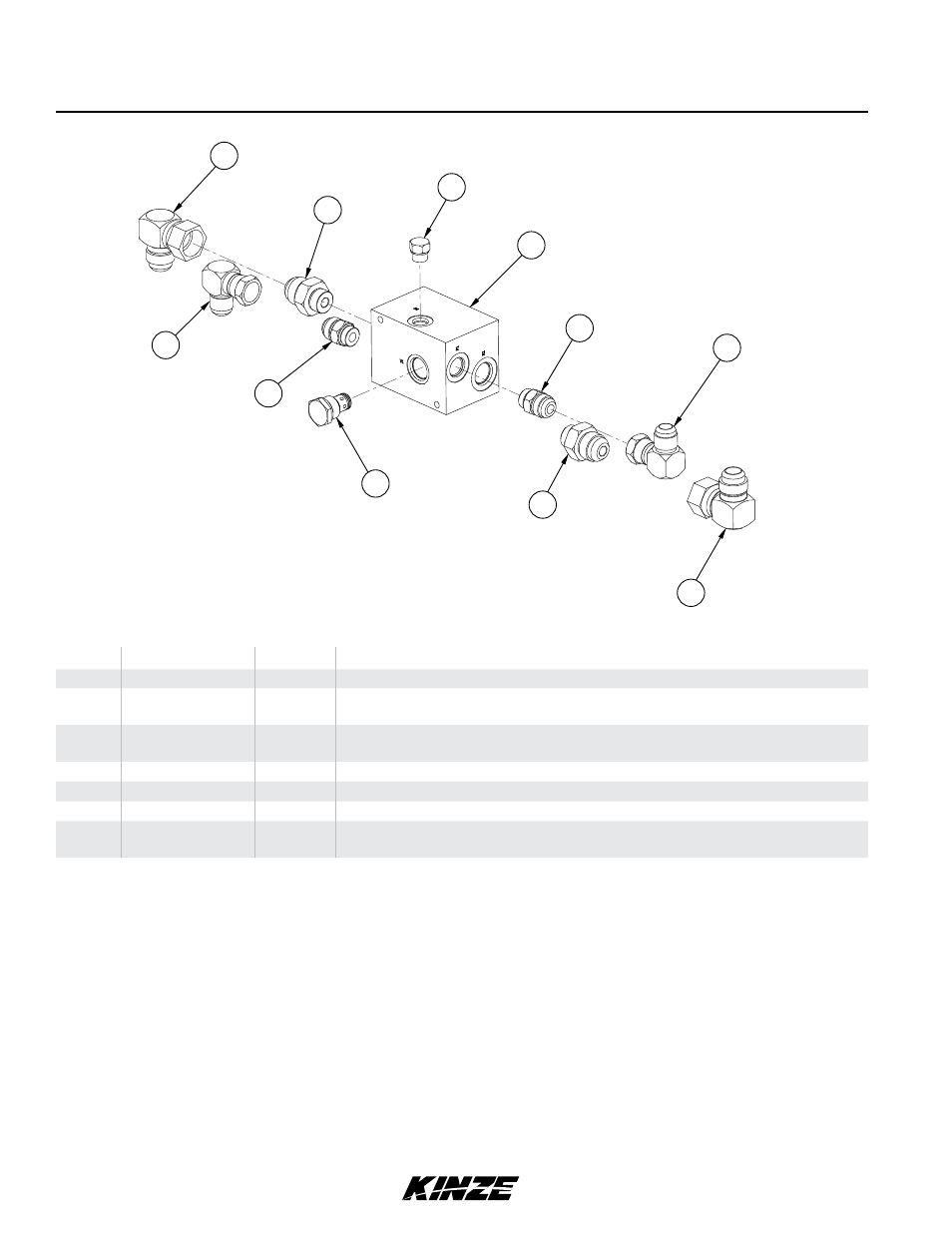

ASD Fan Valve Block
(IP1290)
6
4
5
3
7
2
1
3
5
4
6
ITEM
PART NO.
QTY.
DESCRIPTION
1
GD19123
1
ASD Fan Block
2
G6408-06
GR1045
1
-
Plug W/O-Ring, 9∕16"-18 O-Ring
O-Ring
3
G6400-10-08
GR1037
2
-
Connector W/O-Ring, ⅞"-14 Male JIC To ¾"-16 O-Ring
O-Ring
4
G6500-10
2
Swivel Elbow, 90°, ⅞"-14 Male JIC To Female
5
G6400-12-10
2
Connector W/O-Ring, 11∕16"-12 JIC To ⅞"-14 O-Ring
6
G6500-12
2
Swivel Elbow, 90°, 11∕16"-12 Male JIC To Female
7
GA4293
GR2041
1
-
Check Valve
Seal Kit
