Kinze 3600 Lift and Rotate Planter Rev. 5/14 - Manual (Page 165)

ITEM PART NO. QTY DESCRIPTION
1 A9467 1 Barrel (Non-Stock Item)
2 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3 GD27235 1 Nylon Lock Nut, 1"-14, Grade 8
4 *D12110 2 Cast Iron Piston Ring
5 *D12108 1 Piston Seal
6 *D12257 1 Energizer Seal
7 GD13304 1 Piston
8 *D12208 1 O-Ring, No. 214
9 *D12227 1 O-Ring, No. 336
10 *D12228 1 Back-Up Ring
11 *D12252 1 U-Cup
12 GD13302 1 Gland
13 *D12206 1 Wiper, 1½"
14 GD13303
G10907 1
1 Cap
Set Screw, ¼"-20 x ¼"
15 GD12103 1 Ring
16 GA8157 1 Rod
A GA9468 - Cylinder Complete, 3¼" x 6" (Part Number Stamped On Barrel)
B GR1573 - Seal Kit, Includes: (1)Wiper, (2) O-Rings, (1) Back-up Ring, (1) U-Cup, (1) Seal, (2)
Cast Iron Rings, (1)Energizer Seal
* Item is part of seal kit, item can not be purchased individually.

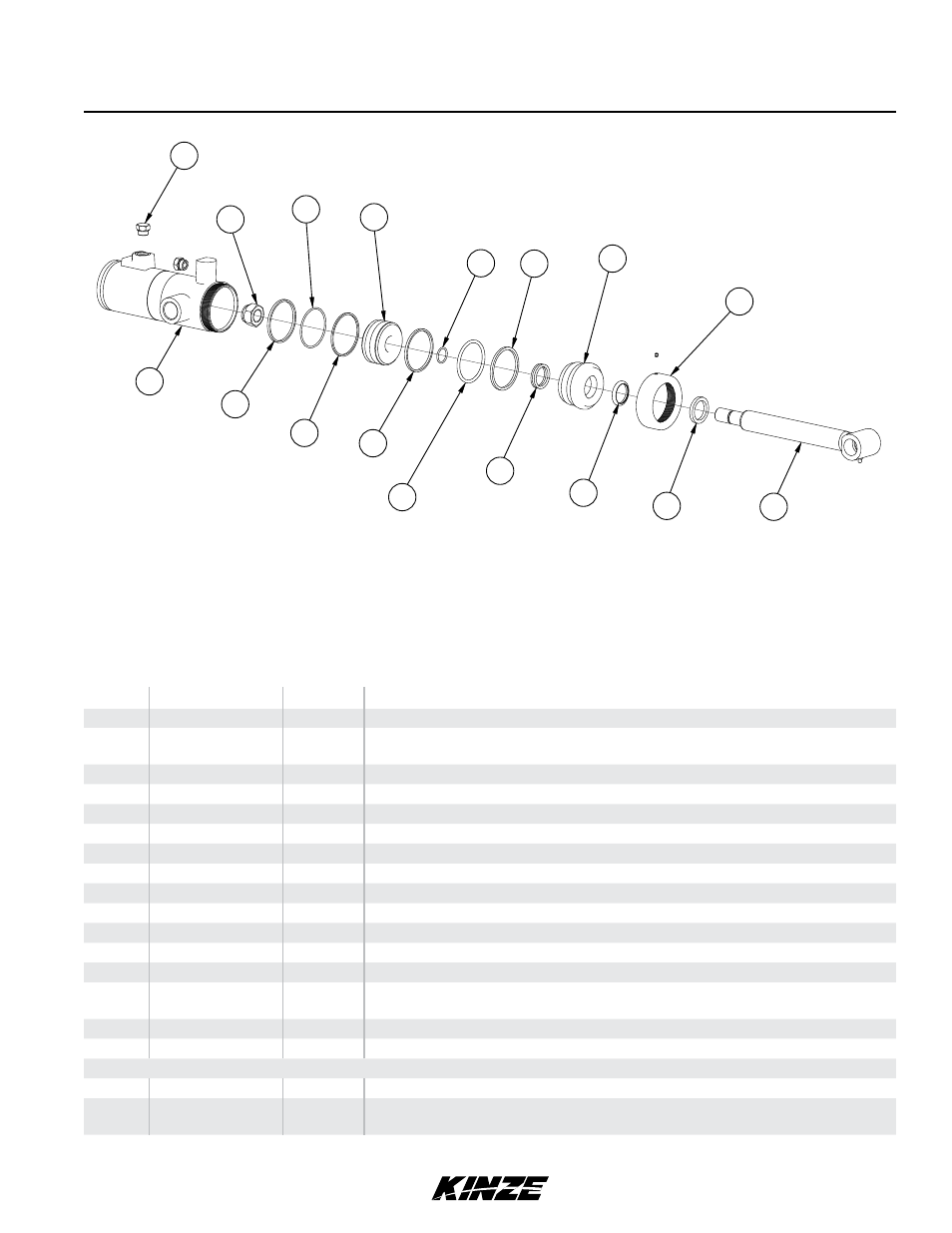

Wing Lift Cylinder, 16 Row
2
3
1
4
5
6
7
4
8
9
10
11
12
13
14
15 16
(IP1253)
Model 3600 M0236-02
Rev. 5/14 P162
