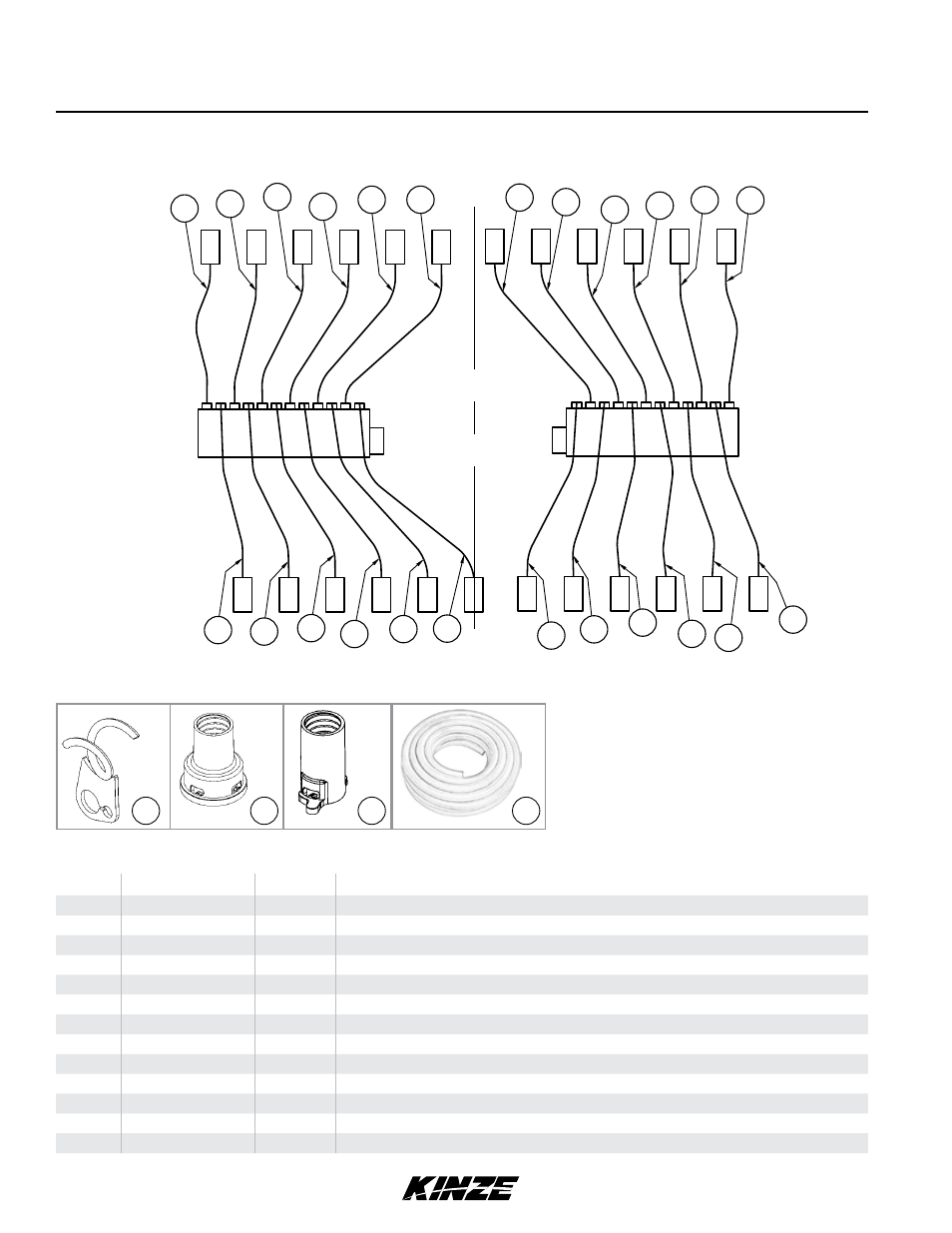

ASD Hoses, 12 Row
(IP1245)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA13802
3
Hose Assembly, 1¼" x 161"
2
GA13803
4
Hose Assembly, 1¼" x 133"
3
GA13805
5
Hose Assembly, 1¼" x 71"
4
GA13801
1
Hose Assembly, 1¼" x 192"
5
GA13807
5
Hose Assembly, 1¼" x 82"
6
GA13808
2
Hose Assembly, 1¼" x 93"
7
GA13824
2
Hose Assembly, 1¼" x 103"
8
GA13801
1
Hose Assembly, 1¼" x 192"
9
GA13804
1
Hose Assembly, 1¼" x 101"
10
GA14593
-
Hose Holder (Used on Rows 1 and 12)
11
GB0425
-
Dissipator Quick Coupler
12
GB0429
-
Seed Entrainer Quick Coupler
13
GR1947
-
Bulk Fill Hose, 1" I.D. x 1¼" O.D. x 100'
11
10
9
8
7
6
5
4
3
2
1
Even
Row
12
11
10
9
8
7
6
5
4
3
2
1
Row Units
Push Units
Air In
Air In
R.H. Rear of Machine
L.H. Rear of Machine
R.H. Entrainment
L.H. Entrainment
8
1
2
6
3
5
8
1
2
9
3
5
2
7
5
3
3
3
1
2
7
5
6
5
10
11
12
13
