Kinze 3600 Lift and Rotate Planter Rev. 5/14 - Manual (Page 169)

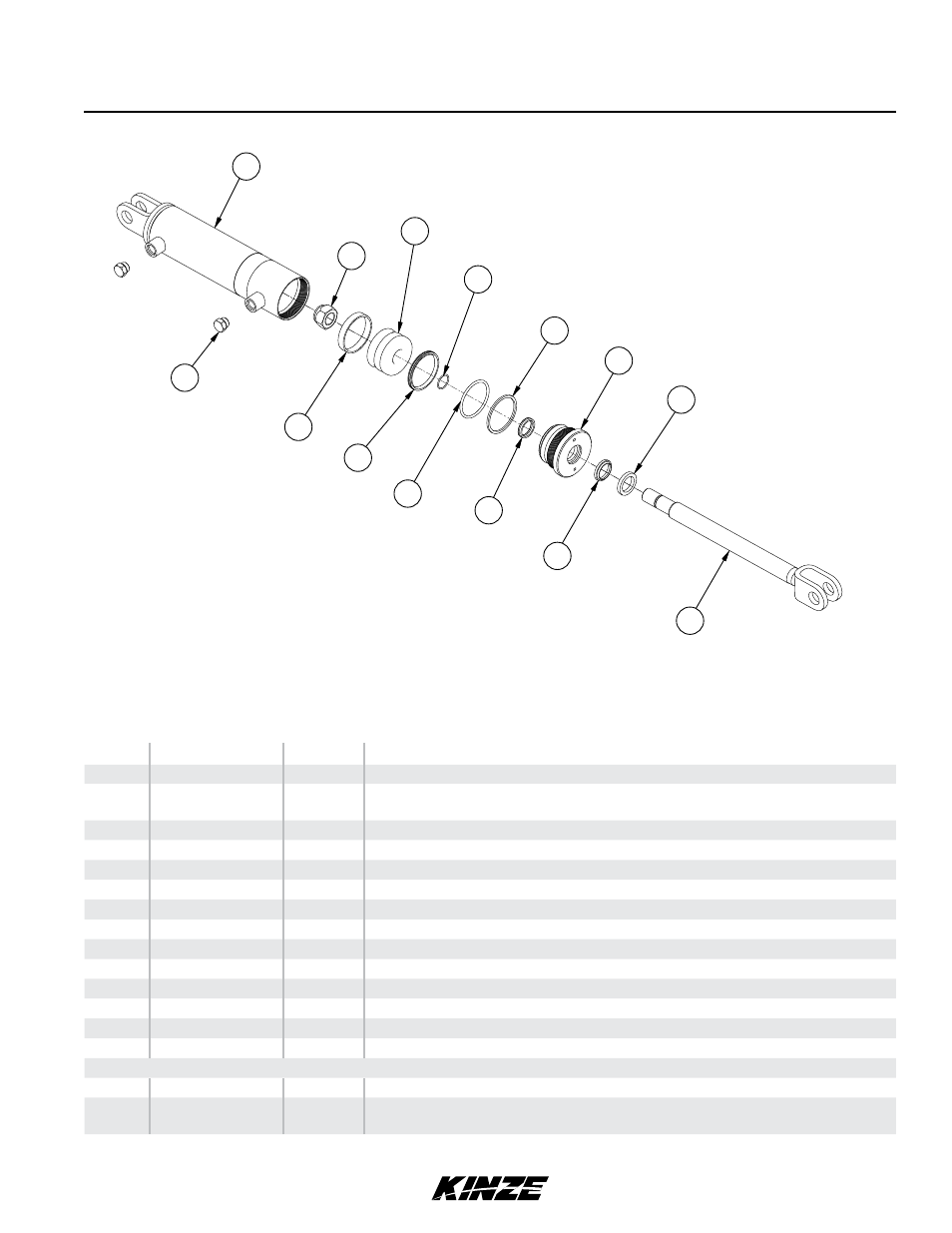

Wing Down Pressure Cylinder
(IP1285)
ITEM PART NO. QTY. DESCRIPTION
1 A14480 1 Barrel (Non-Stock Item)
2 G6408-08
GR1037 2
-
Plug W/O-Ring, 3/4"-16 O-Ring
O-Ring
3 GD27235 1 Nylon Lock Nut, 1"-14, Grade 8
4 *D12047 1 Wear Ring
5 GD12502 1 Piston
6 *D12278 1 T-Seal
7 *D12226 1 O-Ring, No. 120
8 *D12202 1 O-Ring, No. 334
9 *D12203 1 BU Ring
10 *D12251 1 U-Cup
11 GD11999 1 Gland
12 *D12210 1 Wiper
13 GD12102 1 Ring
14 GA14478 1 Rod
A GA14481 - Cylinder Complete, 3" x 8" (Part Number Stamped On Barrel)
B GR1526 1 Seal Kit, Includes: (1) Wear Ring, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1)
T-Seal
* Item is part of seal kit, item can not be purchased individually.
1 SEAL KIT, 3 BORE 1-1/4 ROD R1526 -
1 WELD BARREL 3 A14480 1
2 O-RING PLUG, 3/4-16 HEX HEAD 6408-08 2
1 LOCKNUT-HEX TPL 1-14 GRC PLN 10958 3
1 WEAR RING, 3" NYLON D12047 4
1 PISTON, 3" D12502 5
1 T-SEAL, 3" HNBR D12278 6
1 O-RING #120, 75D VITON D12226 7
1 O-RING #334, 75D VITON D12202 8
1 BACK-UP RING #334, 53D POLYMYTE D12203 9
1 U-CUP LIP SEAL, 1-1/4 SPRING LOADED D12251 10
1 HEAD GLAND, 3 BORE 1-1/4 ROD D11999 11
1 ROD WIPER, 1-1/4" POLYMYTE D12210 12
1 RING, LATHE CUT 1-1/4" D12102 13
1 WELD ROD 1-1/4 A14478 14
