CMS5000 Operating Manual
9 In the End Run column, enter the desired time for the next method to start or
the length of time to sleep before the next method starts. See
Figure 5-62 .
NOTE: Enter 0:00:00 to run the next method as soon as the previous one has
finished.

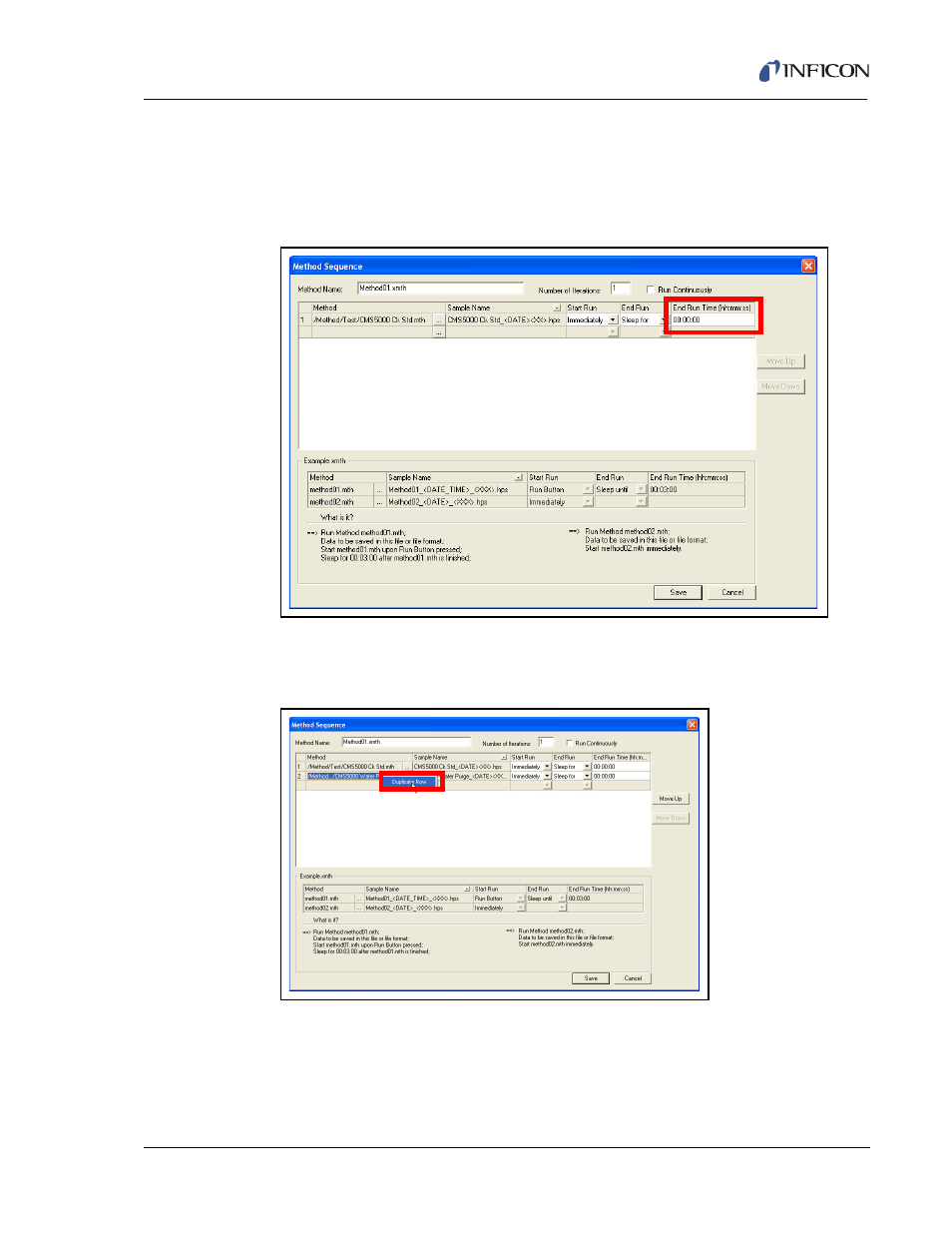

Figure 5-62 Time Column
10 Repeat steps 4-9 to add additional methods for sequencing. Alternately,
right-click anywhere in the windowand select Duplicate Row. See
Figure 5-63 .
Figure 5-63 Duplicate Row
11 When the desired sequence has been entered, the user can either enter a
number up to repeat the sequence a set number of times (Number of
Iterations, see
Figure 5-64 ), or run a continuous loop of the sequence without
stopping (Run Continuously, see Figure 5-65 ).
