CMS5000 Operating Manual
16.3.2 Data Files

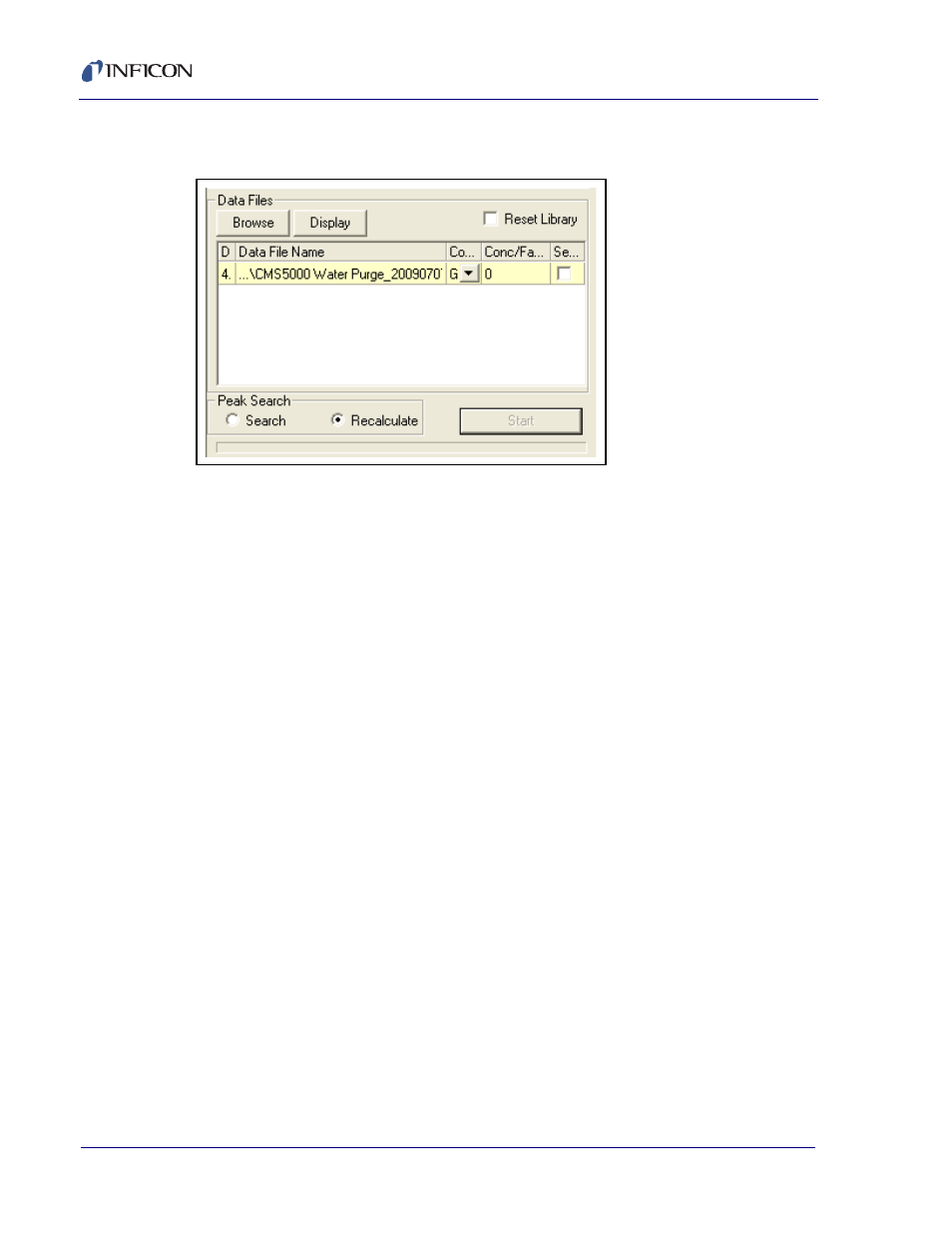

Figure 16-35 Data Files Section
Browse . . . . . . . . . . . . . . . . . . . . . . Selects the data files for building and
calibrating the library.
Data Ref. . . . . . . . . . . . . . . . . . . . . . Shows the data file reference number.
Data File Name . . . . . . . . . . . . . . . . Displays the data file name and path.
Conc Ref . . . . . . . . . . . . . . . . . . . . . Basis for calculating the concentration for
Global, which selected when all analytes are
at the same concentration, or Analyte, which
is selected when analytes are at various
concentrations.
Conc/Factor . . . . . . . . . . . . . . . . . . Enter the concentration of the analytes in this
column if Global is selected, because all
analyte concentrations are the same. If the
concentration of each analyte differs, the
user must enter each concentration into the
Calibration template and the user will select
Analyte. In this box, the factor by which to
multiply each analyte must be entered.
Selection . . . . . . . . . . . . . . . . . . . . . If checked, the file will be processed when
Start is selected.
Display . . . . . . . . . . . . . . . . . . . . . . Displays the chromatogram for the selected
data file.
Reset Library . . . . . . . . . . . . . . . . . If checked, the calibration curve will reset a
and all points currently contained in the
library will be deleted.
