CMS5000 Operating Manual
As Suffix . . . . . . . . . . . . . . . . . . . . . When Date and Time is selected, the date
and time are added to the end of the
filename. See
Figure 15-26 .

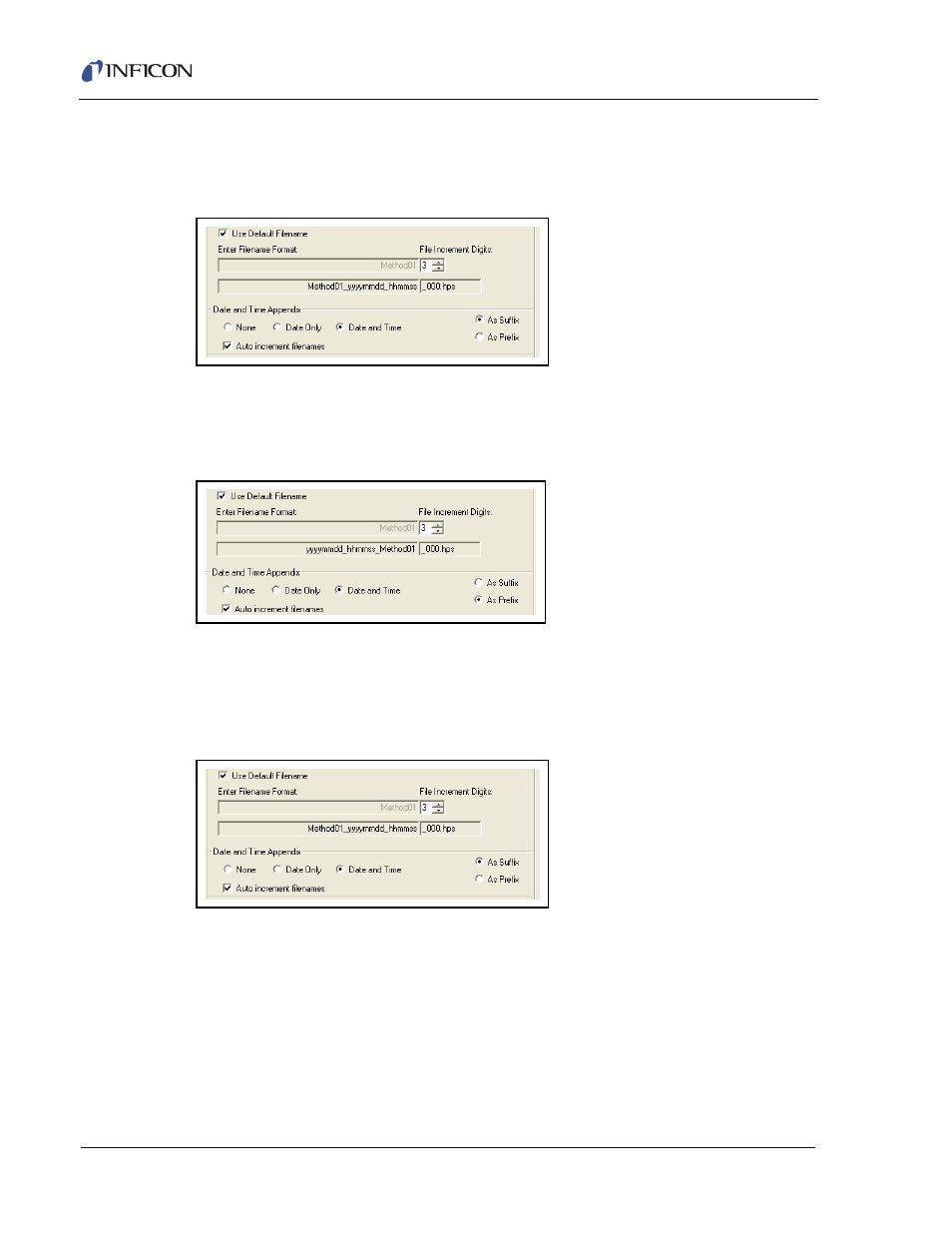

Figure 15-26 As Suffix
As Prefix . . . . . . . . . . . . . . . . . . . . . When Date and Time is selected, the date
and time are added to the beginning of the
filename. See
Figure 15-27 .
Figure 15-27 As Prefix
Auto Increment Filenames . . . . . . Only available when Date and Time is
selected. When checked, the filename will
automatically increment in sequential order.
See
Figure 15-28 .
Figure 15-28 Auto Increment Filenames
 yyyy is the year
 mm is the month
 dd is the day
 hh is the hour data collection was started
 mm is the minute data collection was started
 ss is the second data collection was started
