4 - 7

IP

N 07

4-

50

8-

P1

C

CMS5000 Operating Manual

7

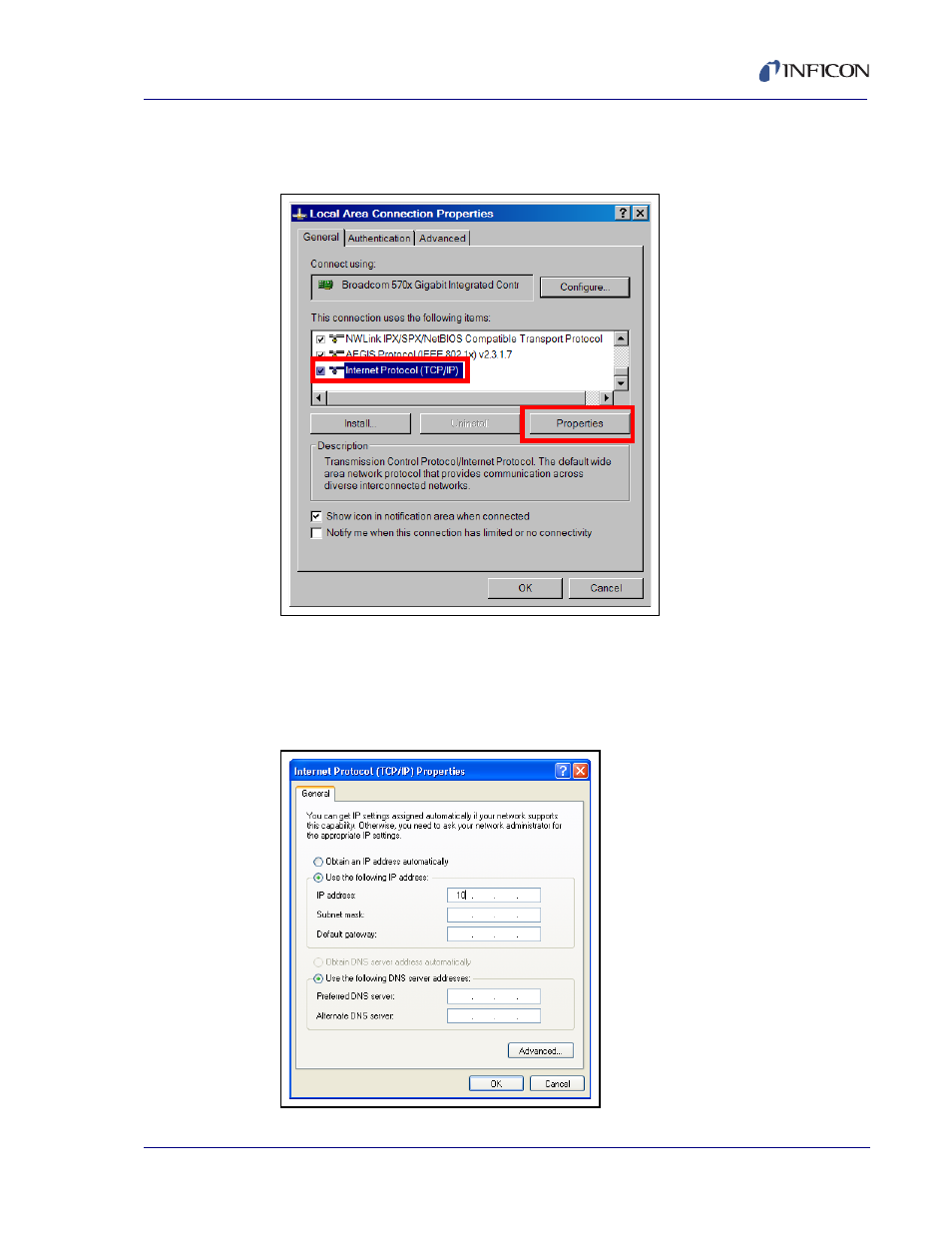

In the General tab, scroll down and highlight Internet Protocol (TCP/IP), click
Properties. See

Figure 4-16

.

Figure 4-16 Selecting Internet Protocol (TCP/IP)

8

Select Use the following IP address. Enter the first number of the IP address
into the first slot. For example, if the IP address is 10.210.50.107, enter 10 into
the first slot. Refer to

Step 2

on page 16-3 to find the IP address on the

CMS5000. See

Figure 4-17

.

Figure 4-17 Entering First Number of IP Address
