CMS5000 Operating Manual
20

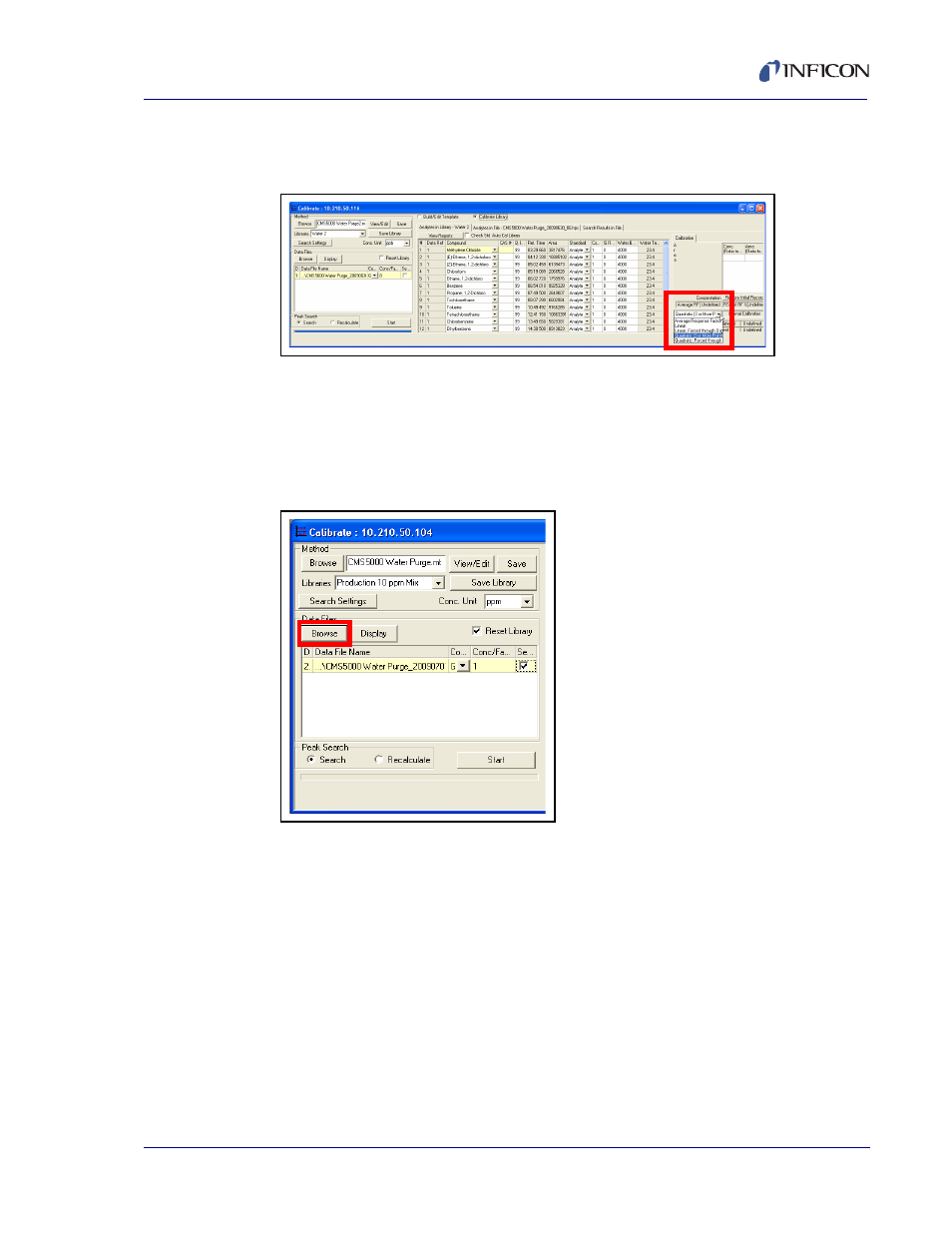

Select the curve fit in the Calibration tab by clicking on the desired fit in the
drop down menu. Refer to
.
Figure 16-17 Library Ready for Calibration
NOTE: Curve fit selection is based on the best fit of the data points
21
To select the remaining data files, click Browse in the Data Files section. See
Figure 16-18 Click Browse
