CMS5000 Operating Manual
3 Enter the IP Address for the CMS5000 into the Enter New CMS5000 Name or
IP Address. (The IP Address can be found on the Front Panel of the CMS5000
by touching STAT Scroll down using the DOWN key to select NET.) See
section
6.4, NET Option, on page 6-2 . An example of an IP address is 10.210.50.116.
Click Add. See Figure 4-3 .

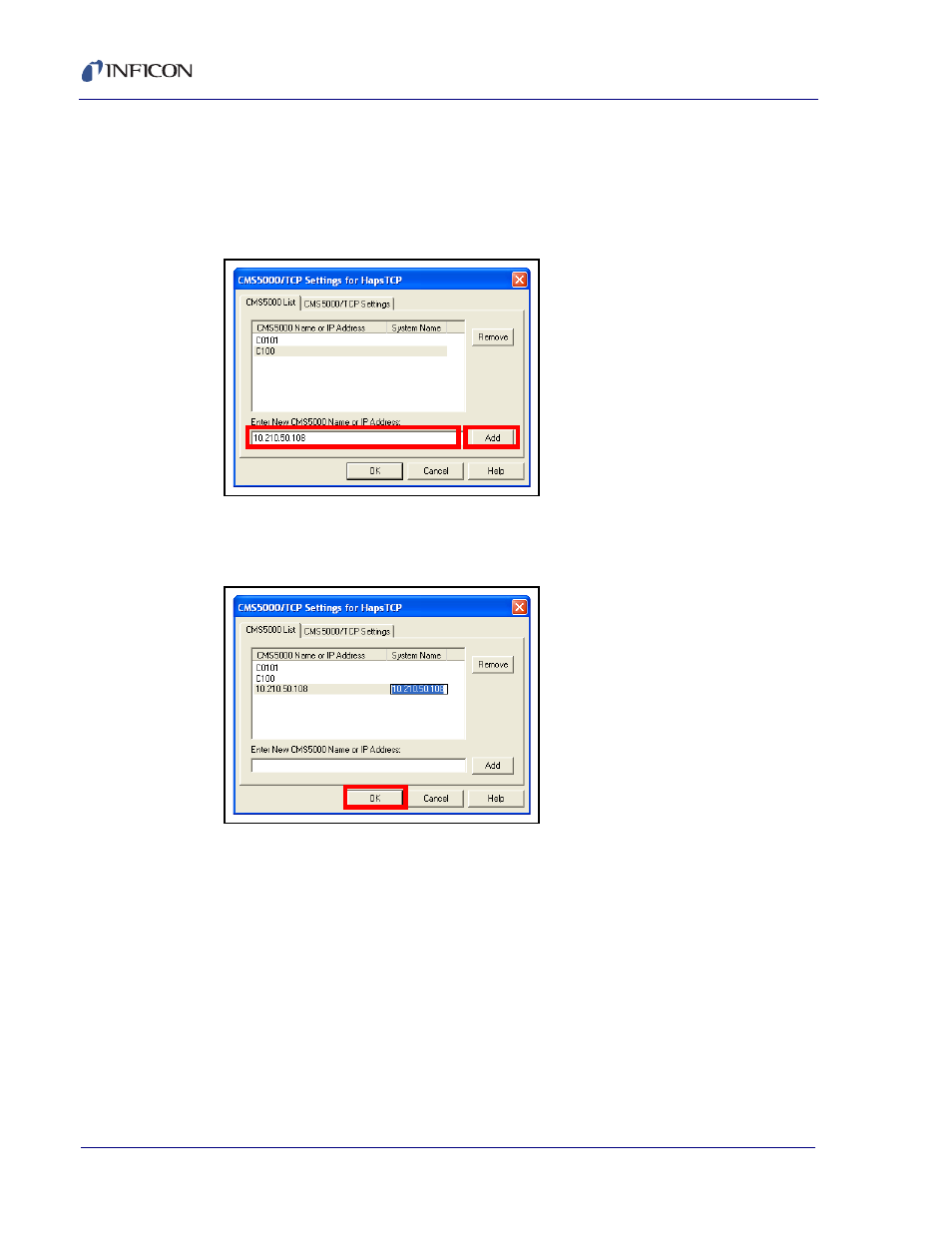

Figure 4-3 Add CMS5000
4 The newly added CMS5000 will be displayed in the CMS5000 List.
Double-click OK.
Figure 4-4 Closing the CMS5000/TCP Window
