CMS5000 Operating Manual
12.7.7 Properties
The sixth option on the Chromatogram Window menu is Properties. Refer to
Figure 12-14 on page 12-9 .The Properties option displays data review settings.
On the top left hand side, the current width of the data file, in terms of time, is
displayed. The Show Control Panel option, when checked, will always open the
Control Panel when opening a data file. See
Figure 12-43 .

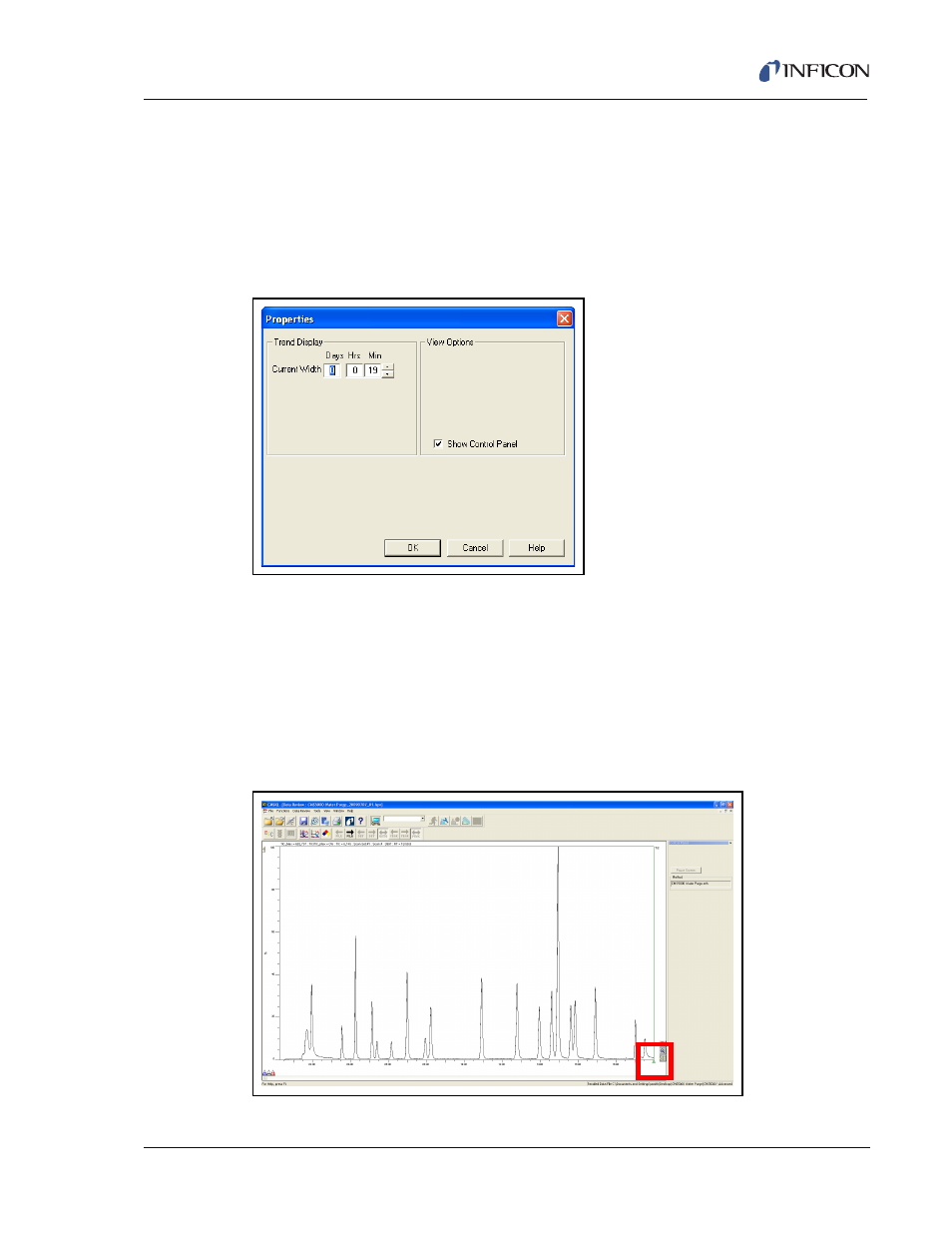

Figure 12-43 Properties
12.8 How to Access the Scan Cursor
The specific scan is accessed using the Scan Cursor in the chromatogram
window. Accessing the specific scan will display the overall maximum Response,
the scan Response, the Response/ Response Max (displayed as a percentage)
and the retention time of the scan. The cursor, a green triangle, is located at the
bottom right hand side of the screen See
Figure 12-44 .
Figure 12-44 Location of the Scan Cursor
