11.7 Front Panel Display Icon

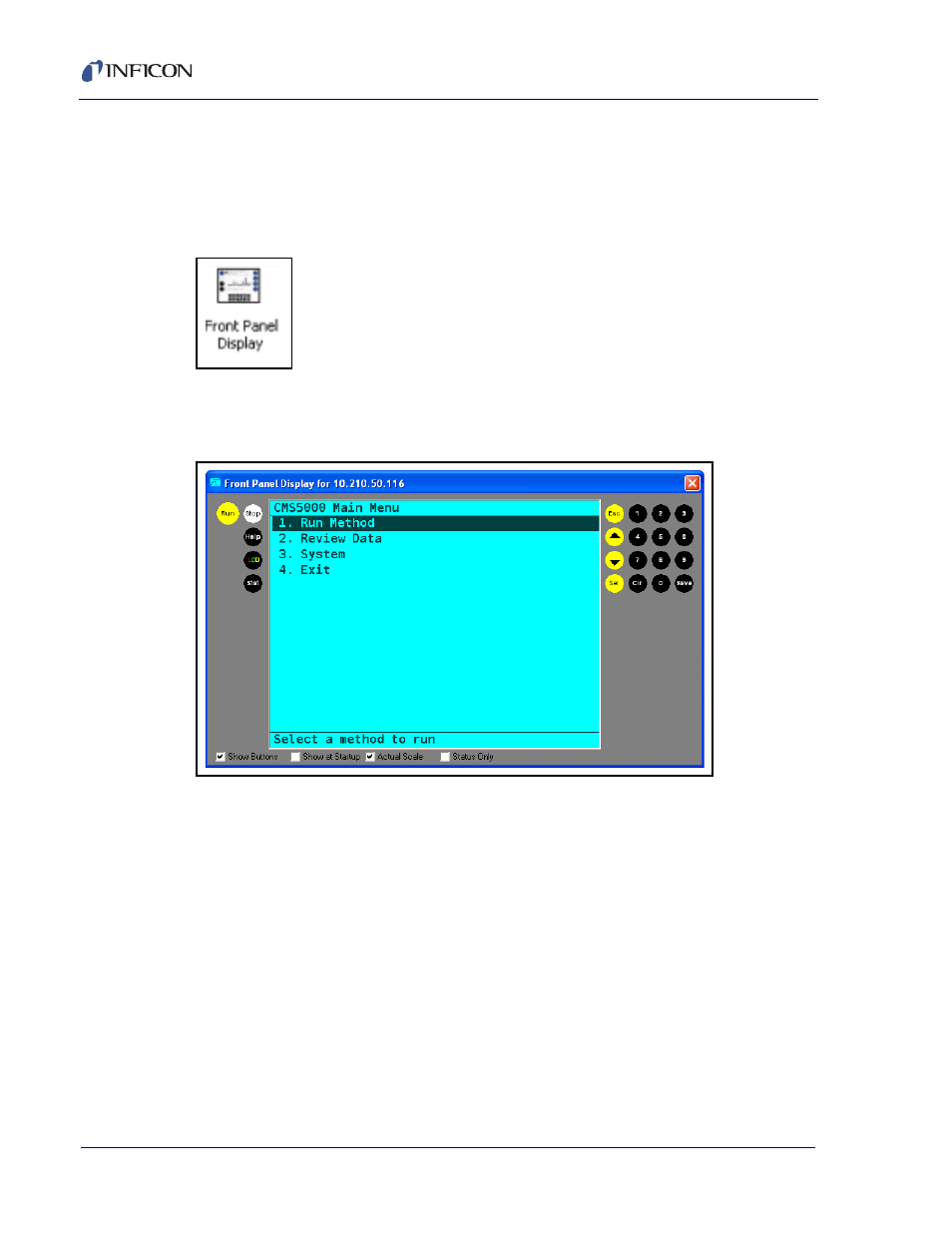

Double-clicking on the Front Panel Display icon will reveal an emulation on the
laptop of a CMS5000 front panel screen, which can be used to control the front
panel. See
Figure 11-91 Front Panel Display Icon
Double-click the Front Panel Display icon to open the emulation. See
.
Figure 11-92 Front Panel Display
All of the buttons on the emulation operate identically to their front panel
counterparts. To utilize the emulation, click on the desired button.
