CMS5000 Operating Manual

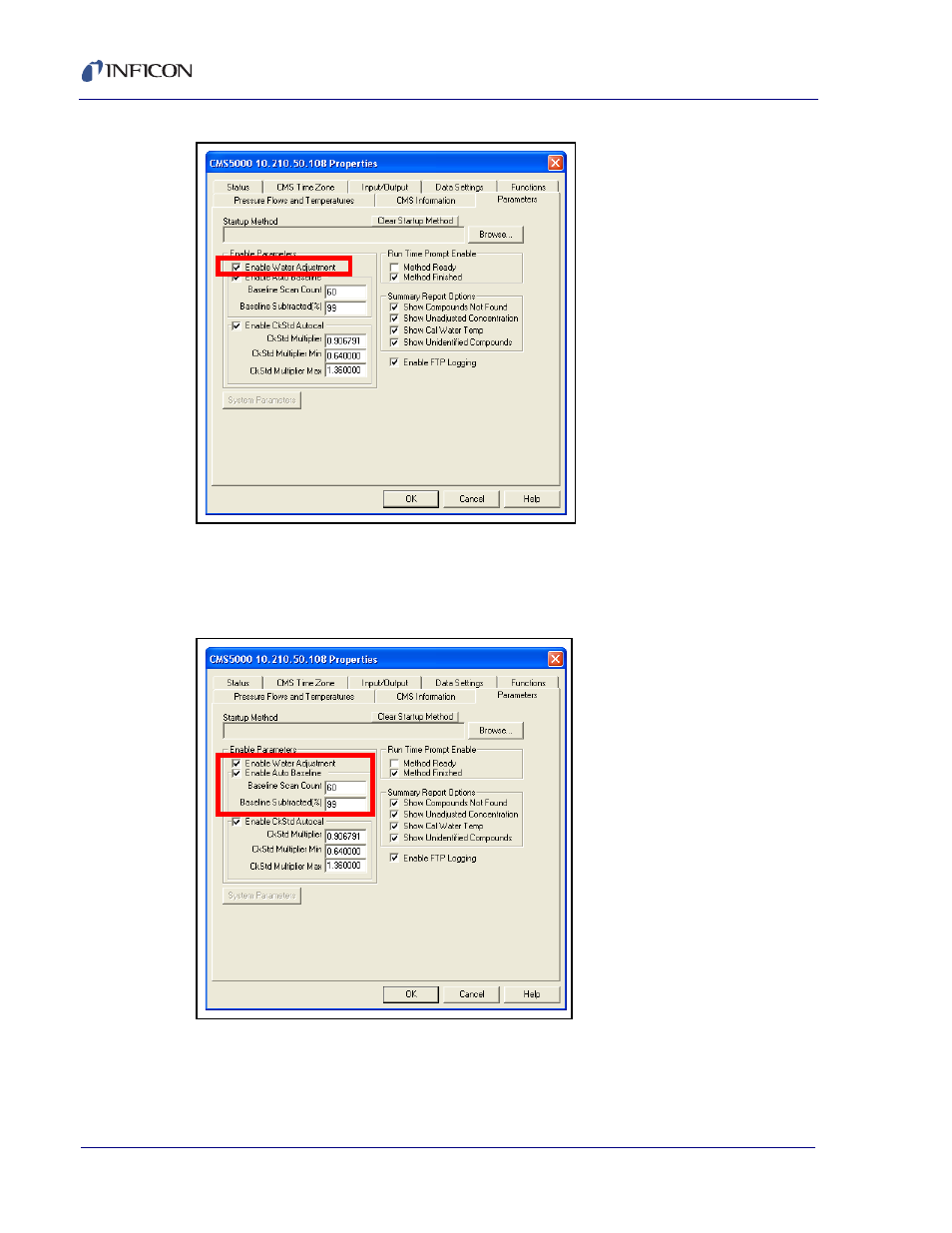

Figure 11-85 Enable Water Adjustment
To enable the Auto Baseline function, check the Enable Auto Baseline box. The
Auto Baseline function subtracts baseline interference from the peaks along the
entire scan range. See
Figure 11-86 .
Figure 11-86 Enable Parameters
To enable the check standard autocalibration, click the Enable CkStd Autocal box.
See
Figure 11-87 . The CMS5000 will calculate the results based on the check
standard calibration method. The CkStdMultiplier box contains the factor used to
