CMS5000 Operating Manual
5.7 Input Methods
In the Input/Output tab, up to four input methods can be selected. An input method
will begin when a relay contact, which has been integrated into the water/air control
system, triggers its start. Also, a method sequence can be selected as an input
method. See
section 5.8 on page 5-25 for information on creating a method
sequence.

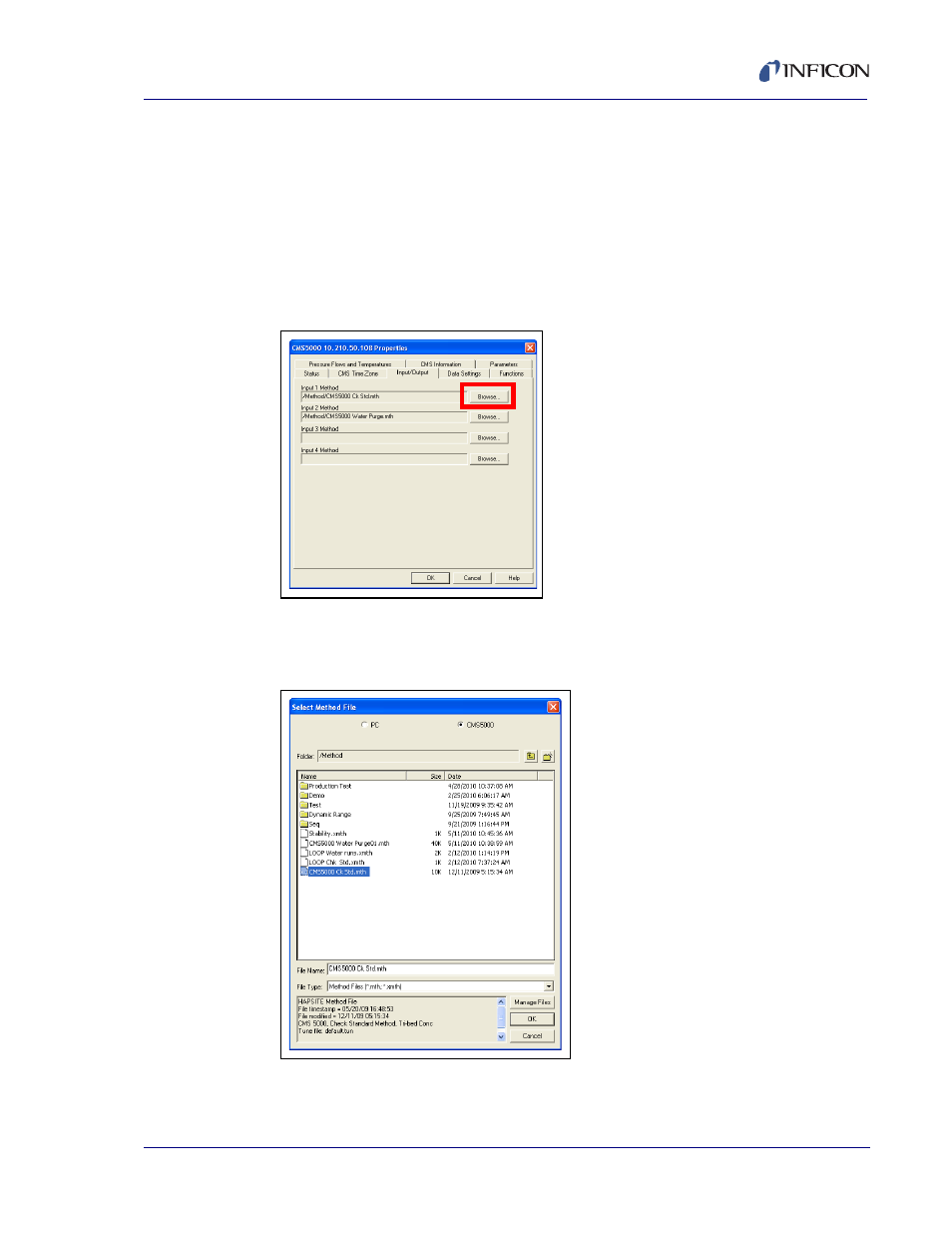

1 To enter input methods, click the appropriate Browse button. See Figure 5-49 .
Figure 5-49 Input Browse Buttons
2 Double-click on the desired method from the method folder. See Figure 5-50 .
Figure 5-50 Choosing Input Method
