CMS5000 Operating Manual

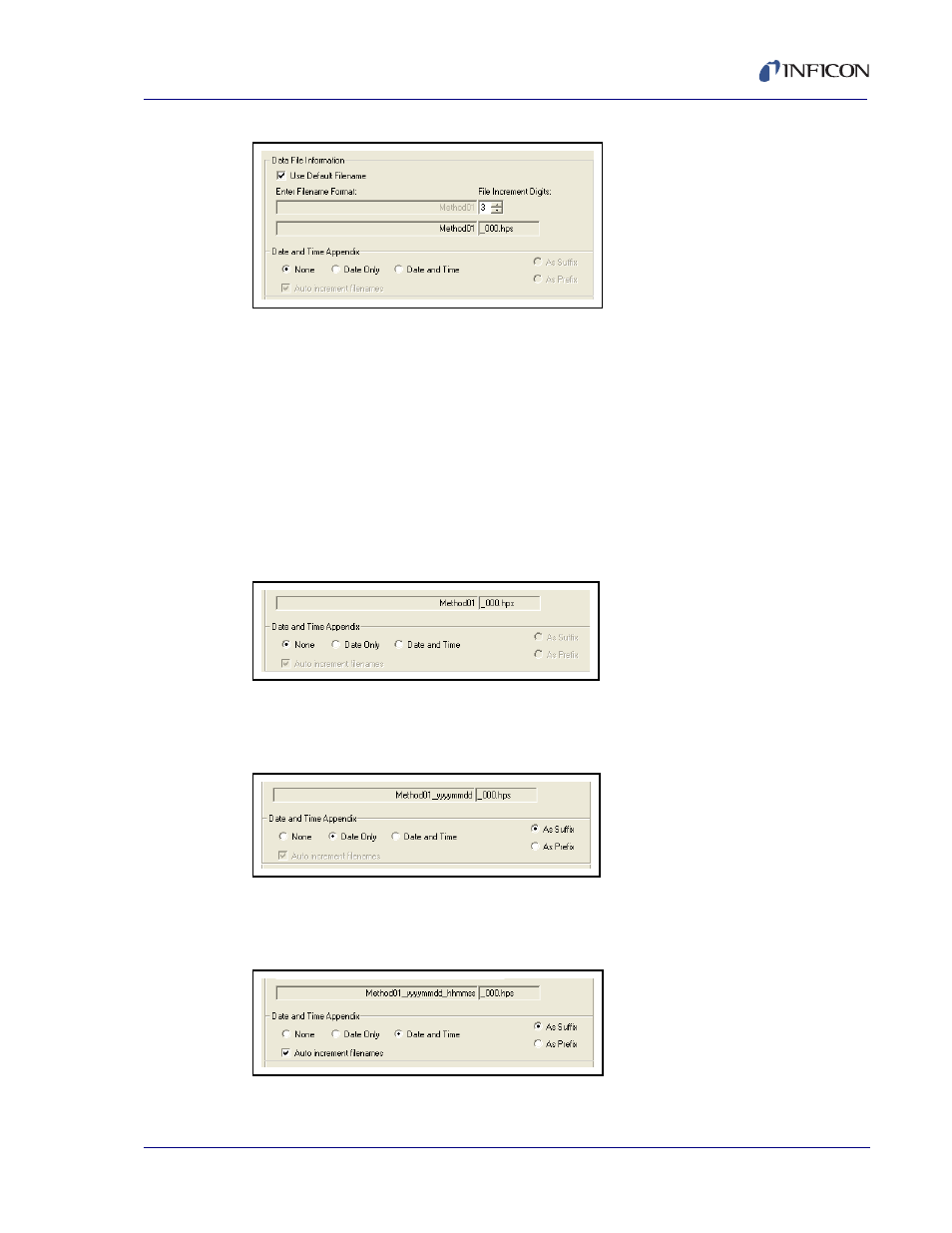

Figure 15-22 Data File Information
File Increment Digits . . . . . . . . . . . Sets the number of digits appended to the
data file name. By default, File Increment
Digits is set to three digits.
15.7.2 Date and Time Appendix
If desired, the data and time can be added to the data file name using the following
options.
None . . . . . . . . . . . . . . . . . . . . . . . . A date and time will not be added to the file
name. See Figure 15-23 .
Figure 15-23 Date and Time Appendix - None Selected
Date Only. . . . . . . . . . . . . . . . . . . . . The date will be added to the file name. See
Figure 15-24 .
Figure 15-24 Date and Time Appendix - Date Selected
Date and Time . . . . . . . . . . . . . . . . . Both the date and the time will be added to
the data file name. See Figure 15-25 .
Figure 15-25 Date and Time Appendix - Date and Time Selected
