Installation Procedure 11

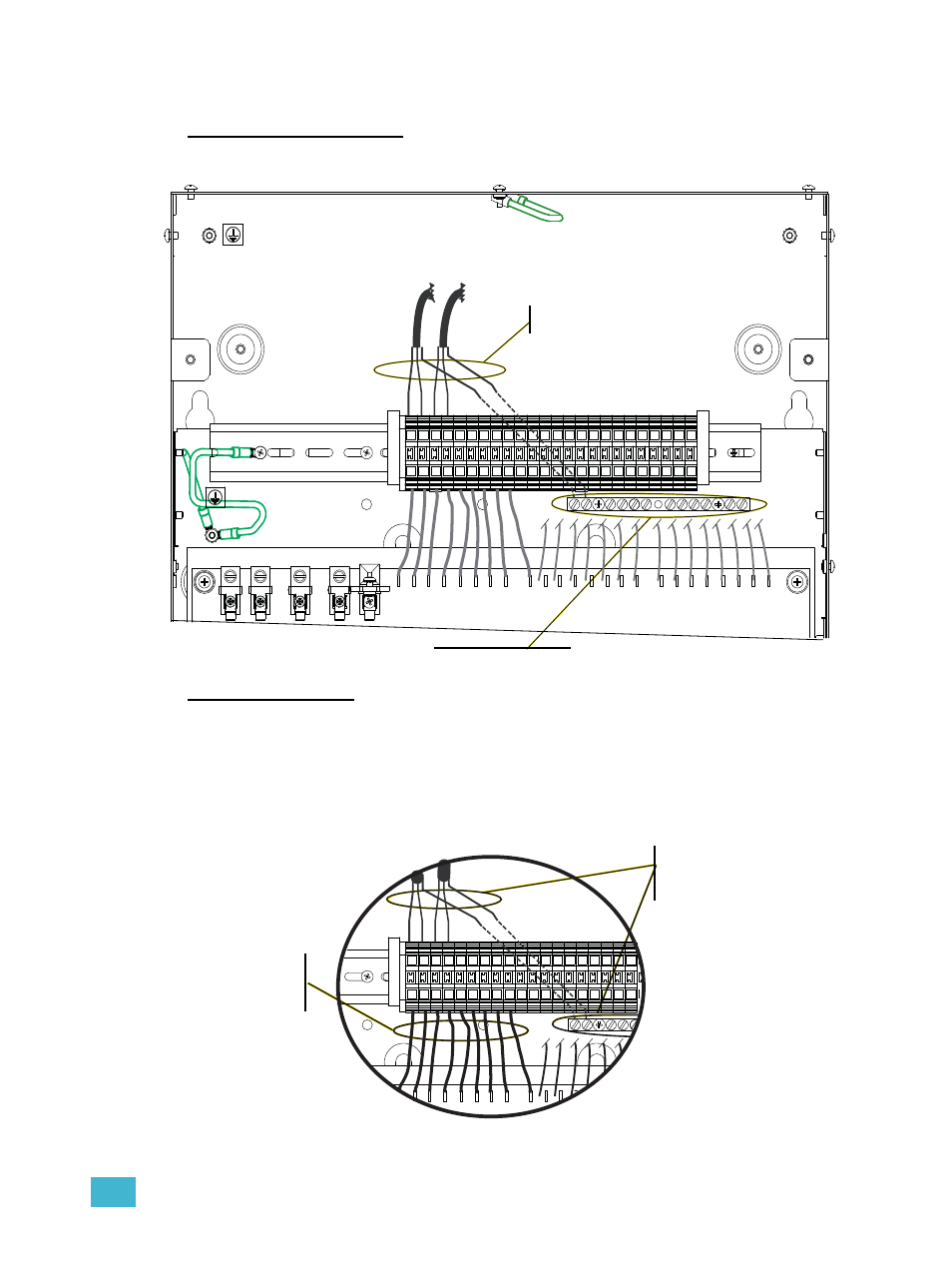

Load Connections
Earth/Ground Connections
Connect the earth/ground conductor for each load to the Earth/Ground Bus.
Neutral Connections
Step 1: Prepare load conductors by stripping 6mm of insulation from the end.
Step 2: Insert the stripped end into the terminal and tighten the screw using a 4.75mm
(3/16”) wide slotted style screwdriver.
• Terminals accept wire between 1.5mm 2 / 16AWG and 6mm 2 / 8AWG.
• Take care not to tighten the load connection onto the wire insulation.
1 N 1 L1 2 N 2 L1 3 N 3 L1 4 N 4 L1 5 N 5 L2 6 N 6 L2 7 N 7 N2 8 N 8 L2 9 N 9 L3 10 N 10 L3 11
N
1
1
L3
12 N 12 L3
N N N N N N N N N N N N
Incoming Load Wiring
Earth/Ground Bus
1 N 1 L1 2 N 2 L1 3 N 3 L1 4 N 4 L1 5 N 5 L2 6 N 6 L2 7 N 7 N2 8 N 8 L2 9 N 9 L3
N N
Insert load
conductors here.
These wires installed by
ETC prior to shipping the
unit.
