10 SmartPack Wall Mount Installation Manual

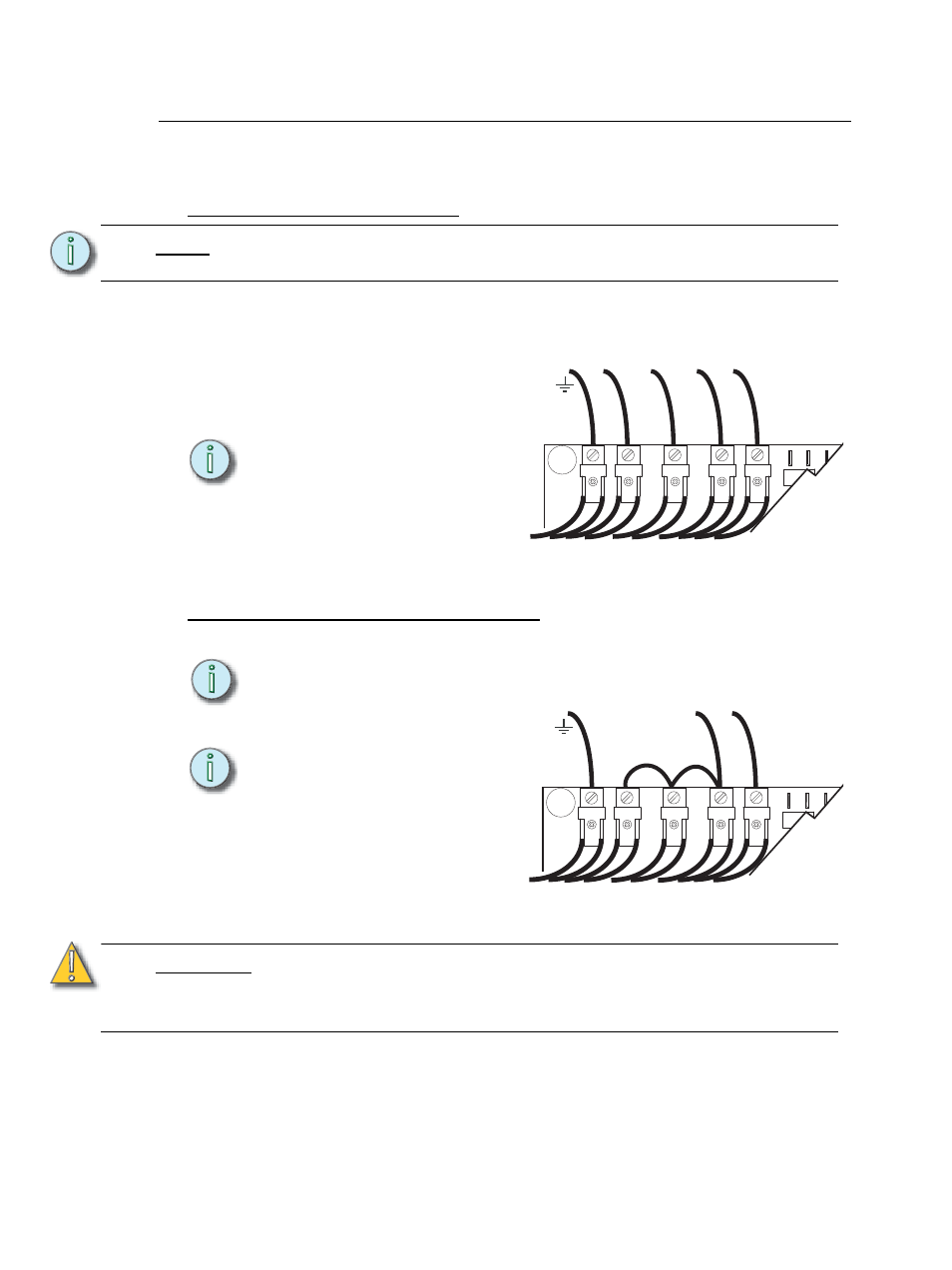

Connect Wiring
Power Supply Connections
Three-Phase Supply Connections
Single-Phase Supply Connections (Europe)
N o t e : If a DIN rail option kit is fitted with RCD and/or terminals, please follow the wiring
instructions supplied with the kit.
C A U T I O N : The SmartPack Wall Mount unit ships with a debris shield to protect the
electronics during installation. Leave this shield in place during installation and
remove only after installation is complete and before energization. If debris falls
into the fan or electronics remove the debris before applying power to the unit.
LO
A D 1
N1 N2
N L1 L2 L3 EARTH
To Circuit Breakers
Input Wiring
Supply cable:
Lugs will accommodate
25mm 2 / 3AWG maximum
stranded cable.
Important Note:
Supply cable gauge must be
coordinated with upstream protective
switchgear.
Earth L3 L2 L1 N
LO
A D 1
N1 N2
N L1 L2 L3 EARTH
To Circuit Breakers
Input Wiring Important Note:
Jumper wires must match
specifications for incoming line wire.
Important Note:
For operation on single phase supplies
at full power, upstream switchgear,
such as RCD's or main breakers, must
be located separately outside the
enclosure. Please contact ETC
technical services for assistance.
Earth L1 N
L3 L2
