ETC Unison Mosaic Show Control User Manual
Page 40
40
NET
NET INSTALLATION
The Unison Mosaic 1+4 port Power-over-Ethernet Switch (NET) is designed to be permanently
installed in a central control room/cupboard or DIN consumer unit for remote deployment.
The enclosure and mounting complies with DIN43880 and EN60715 (35/7.5 rail) respectively.
The unit is 100% solid state and has been qualified to operate in a dry environment within a
temperature range of 0°C to 50°C (32°F to 122°F). Sealed IP65 rated consumer units are
available for outdoor use, please consult your ETC distributor or representative.
NET LAYOUT

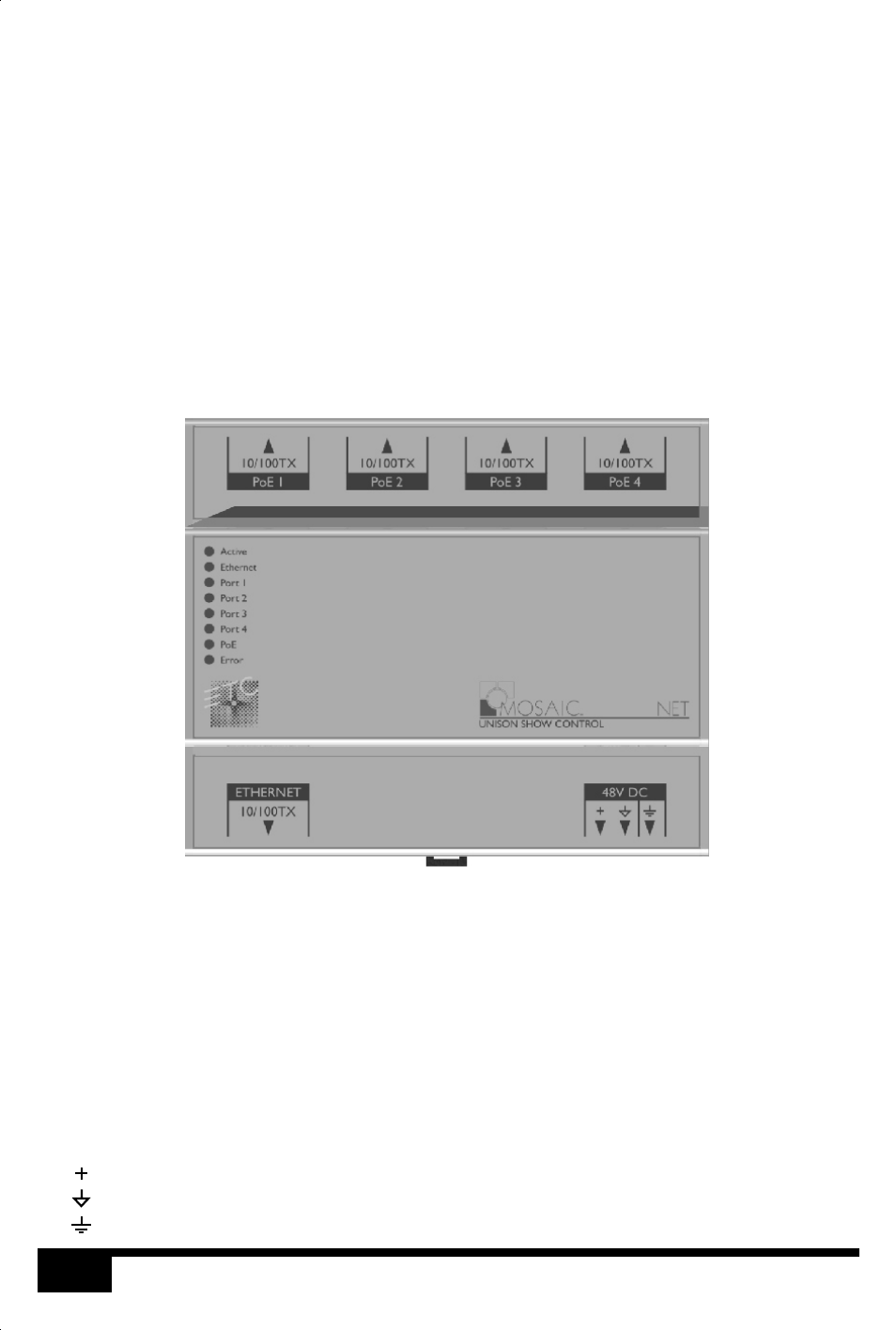

The following drawing illustrates the layout of the Unison Mosaic 1+4 port Power-over-Ethernet
Switch, refer to the following sections for details:
POWER SUPPLY
• DC power (48V)
nd
A limited power source approved to UL60950-1 2 Edition, CAN/CSA C22.2 No. 60950-
nd
1.07 2 Edition MUST be used, with an output voltage of 48V DC.
Such a power supply can be connected directly to the NET using the DC Input connector.
The pins on this connector are marked:
Positive input (48V DC)
Signal ground (0V)
Chassis ground (earth)
STATUS
LEDS
ETHERNET
INPUT
ETHERNET (PoE) OUTPUTS (4)
DC INPUT
(48V)
