INSTALLATION, OPERATION AND MAINTENANCE MANUAL
61
www.erico.com

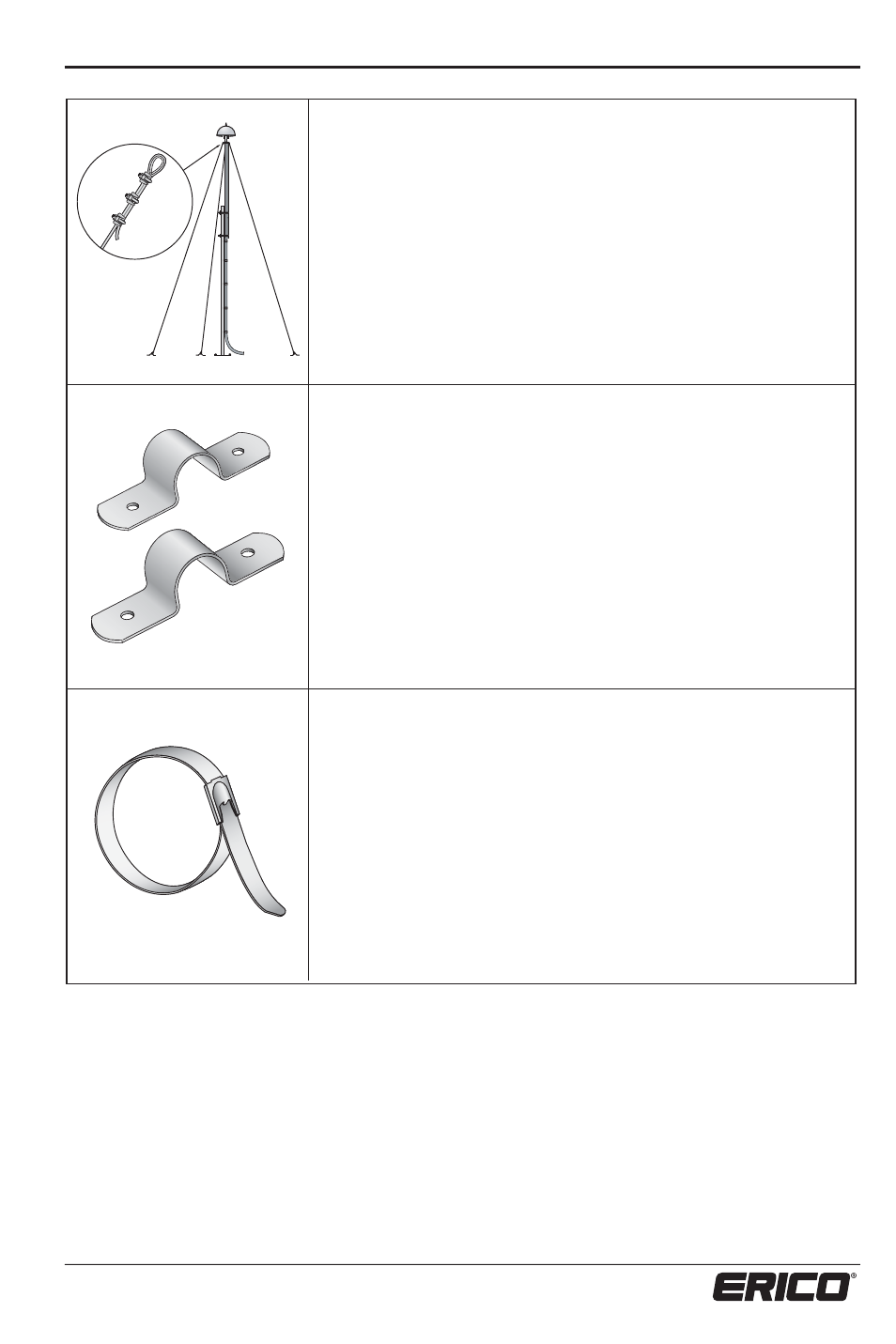

Guy Kit
Purpose designed guying kits for anchoring from a guy ring or
inline coupling. Each kit comes complete with six stainless steel
thimbles, plus 18 guying grips per kit. Refer to pages 44 and 45
for more detail.
4 m Guy Kit 7 m Guy Kit
Guy Diameter: 4 mm ( 5 /
32
in.) 5 mm ( 3 /
16
in.)
Actual Guy Length: 6 m (20 1 /
2
ft.) 10 m (34 ft.)
Guy Tensile Strength: 430 kg (946 lb.) 560 kg (1232 lb.)
Stainless Steel Cable Tie
Purpose designed cable ties for securing of ERITECH ERICORE
downconductor to structures.
Length: 521 mm (20 1 /
2
in.)
Width: 7.9 mm ( 5 /
16
in.)
Material: Stainless Steel
Maximum Bundle Diameter: 152 mm (6 in.)
Minimum Loop Tensile Strength: 250 lbs.
ERITECH ® ERICORE Downconductor Saddles
Purpose designed saddles for securing of downconductor to
structure.
Material:
Stainless Steel 316
Length: 114.5 mm (4 1 /
2
in.)
Thickness: 1.2 mm ( 1 /
16
in.)
Fixing Hole Diameter: 6 mm ( 4 /
16
in.)
Width: 25.5 mm (1 in.)
